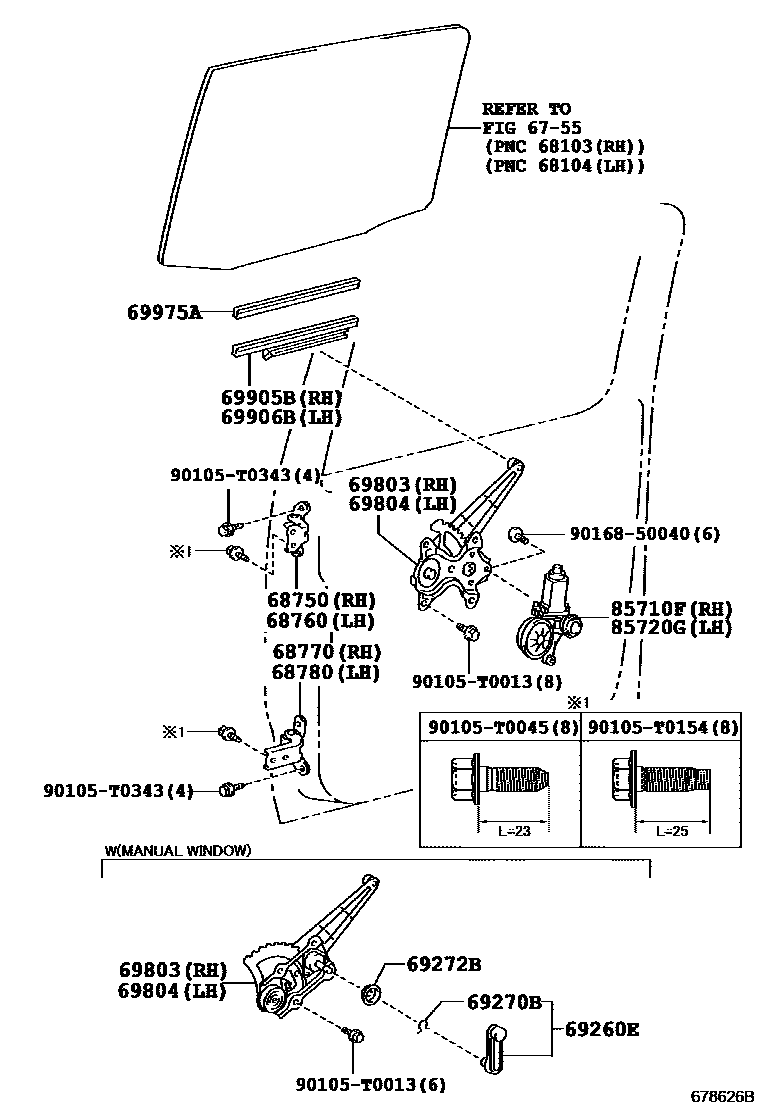

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-02020iGUN12#,135..SADCB201604-202009

main68750-0D030iGUN12#,135..THDCB201506-202005

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-02020iGUN12#,135..SADCB201604-202009

main68760-0D030iGUN12#,135..THDCB201506-202005

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02020iGUN12#,135..SADCB201604-202009

main68770-0D030iGUN12#,135..THDCB201506-202005

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02020iGUN12#,135..SADCB201604-202009

main68780-0D030iGUN12#,135..THDCB201506-202005

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-0K040-C0×2iGUN125..X201604-202009

BLACK,TRIM2#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52152iGUN125..X201604-202009

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-02022×2iGUN125..X201604-202009

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0K110iGUN12#,135..THDCB201506-202005

main69803-0K120iGUN12#,135..SADCB..(H,M,S)201604-202009

main69830-0K210iGUN125..X201604-202009

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0K110iGUN12#,135..THDCB201506-202005

main69804-0K120iGUN12#,135..SADCB..(H,M,S)201604-202009

main69840-0K210iGUN125..X201604-202009

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0K070iGUN12#,135..THDCB201506-202005

main69905-0K080iGUN12#,135..SADCB201604-202009

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0K070iGUN12#,135..THDCB201506-202005

main69906-0K080iGUN12#,135..SADCB201604-202009

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D130×2iGUN12#,135..THDCB201506-202005

main69975-0K050×2iGUN12#,135..SADCB201604-202009

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0K180iGUN12#,135..(SADCB,THDCB)..(M,S)201506-202009

main85720-0K270iGUN12#..H201506-202009

85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0K180iGUN12#,135..(SADCB,THDCB)..(M,S)201506-202009

main85710-0K270iGUN12#..H201506-202009

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0154

main90105-T0154

90105T0343

main90105-T0343

9016850040

main90168-50040

20 parts on this diagram · 2 diagrams in section
