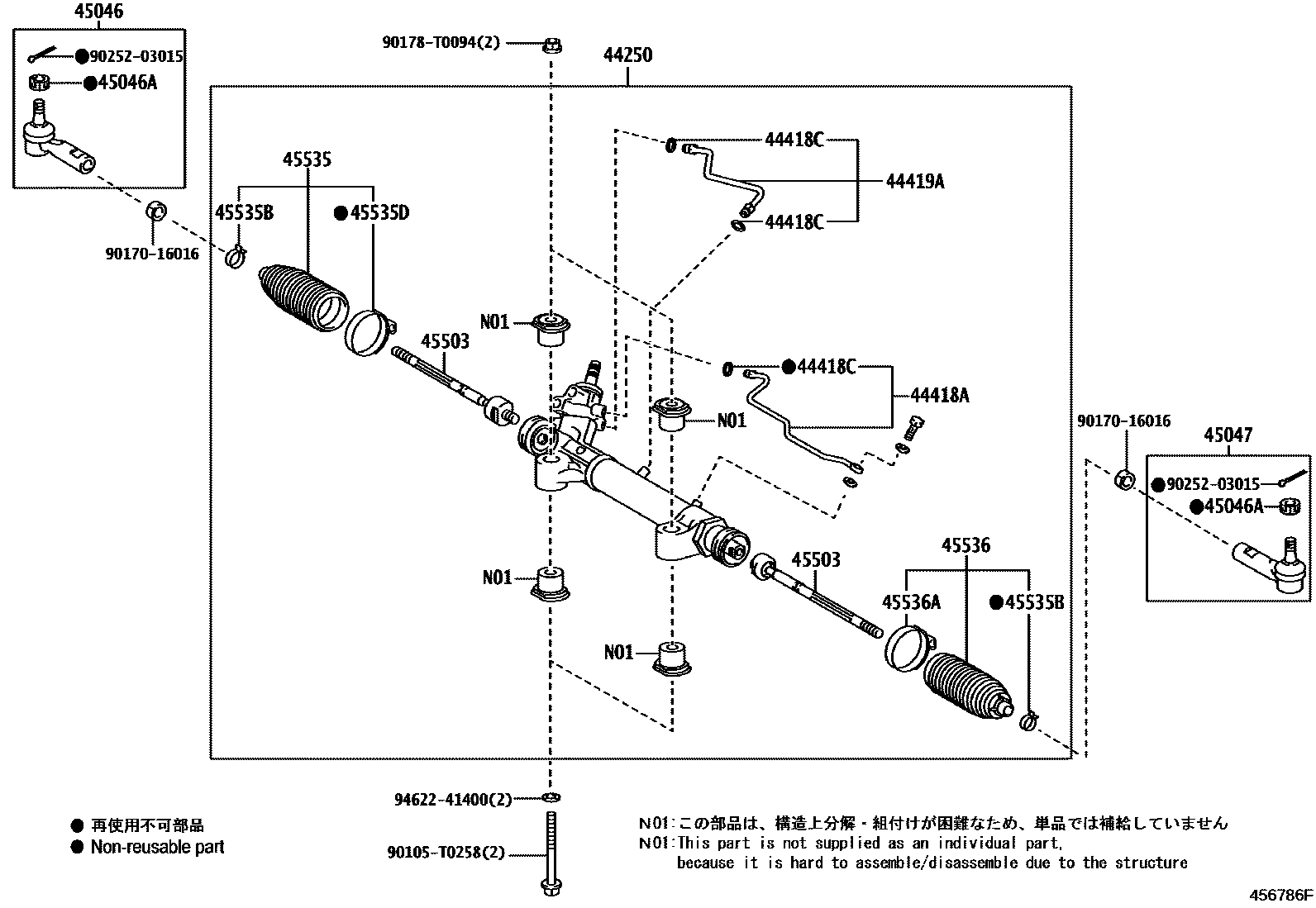

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0K720iGUN125..RHD201604-201909

main44250-0K721iGUN125..RHD201910-202009

main44250-0K730iGUN12#,135..THDCB201506-201909

main44250-0K731iGUN12#,135..THDCB201910-202005

main44250-0K740×2iGUN135..IV3;GUN135..SASCB..X;GUN125..LHD..(SASCB,SAXTR)201604-201905

main44250-0K741iGUN125,135..LHD..(SADCB,SASCB,SAXTR)201910-202009

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-0K260iGUN125..RHD201604-202009

main44418-0K270iGUN12#,135..THDCB201506-202005

main44418-0K280×2iGUN135..IV3;GUN135..SASCB..X;GUN125..LHD..(SASCB,SAXTR)201604-201905

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-T0032×8iGUN135..SAXTR..X201604-201807

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-0K260iGUN125..RHD201604-202009

main44419-0K270iGUN12#,135..THDCB201506-202005

main44419-0K280iGUN135..X..DCRE;GUN12#..LHD..SADCB..HDCR;GUN125..LHD..(SADCB,SASCB,SAXTR)..DCRE;GUN135..(SADCB,SASCB,SAXTR)..(M,S)..CBU201604-202009

45046END SUB-ASSY, TIE ROD, RH

main45046-09800×2iGUN135..SAXTR..X201604-201807

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0002×2iGUN135..SAXTR..X..CBU201807-202009

45047END SUB-ASSY, TIE ROD, LH

main45046-09800iGUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE201506-202009

45503END SUB-ASSY, STEERING RACK

main45503-0K130×2iGUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE201506-202009

45535BOOT, STEERING RACK, NO.1

main45535-09390iGUN12#,135..THDCB201506-202005

main45535-09410iGUN135..SAXTR..X..CBU201807-202009

45535BCLIP(FOR STEERING RACK BOOT)

main90466-T0004×2iGUN12#,135..THDCB201506-202005

main90466-T0005×2iGUN125..RHD;GUN135..X..DCRE;GUN12#..LHD..SADCB..HDCR;GUN125..LHD..(SADCB,SASCB,SAXTR)..DCRE;GUN135..(SADCB,SASCB,SAXTR)..(M,S)..CBU201604-202009

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0K030iGUN12#,135..THDCB201506-202005

main45538-0K040×2iGUN135..SAXTR..X201604-201807

45536BOOT, STEERING RACK, NO.2

main45535-09390iGUN12#,135..THDCB201506-202005

main45535-09410iGUN125..RHD;GUN135..X..DCRE;GUN12#..LHD..SADCB..HDCR;GUN125..LHD..(SADCB,SASCB,SAXTR)..DCRE;GUN135..(SADCB,SASCB,SAXTR)..(M,S)..CBU201604-202009

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0K030iGUN12#,135..THDCB201506-202005

main45538-0K040iGUN135..SAXTR..X..CBU201807-202009

90105T0258

main90105-T0258

9017016016

main90170-16016

90178T0094

main90178-T0094

9025203015

main90252-03015

9462241400

main94622-41400

18 parts on this diagram · 2 diagrams in section
