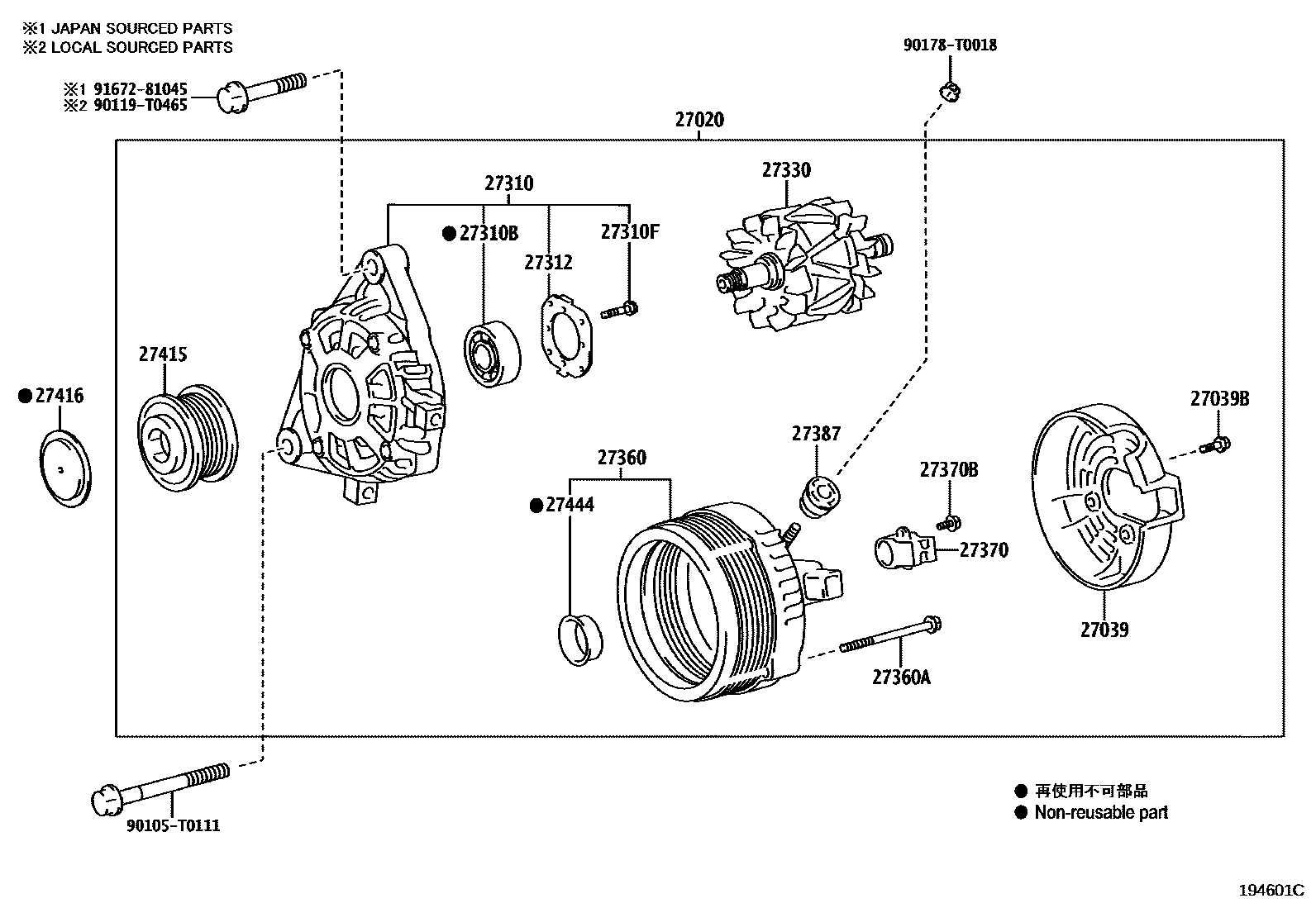

ALTERNATOR
27020ALTERNATOR ASSY
12V 100A
main27060-0L110supersedes 27060-0L190i2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN125..SADCB,SASCB,SAXTR201506-201905
12V 100A
main27060-0L190i1GDFTV..GUN126..THDCB;2GDFTV..GUN135..THDCB..6F;2GDFTV..GUN125..THDCB..6F..M; 2GDFTV..GUN125..THDCB..6F..S201506-201802
12V 80A; 12V 80A,RUSSIA & UKRAINE SPEC
main27060-0L290supersedes 27060-0L280i1GDFTV..GUN126..THDCB; 2GDFTV..GUN125,135..THDCB..HDCR; 2GDFTV..GUN125..THDCB..6F..M..HDCR201802-202005
12V 100A; 12V 100A,RUSSIA & UKRAINE SPEC&STEERING WHEEL-LEATHER & WITH(STEERING HEATER); 12V 100A,STEERING WHEEL-LEATHER & WITH(STEERING HEATER)
12V 90A,RUSSIA & UKRAINE SPEC,BOSCH; 12V 90A,TURKEY SPEC(EURO 5 REGULATION),BOSCH
12V 80A,TURKEY SPEC(EURO 5 REGULATION)
12V 130A,TOYOTA STOP & START SYSTEM-WITH
27039COVER, ALTERNATOR REAR END
main27039-0V220supersedes 27039-0M100i2GDFTV..GUN125..H,S,X;2GDFTV..GUN125,135..6FC..M;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125..THDCB..6F..M..DCRE;2GDFTV..GUN125..(SADCB,SAXTR)..6F..M;2GDFTV..GUN135..(SAXTR,THDCB)..6F..DCRE201506-202009
TOYOTA STOP & START SYSTEM-WITH
27039BBOLT(FOR ALTERNATOR REAR END COVER)
TOYOTA STOP & START SYSTEM-WITH
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-0L140supersedes 27310-0L220i2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN125..SADCB,SASCB,SAXTR201506-201905
main27310-0L220i1GDFTV..GUN126..THDCB;2GDFTV..GUN135..THDCB..6F;2GDFTV..GUN125..THDCB..6F..M; 2GDFTV..GUN125..THDCB..6F..S201506-201802
RUSSIA & UKRAINE SPEC
main27310-0L320supersedes 27310-0L310i2GDFTV..GUN135..DCRE;2GDFTV..GUN125..THDCB;2GDFTV..GUN135..THDCB..HDCR;2GDFTV..GUN125..(SADCB,SASCB,SAXTR)..DCRE201802-202009
RUSSIA & UKRAINE SPEC
TOYOTA STOP & START SYSTEM-WITH
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90068-10040i1GDFTV..GUN126..THDCB;2GDFTV..GUN135..THDCB..6F;2GDFTV..GUN125..THDCB..6F..M; 2GDFTV..GUN125..THDCB..6F..S201506-201802
RUSSIA & UKRAINE SPEC
main90068-10050supersedes 90068-10047i2GDFTV..GUN135..DCRE;2GDFTV..GUN125..THDCB;2GDFTV..GUN135..THDCB..HDCR;2GDFTV..GUN125..(SADCB,SASCB,SAXTR)..DCRE201802-202009
RUSSIA & UKRAINE SPEC
TOYOTA STOP & START SYSTEM-WITH
27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)
main90068-00022×4i1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB201506-202009
TOYOTA STOP & START SYSTEM-WITH
27312PLATE, RETAINER
TOYOTA STOP & START SYSTEM-WITH
27330ROTOR ASSY, ALTERNATOR
main27330-0L140supersedes 27330-0M100i2GDFTV..GUN125..(H,S,X)..HDCR;2GDFTV..GUN135..SAXTR..S..HDCR;2GDFTV..GUN125,135..6FC..M..HDCR;2GDFTV..GUN135..(SADCB,SASCB)..HDCR;2GDFTV..GUN125..(SADCB,SAXTR)..6F..M..HDCR201506-202005
TOYOTA STOP & START SYSTEM-WITH
27360COIL ASSY, ALTERNATOR
main27360-0L140supersedes 27360-0L220i2GDFTV..GUN135..THDCB..6F..HDCR;2GDFTV..GUN125..THDCB..6F..M..HDCR201802-202005
TOYOTA STOP & START SYSTEM-WITH
27360ABOLT(FOR ALTERNATOR COIL)
TOYOTA STOP & START SYSTEM-WITH
27370HOLDER ASSY, ALTERNATOR BRUSH
TOYOTA STOP & START SYSTEM-WITH
27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)
TOYOTA STOP & START SYSTEM-WITH
27387INSULATOR, TERMINAL
TOYOTA STOP & START SYSTEM-WITH
27415PULLEY, ALTERNATOR W/CLUTCH
ISRAEL SPEC(EURO 5 REGULATION)
main27415-0L040i2GDFTV..GUN125,135..LHD..SADCB..6F..M; 2GDFTV..GUN125..LHD..SADCB..6F..M; 2GDFTV..GUN125..LHD..SADCB..6FC;2GDFTV..GUN125..LHD..SADCB..S..CBU201604-201710
ISRAEL SPEC(EURO 5 REGULATION),BOSCH; RUSSIA & UKRAINE SPEC,BOSCH; TURKEY SPEC(EURO 5 REGULATION),BOSCH
TOYOTA STOP & START SYSTEM-WITH
27416CAP, ALTERNATOR PULLEY
DENSO
main27416-33010i2GDFTV..GUN125,135..LHD..SADCB..6F..M; 2GDFTV..GUN125..LHD..SADCB..6F..M; 2GDFTV..GUN125..LHD..SADCB..6FC;2GDFTV..GUN125..LHD..SADCB..S..CBU201604-201710
ISRAEL SPEC(EURO 5 REGULATION),BOSCH; RUSSIA & UKRAINE SPEC,BOSCH; TURKEY SPEC(EURO 5 REGULATION),BOSCH
27444PACKING, ALTERNATOR BEARING COVER
TOYOTA STOP & START SYSTEM-WITH
90105T0111
main90105-T0111
90119T0465
main90119-T0465
90178T0018
main90178-T0018
9167281045
main91672-81045
20 parts on this diagram · 2 diagrams in section
