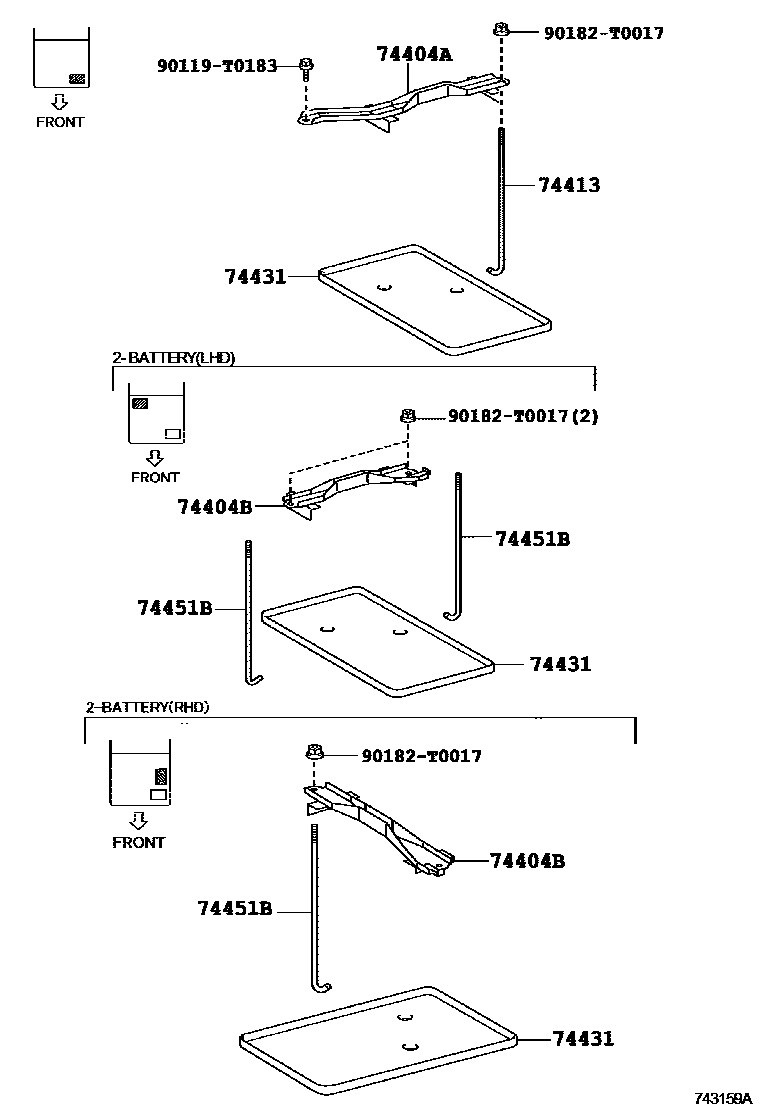

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-0K010iKUN2#,35..THDCB,THSCB,XTR201107-201504

main74404-0K071iKUN26..DCB201108-201512

main74404-0K120iKUN25,35..DCB,SCB201108-201512

74404BCLAMP SUB-ASSY, BATTERY

main74404-0K061iKUN26..RHD201108-201512

main74404-0K240iKUN26..LHD..DCB201108-201512

main74404-0K030iKUN25..THDCB..CBU201308-201504

RUSSIA & UKRAINE SPEC

74413BOLT, BATTERY CLAMP

main74451-0K010iKUN2#,35..THDCB,THSCB,XTR201107-201504

main74451-0K030iKUN2#,35..DCB,SCB201108-201512

74431TRAY, BATTERY

main74431-04050iKUN25,35..THDCB,THSCB,XTR201107-201504

main74431-04070iKUN26..THDCB201107-201504

main74431-0K030iKUN25,35..DCB,SCB201108-201512

main74431-0K040×2iKUN26..DCB201108-201512

74451BBOLT, BATTERY CLAMP

main74451-0K040iKUN26..LHD..DCB; KUN26..RHD201108-201512

main74451-0K020×2iKUN25..THDCB..CBU201308-201504

RUSSIA & UKRAINE SPEC

90119T0183

main90119-T0183

90182T0017

main90182-T0017

7 parts on this diagram · 1 diagram in section
