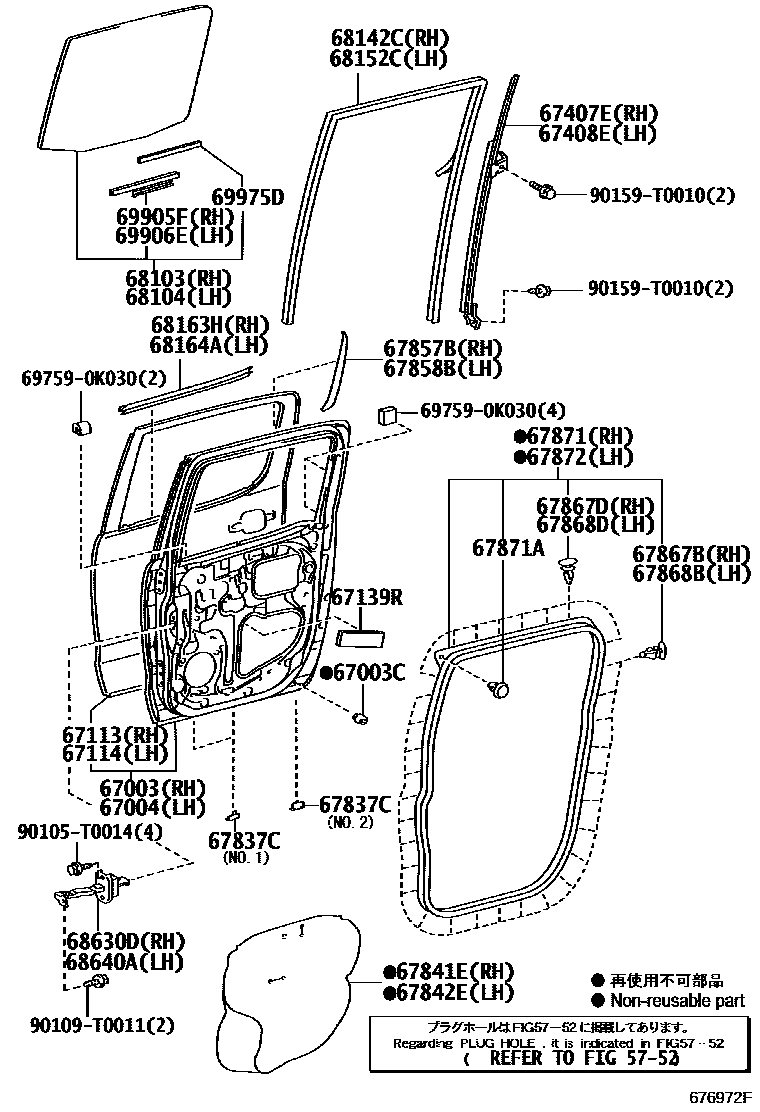

REAR DOOR PANEL & GLASS
5752HOLE PLUG
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67837CSEAL, REAR DOOR DUST PROOF
NO.1:REFER ILLUST.
NO.1 & NO.2
NO.1 & NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
(L)
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
(L)
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
(L)
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=3.1,GREEN
*TEM,T=3.1,PRIVACY
*TEM,T=3.1,PRIVACY
*TEM,T=3.1,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.1,GREEN
*TEM,T=3.1,PRIVACY
*TEM,T=3.1,PRIVACY
*TEM,T=3.1,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975DFILLER, REAR DOOR GLASS CHANNAL
697590K030SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-0K030
90105T0014
main90105-T0014
90109T0011
main90109-T0011
90159T0010
main90159-T0010
36 parts on this diagram · 2 diagrams in section
