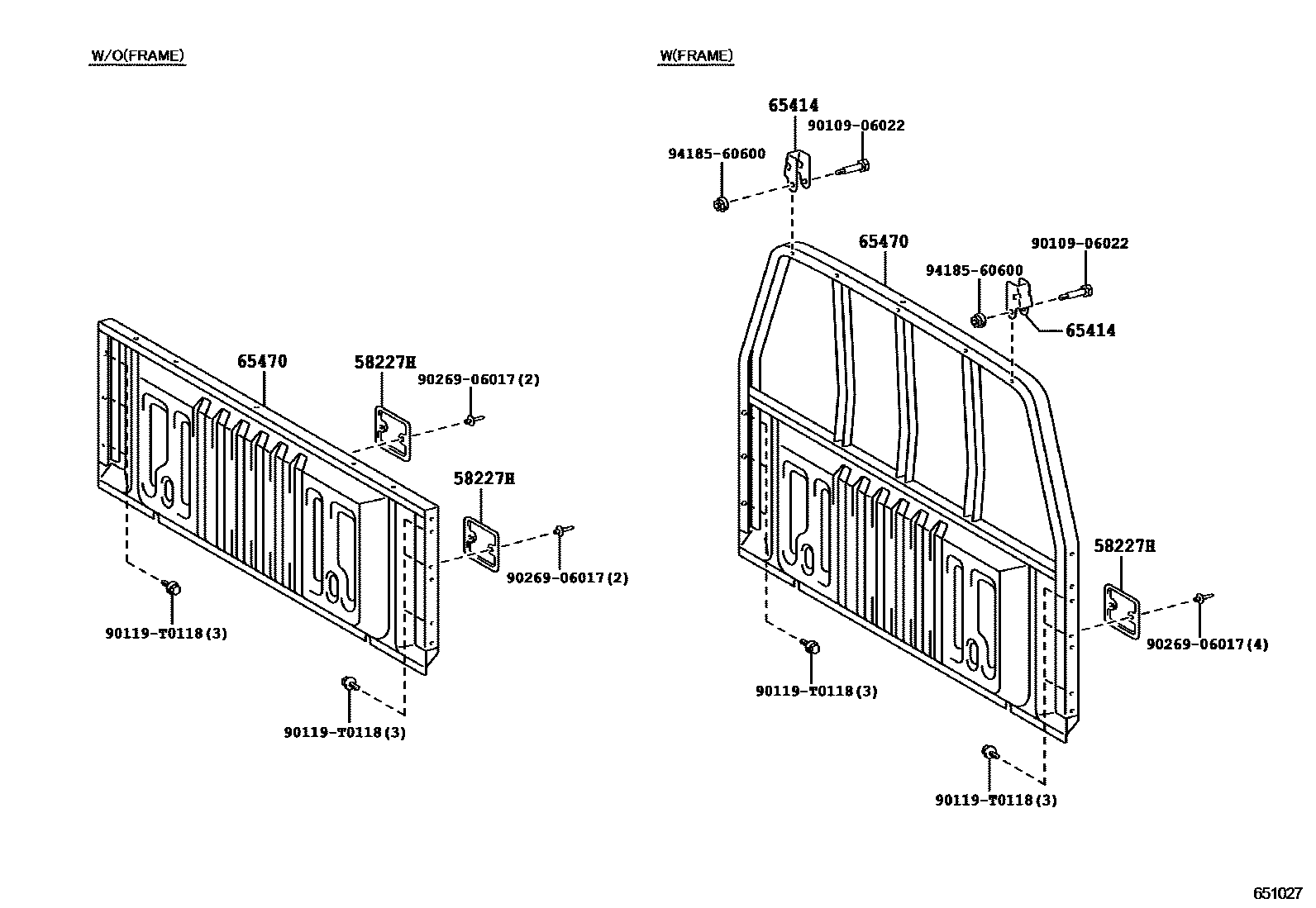

REAR BODY GUARD FRAME & TAIL GATE

0001 1HEADER BOARD & GUARD FRAME 0002 1TAIL GATE(LATCH TYPE) 0003 1TAIL GATE(LOCK TYPE)

58227HCOVER, HEADER PANEL, NO.1

main58227-0K030iKUN2#,35..CBU201107-201506

main58227-0K031iKUN2#,35..CBU201507-201512

65414STOPPER, GUARD FRAME

main65414-0K010iKUN25..RHD..SCB..SR201108-201512

65470BOARD ASSY, HEADER

main65470-0K010iKUN26..LHD..SR;KUN25,35..LHD..CBU;KUN26..LHD..5FC..DLX;KUN2#..RHD..(DCB,XTR)201107-201512

main65470-0K020iKUN26..LHD..5F..DLX;KUN25..RHD..SCB..DLX201108-201512

9010906022

main90109-06022

90119T0118

main90119-T0118

9026906017

main90269-06017

9418560600

main94185-60600

7 parts on this diagram · 3 diagrams in section
