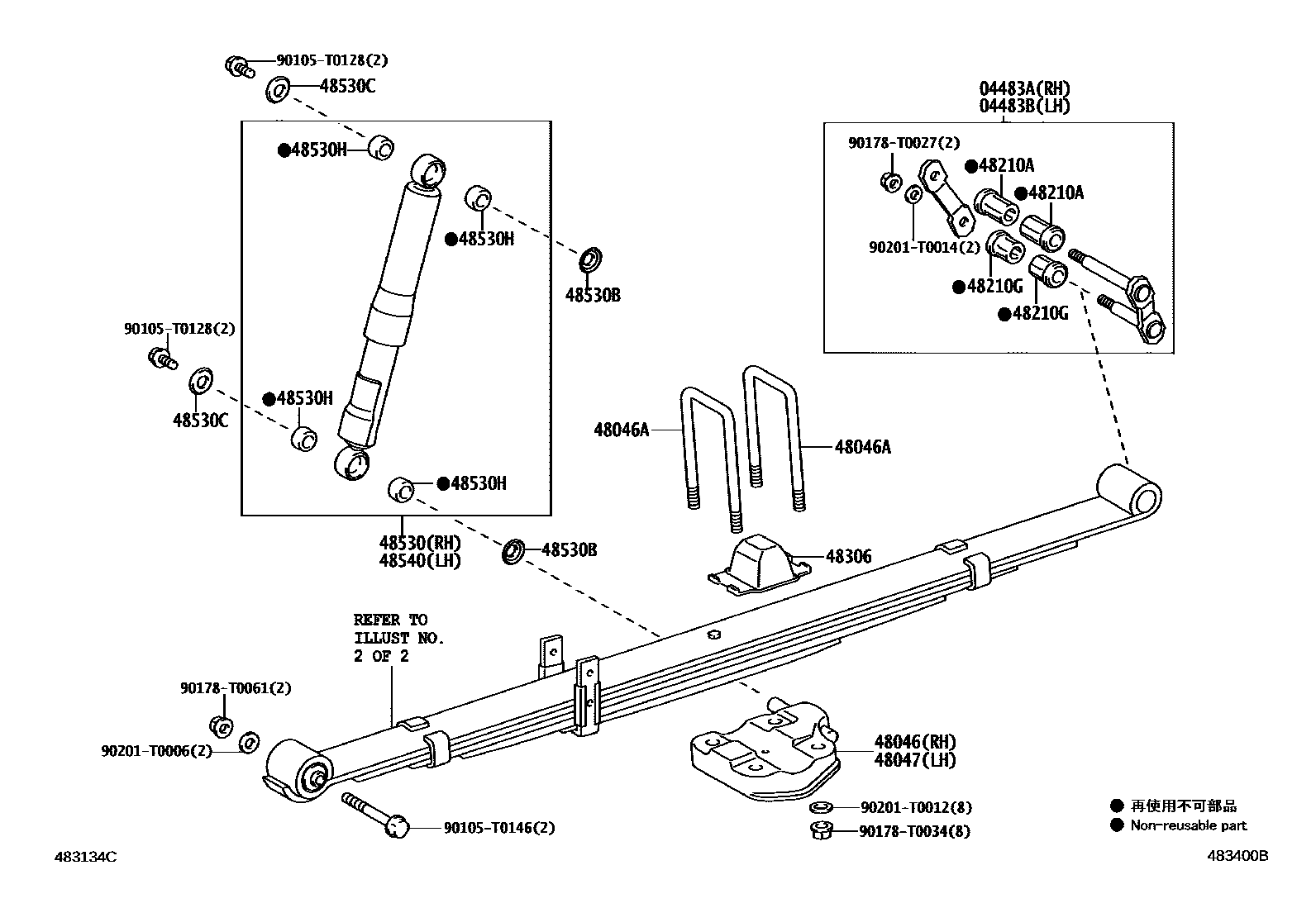

REAR SPRING & SHOCK ABSORBER
04483ASHACKLE KIT, REAR SPRING, RH
04483BSHACKLE KIT, REAR SPRING, LH
48046SEAT SUB-ASSY, SPRING U BOLT, RH
48046ABOLT, U(FOR REAR SPRING)
L=170
48047SEAT SUB-ASSY, SPRING U BOLT, LH
48210SPRING ASSY, REAR RH
5-LEAF,TYPE A:REFER ILLUST.
5-LEAF,TYPE A:REFER ILLUST.
5-LEAF,TYPE A:REFER ILLUST.
5-LEAF,TYPE A:REFER ILLUST.
5-LEAF,TYPE A:REFER ILLUST.
5-LEAF,TYPE A:REFER ILLUST.
5-LEAF,MOROCCO SPEC,TYPE A:REFER ILLUST.
5-LEAF,MOROCCO SPEC,TYPE A:REFER ILLUST.
5-LEAF,MOROCCO SPEC,TYPE C:REFER ILLUST.
main48210-0K251iKUN26..LHD..DCB..SR;KUN25..LHD..DCB..CBU; KUN35..DCB..SR;KUN2#..LHD..DCB..CBU201108-201512
5-LEAF,ISRAEL SPEC,TYPE B:REFER ILLUST.; 5-LEAF,RUSSIA & UKRAINE SPEC,TYPE B:REFER ILLUST.
main48210-0K780iKUN25..THDCB..CBU; KUN25..THDCB..DLX..CBU; KUN26..THDCB;KUN25..THDCB..DLX..CBU201402-201504
5-LEAF,ISRAEL SPEC,TYPE A:REFER ILLUST.; 5-LEAF,MOROCCO SPEC,TYPE A:REFER ILLUST.; 5-LEAF,RUSSIA & UKRAINE SPEC,TYPE A:REFER ILLUST.
5-LEAF,TURKEY SPEC,TYPE A:REFER ILLUST.
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48306BUMPER SUB-ASSY, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-0K100
MARK 48531-0K120
MARK 48531-0K440
MARK 48531-0K160
MARK 48531-0K450
MARK 48531-0K140,MOROCCO SPEC
MARK 48531-0K170,MOROCCO SPEC
main48531-0K180iKUN26..LHD..DCB..SR;KUN25..LHD..DCB..CBU; KUN35..DCB..SR;KUN2#..LHD..DCB..CBU201108-201512
MARK 48531-0K180,ISRAEL SPEC; MARK 48531-0K180,RUSSIA & UKRAINE SPEC
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530HBUSH, REAR SHOCK ABSORBER
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48541-0K020
MARK 48541-0K030
MARK 48541-0K110
MARK 48541-0K060
MARK 48541-0K120
MARK 48541-0K010,MOROCCO SPEC
MARK 48541-0K050,MOROCCO SPEC
MARK 48541-0K070,TURKEY SPEC
90105T0128
main90105-T0128
90105T0146
main90105-T0146
90178T0027
main90178-T0027
90178T0034
main90178-T0034
90178T0061
main90178-T0061
90201T0006
main90201-T0006
90201T0012
main90201-T0012
90201T0014
main90201-T0014
22 parts on this diagram · 5 diagrams in section
