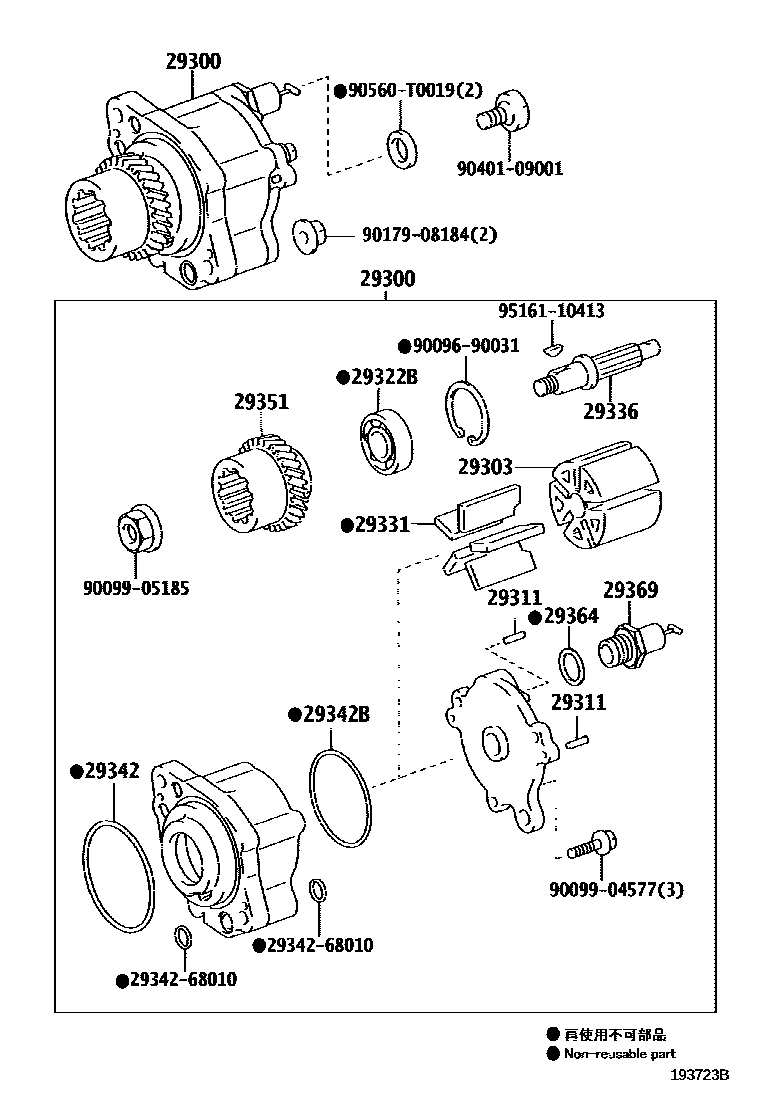

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-67020i1KDFTV,2KDFTV..KUN2#,35201107-201512

*360

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i1KDFTV,2KDFTV..KUN2#,35201107-201512

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i1KDFTV,2KDFTV..KUN2#,35201107-201512

29322BBEARING, VACUUM PUMP

main90099-10185i1KDFTV,2KDFTV..KUN2#,35201107-201512

29331BLADE, VACUUM PUMP, A

main29331-67020×5i1KDFTV,2KDFTV..KUN2#,35201107-201512

29336SHAFT, VACUUM PUMP

main29336-58050i1KDFTV,2KDFTV..KUN2#,35201107-201512

29342PACKING, VACUUM PUMP

main29342-67020i1KDFTV,2KDFTV..KUN2#,35201107-201512

29342BRING, O

main29342-58010i1KDFTV,2KDFTV..KUN2#,35201107-201512

29351GEAR, VACUUM PUMP

main29351-67020i1KDFTV,2KDFTV..KUN2#,35201107-201512

29364WASHER, VACUUM PUMP

main29364-66010i1KDFTV,2KDFTV..KUN2#,35201107-201512

29369VALVE SUB-ASSY, CHECK

main29369-64030i1KDFTV,2KDFTV..KUN2#,35201107-201512

2934268010PACKING, VACUUM PUMP

main29342-68010

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9017908184

main90179-08184

9040109001

main90401-09001

90560T0019

main90560-T0019

9516110413

main95161-10413

19 parts on this diagram · 1 diagram in section
