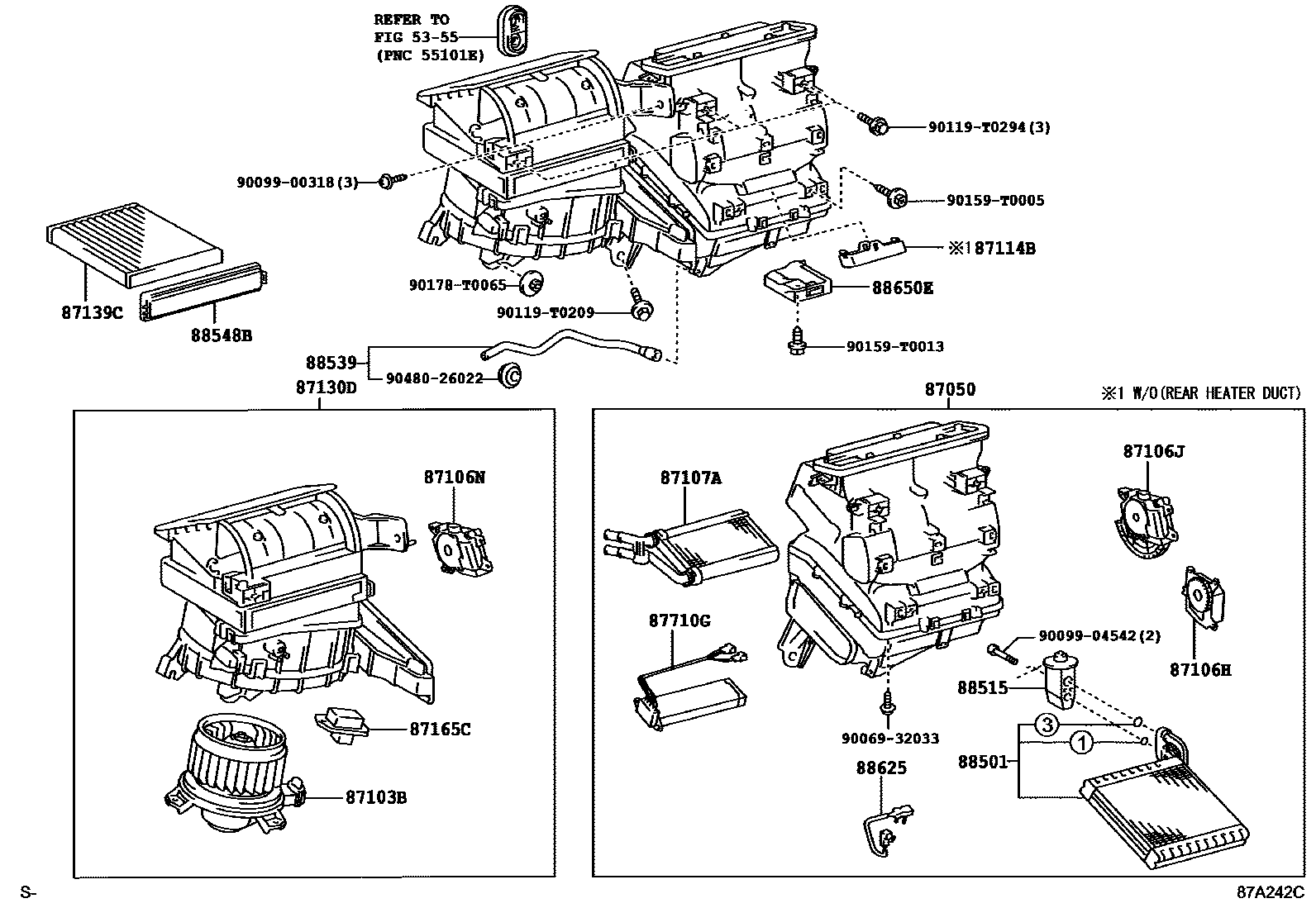

HEATING & AIR CONDITIONING - COOLER UNIT
5355FRONT FENDER APRON & DASH PANEL
87050RADIATOR ASSY, AIR CONDITIONER
main87050-0K411iKUN25..THSCB..IV3;KUN25..LHD..(THDCB,XTR);KUN15,26..LHD..(THDCB,THSCB,XTR)201008-201107
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC&SINGLE AIR CONDITIONER
COLD AREA SPEC&SINGLE AIR CONDITIONER
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
COLD AREA SPEC
COLD AREA SPEC&SINGLE AIR CONDITIONER
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
COLD AREA SPEC
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
87103BMOTOR SUB-ASSY, BLOWER W/FAN
main87103-0K200iKUN25..THSCB..IV3;KUN25..LHD..(THDCB,XTR);KUN15,26..LHD..(THDCB,THSCB,XTR)200808-201107
COLD AREA SPEC; COLD AREA SPEC&SINGLE AIR CONDITIONER
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
87107AUNIT SUB-ASSY, HEATER RADIATOR
main87107-02290iKUN15,25..RHD..(THDCB,THSCB,XTR); KUN25..THSCB..IV3;KUN25..LHD..(THDCB,XTR);KUN15,26..LHD..(THDCB,THSCB,XTR)201008-201107
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
87114BCOVER, HEATER
87130DBLOWER ASSY
main87130-0K113iKUN25..THSCB..IV3;KUN25..LHD..(THDCB,XTR);KUN15,26..LHD..(THDCB,THSCB,XTR)200808-201107
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
COLD AREA SPEC; COLD AREA SPEC&SINGLE AIR CONDITIONER
COLD AREA SPEC; COLD AREA SPEC&SINGLE AIR CONDITIONER
COLD AREA SPEC
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
87139CFILTER, CLEAN AIR
87165CCONTROL, BLOWER MOTOR
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
87710GQUICK HEATER ASSY
COLD AREA SPEC; COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
main87710-0K070iKUN25..THSCB..IV3;KUN25..LHD..(THDCB,XTR);KUN15,26..LHD..(THDCB,THSCB,XTR)201008-201107
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE; COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
COLD AREA SPEC&AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE; COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
main88501-0K090iKUN26..THDCB;KUN25..LHD..(THDCB,THSCB);KUN15,25..RHD..(THDCB,THSCB,XTR);KUN15..LHD..(THDCB,THSCB,XTR)..HDCR200507-200808
88515VALVE, COOLER EXPANSION
main88515-0K100iKUN26..THDCB;KUN25..LHD..(THDCB,THSCB);KUN15,25..RHD..(THDCB,THSCB,XTR);KUN15..LHD..(THDCB,THSCB,XTR)..HDCR200601-200808
COLD AREA SPEC&SINGLE AIR CONDITIONER
COLD AREA SPEC&SINGLE AIR CONDITIONER
COLD AREA SPEC&SINGLE AIR CONDITIONER
88539HOSE, COOLER UNIT DRAIN, NO.1
88548BCASE, AIR FILTER
main88548-0K020iKUN25..THSCB..IV3;KUN15..LHD..(DCB,SCB);KUN2#..LHD..(DCB,SCB,THDCB,XTR)..(5F,5FC)200808-201108
88625THERMISTOR, COOLER, NO.1
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE; AIR CONDITIONER-SINGLE AIR CONDITIONER
88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1
COLD AREA SPEC
COLD AREA SPEC&SINGLE AIR CONDITIONER
COLD AREA SPEC
COLD AREA SPEC&AIR CONDITIONER-SINGLE AIR CONDITIONER
9006932033
main90069-32033
9009900318
main90099-00318
9009904542
main90099-04542
90119T0209
main90119-T0209
90119T0294
main90119-T0294
90159T0005
main90159-T0005
90159T0013
main90159-T0013
90178T0065
main90178-T0065
9048026022
main90480-26022
27 parts on this diagram · 8 diagrams in section
