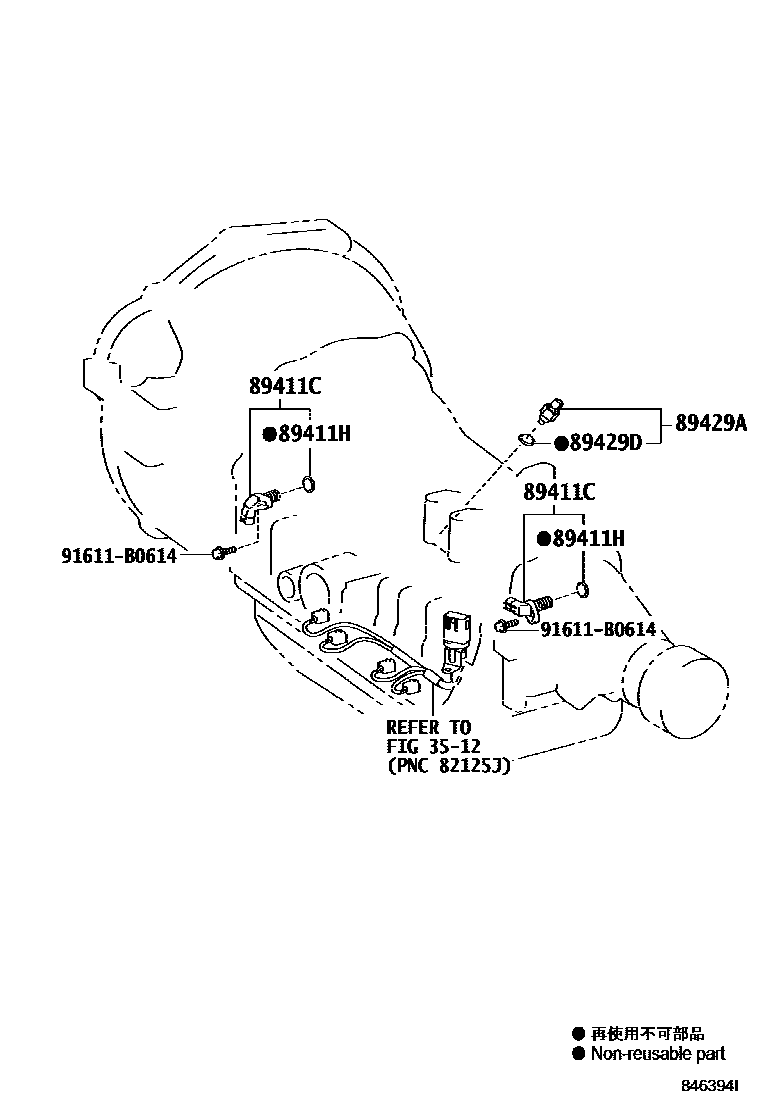

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

89411CSENSOR, SPEED

main89411-50010×2iKUN15,26..4FC200507-200810

89411HRING, O

main90301-11008×2iKUN15,26..4FC200507-200810

89429ASENSOR, TEMPERATURE

main89429-34010iKUN15,26..4FC200507-200810

89429DRING, O(FOR TEMPERATURE SENSOR)

main90301-11006iKUN15,26..4FC200507-200810

91611B0614

main91611-B0614

6 parts on this diagram · 2 diagrams in section
