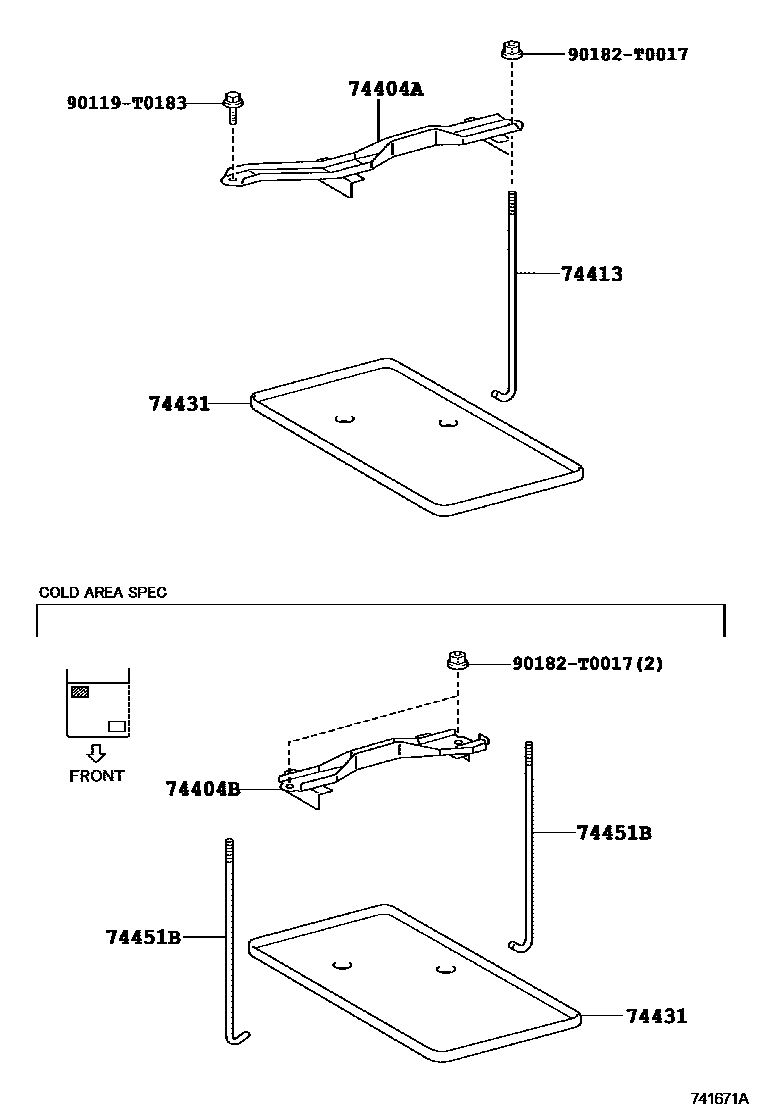

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-0K010iKUN15,2#..THDCB,THSCB,XTR200507-200808

main74404-0K070iKUN15,25..DCB,SCB200507-200702

main74404-0K071supersedes 74404-0K120iKUN15,25..DCB,SCB; KUN26..DCB200810-201108

COLD AREA SPEC

main74404-0K120iKUN26..DCB200702-200810

74404BCLAMP SUB-ASSY, BATTERY

main74404-0K030iKUN15,25..THDCB,THSCB,XTR200507-200808

COLD AREA SPEC

main74404-0K060iKUN15,25..(DCB,SCB)..5F200507-200701

COLD AREA SPEC

main74404-0K061iKUN15,2#..RHD..(DCB,SCB)200810-201108

COLD AREA SPEC

main74404-0K240iKUN15,2#..LHD..(DCB,SCB)200810-201108

COLD AREA SPEC

74413BOLT, BATTERY CLAMP

main74451-0K010iKUN15,2#..THDCB,THSCB,XTR200507-200808

main74451-0K030iKUN15,2#..DCB,SCB200507-200810

74431TRAY, BATTERY

main74431-04050iKUN26..THDCB200808-201107

main74431-0K030iKUN26..DCB200810-201108

main74431-0K040iKUN15,25..(DCB,SCB)..5F; KUN15,25..DCB,SCB200507-200810

COLD AREA SPEC

main74431-04070×2iKUN15,25..THDCB,THSCB,XTR200808-201107

COLD AREA SPEC

74451BBOLT, BATTERY CLAMP

main74451-0K020iKUN15,25..LHD..(THDCB,THSCB,XTR); KUN15,25..RHD..(THDCB,THSCB,XTR)200507-200808

COLD AREA SPEC

main74451-0K040iKUN15,2#..LHD..(DCB,SCB); KUN15,2#..RHD..(DCB,SCB)200810-201108

COLD AREA SPEC

90119T0183

main90119-T0183

90182T0017

main90182-T0017

7 parts on this diagram · 2 diagrams in section
