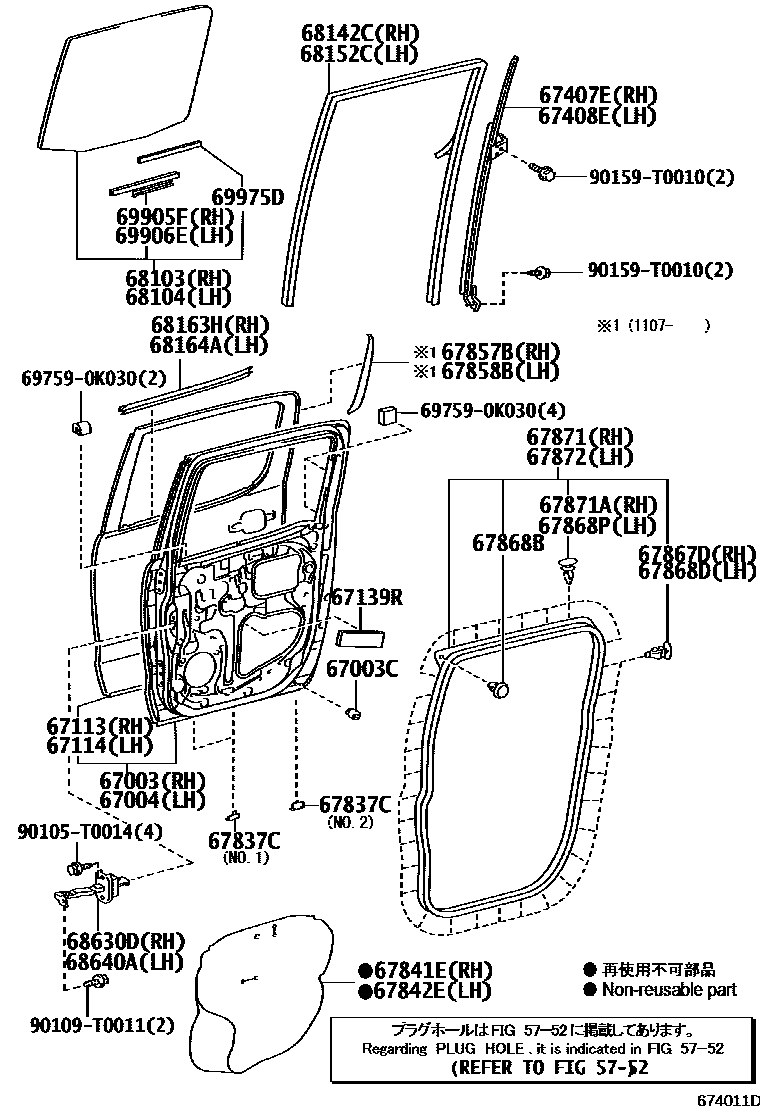

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5752HOLE PLUG

→ Go to FIG 57-52

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0K010iKUN15,2#..THDCB200702-200808

main67003-0K060iKUN15,2#..DCB200507-200810

67003CCUSHION, REAR DOOR PANEL

main90541-09069×2iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200808-201108

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0K010iKUN15,2#..THDCB200808-201107

main67004-0K060iKUN15,2#..DCB200810-201108

67113PANEL, REAR DOOR, OUTER RH

main67113-0K010iKUN15,2#..DCB,THDCB200507-200810

67114PANEL, REAR DOOR, OUTER LH

main67114-0K010iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200808-201108

67139RLINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-0K010×2iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K030×4iKUN15,2#..THDCB201003-201107

NO.1

main67837-71010×4iKUN15,2#..THDCB200808-201002

NO.1

main67837-71020×2iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

NO.2

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0K030supersedes 67841-0K040iKUN15..SR200507-200610

main67841-0K010supersedes 67841-0K020iKUN15,2#..THDCB200702-200808

AUDIO-RADIO LESS 4SPEAKER

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-0K030supersedes 67841-0K040iKUN15..SR200507-200610

main67841-0K010supersedes 67841-0K020iKUN15,2#..THDCB200702-200808

AUDIO-RADIO LESS 4SPEAKER

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-0K020iKUN15,2#..DCB201107-201108

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0K020iKUN15,2#..DCB201107-201108

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×24iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main90467-06084×2iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×24iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

67868PRETAINER, DOOR WEATHERSTRIP, NO.1 LH

main67867-52030×8iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0K011iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

main67871-0K012iKUN15,2#..DCB;KUN2#..LHD..THDCB200912-201108

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-52010×8iKUN15..THDCB;KUN2#..RHD..THDCB200808-201107

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0K011iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

main67872-0K012iKUN15..THDCB;KUN2#..RHD..THDCB200912-201107

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0K010iKUN15,25..THDCB..DLX200808-200811

*TEM,T=3.1,GREEN

main68103-0K020iKUN15,2#..DCB200507-200810

*TEM,T=3.1,GREEN

main68103-0K140iKUN2#..THDCB..SR200808-201107

*TEM,T=3.1,PRIVACY

main68103-0K160iKUN2#..DCB..SR200810-201108

*TEM,T=3.1,PRIVACY

main68103-0K180iKUN15,25..THDCB..DLX200812-201107

*TEM,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0K010iKUN15,2#..THDCB200702-200808

*TEM,T=3.1,GREEN

main68104-0K020iKUN15,25..DCB..DLX200810-201108

*TEM,T=3.1,GREEN

main68104-0K140iKUN2#..THDCB..SR200808-201107

*TEM,T=3.1,PRIVACY

main68104-0K160iKUN2#..DCB..SR200810-201108

*TEM,T=3.1,PRIVACY

main68104-0K180iKUN15,25..THDCB..DLX200812-201107

*TEM,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

68152CRUN, REAR DOOR GLASS, LH

main68152-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH

main68163-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200808-201107

68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH

main68164-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-200810

68630DCHECK ASSY, REAR DOOR, RH

main68630-0K010iKUN15,26..THDCB; KUN25..THDCB200702-200808

main68630-0K020iKUN15,2#..DCB200810-201108

68640ACHECK ASSY, REAR DOOR, LH

main68640-0K010iKUN15,26..THDCB; KUN25..THDCB200702-200808

main68640-0K020iKUN15,2#..DCB200810-201108

69905FCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0K040iKUN25..DCB;KUN15,26..(DCB,THDCB)..(4FC,5F)200507-200810

69906ECHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0K040iKUN25..THDCB200702-200808

69975DFILLER, REAR DOOR GLASS CHANNAL

main69975-0K010×2iKUN25..DCB;KUN15,26..(DCB,THDCB)..(4FC,5F)200507-200810

697590K030SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-0K030

90105T0014

main90105-T0014

90109T0011

main90109-T0011

90159T0010

main90159-T0010

36 parts on this diagram · 2 diagrams in section
