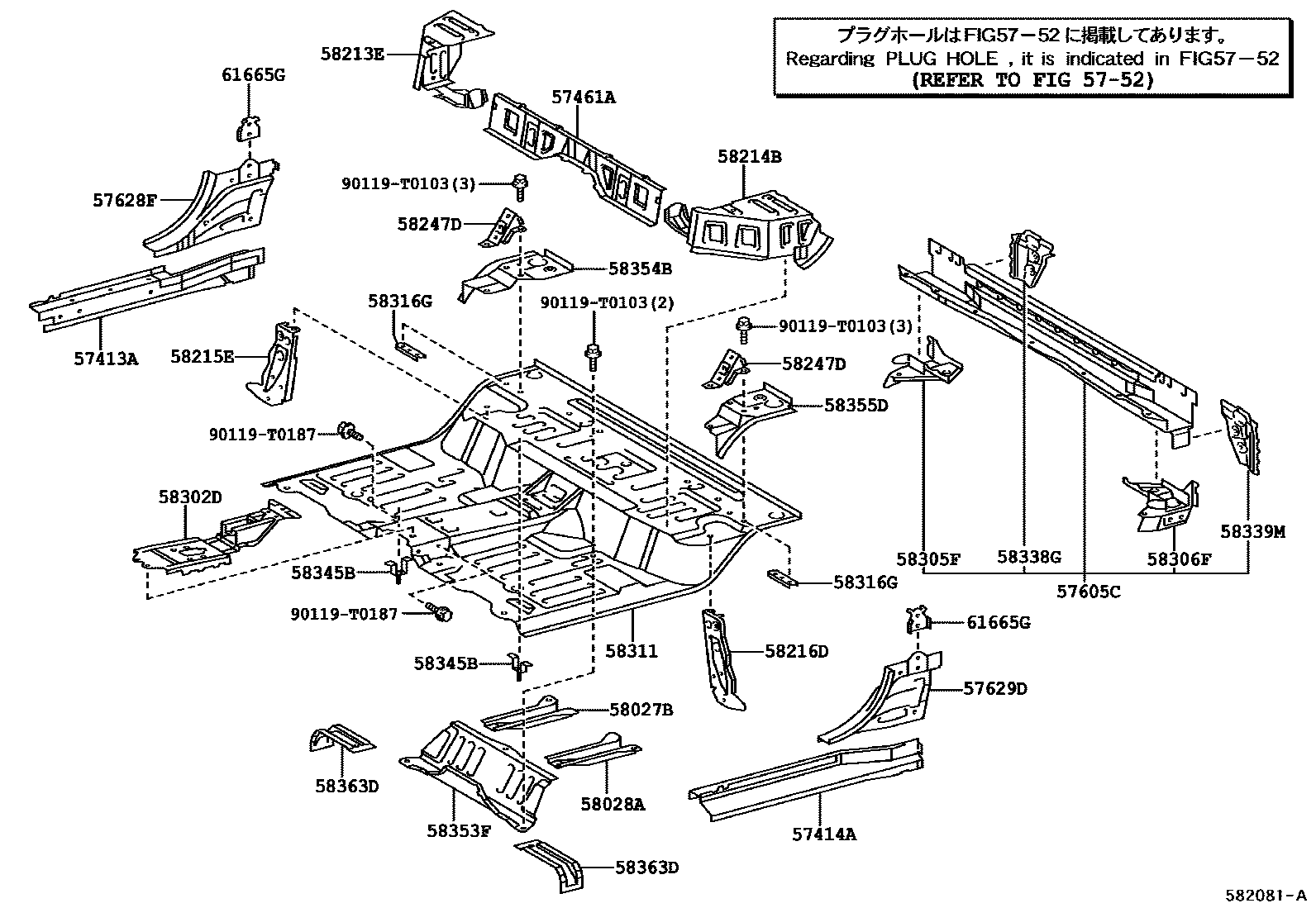

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57403-0K020iKUN15,25..XTR200507-201107

main57413-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200507-201108

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57404-0K020iKUN15,25..XTR200507-201107

main57414-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

57461AMEMBER, CENTER FLOOR CROSS

main57461-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200507-201108

main57605-0K030iKUN15,25..XTR200507-201107

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0K010iKUN15,2#..DCB,THDCB200507-200709

main57628-0K060iKUN15,2#..(DCB,THDCB)..(4FC,5F)200710-201108

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0K010iKUN15,2#..DCB,THDCB200507-200709

main57629-0K060iKUN15,2#..(DCB,THDCB)..(4FC,5F)200710-201108

58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

58028AREINFORCE SUB-ASSY, SEAT BELT ANCHOR, NO.2

main58028-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200507-201108

58213EPANEL, SEAT FLOOR SIDE, RH

main58201-0K010iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200507-201108

main58201-0K020iKUN15,25..XTR200507-200707

main58201-0K021iKUN15,25..XTR200708-201107

58214BPANEL, SEAT FLOOR SIDE, LH

main58202-0K010iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200507-201108

main58202-0K020iKUN15,25..XTR200507-200707

main58202-0K021iKUN15,25..XTR200708-201107

58215EBRACKET, REAR SEAT MOUNTING, RH

main58215-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

58216DBRACKET, REAR SEAT MOUNTING, LH

main58216-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

main58216-0K020iKUN15,25..XTR200507-201107

58247DBRACKET, REAR SEAT HINGE, OUTER RH

main58247-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200507-201108

58302DPANEL SUB-ASSY, REAR FLOOR, FRONT

main58302-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-0K010iKUN15..THDCB;KUN2#..RHD..THDCB200507-201108

58311PAN, REAR FLOOR

main58311-0K020iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200507-201108

main58311-0K100iKUN15,25..XTR200507-201107

58316GRETAINER, REAR SEAT, NO.1

main58316-0K010iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200507-201108

58338GGUSSET, CAB REAR MOUNTING, RR RH

main58338-0K010iKUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)200507-201108

58339MGUSSET, CAB REAR MOUNTING, REAR LH

main58339-0K010iKUN15,2#..(DCB,THDCB,XTR)..(4FC,5F)200507-201108

58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3

main58353-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K010iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200507-201108

main58354-0K020iKUN15,25..XTR200507-201107

58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5

main58355-0K010iKUN2#..LHD..THDCB;KUN15,2#..DCB..(5F,5FC)200507-201108

main58355-0K020iKUN15,25..XTR200507-201107

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

61665GREINFORCEMENT, SEAT BELT ANCHORAGE TO QUATER WHEE HOUSE, RH

main61665-0K010iKUN15,2#..(DCB,THDCB)..(4FC,5F)200507-201108

90119T0103

main90119-T0103

90119T0187

main90119-T0187

28 parts on this diagram · 2 diagrams in section
