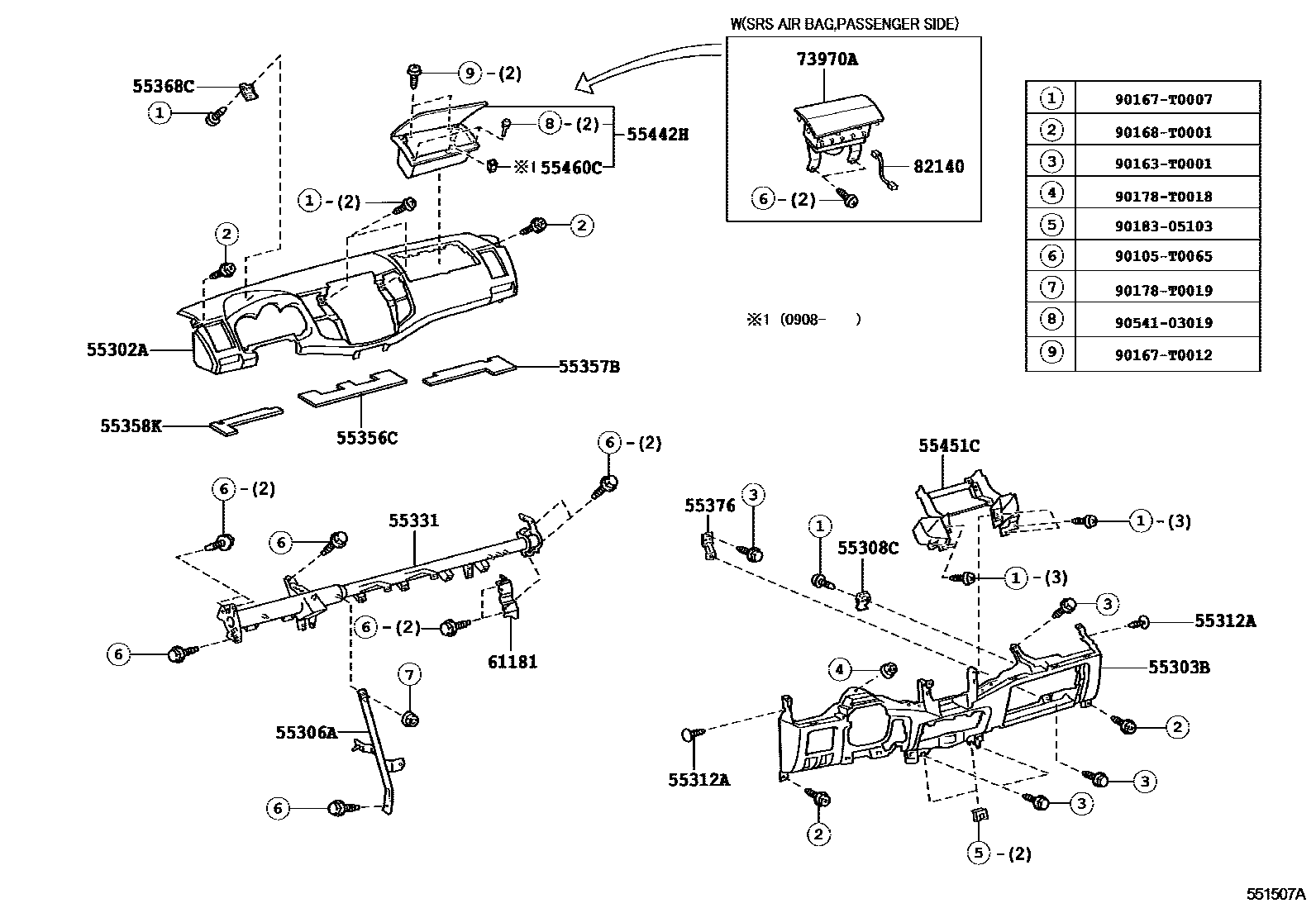

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
IVORY,TRIM0#
GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55312ACLIP, INSTRUMENT PANEL
IVORY,TRIM0#
GRAY,TRIM1#
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-0K220iKUN15,25..RHD..(THDCB,THSCB)..DLX; KUN25..RHD..THDCB..SR; KUN26..RHD..THDCB..5F200808-201107
SRS AIR BAG-WITH(DRIVER & PASSENGER); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
main55330-0K280supersedes 55330-0K240iKUN25..LHD..(DCB,THDCB)..SR; KUN26..LHD..5F;KUN15..LHD..(DCB,SCB);KUN25..LHD..(SCB,THSCB,XTR);KUN25..LHD..(DCB,THDCB)..DLX200808-201108
SRS AIR BAG-WITHOUT
SRS AIR BAG-WITH(DRIVER & PASSENGER)
SRS AIR BAG-WITH(DRIVER & PASSENGER)
SRS AIR BAG-WITH(DRIVER & PASSENGER)
SRS AIR BAG-WITH(DRIVER & PASSENGER)
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
main55330-0K240iKUN15..LHD..(DCB,SCB);KUN25..LHD..(SCB,THSCB,XTR);KUN25..LHD..(DCB,THDCB)..DLX; KUN25..LHD..(DCB,THDCB)..SR; KUN26..LHD..5F200808-201108
SRS AIR BAG-WITH(DRIVER & PASSENGER); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55368CBRACKET, METER MOUNTING
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55442HDOOR, INSTRUMENT PANEL
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
55451CBOX, INSTRUMENT PANEL, NO.1
55460CLOCK ASSY, INSTRUMENT PANEL BOX
61181BRACKET, INSTRUMENT PANEL SIDE
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
main73970-0K011-B0iKUN15,25..RHD..(THDCB,THSCB,XTR)..DLX; KUN25..RHD..THDCB..SR; KUN26..RHD..THDCB200808-201107
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),DK.GRAY,TRIM1#
main73970-0K021-B0iKUN25..LHD..THDCB..DLX;KUN25..LHD..(THSCB,XTR);KUN15..LHD..(THDCB,THSCB,XTR); KUN25..LHD..THDCB..SR; KUN26..LHD..THDCB200808-201107
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),DK.GRAY,TRIM1#
82140WIRE ASSY, INSTRUMENT PANEL
main82140-0K010iKUN15,25..RHD..(THDCB,THSCB)..DLX; KUN25..RHD..THDCB..SR; KUN26..RHD..THDCB200808-201107
SRS AIR BAG-WITH(DRIVER & PASSENGER); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
main82140-0K020iKUN15..LHD..(DCB,SCB);KUN25..LHD..(SCB,THSCB,XTR);KUN25..LHD..(DCB,THDCB)..DLX; KUN25..LHD..(DCB,THDCB)..SR; KUN26..LHD..(5F,5FC)200808-201108
SRS AIR BAG-WITH(DRIVER & PASSENGER); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
90105T0065
main90105-T0065
90163T0001
main90163-T0001
90167T0007
main90167-T0007
90167T0012
main90167-T0012
90168T0001
main90168-T0001
90178T0018
main90178-T0018
90178T0019
main90178-T0019
9018305103
main90183-05103
9054103019
main90541-03019
26 parts on this diagram · 8 diagrams in section
