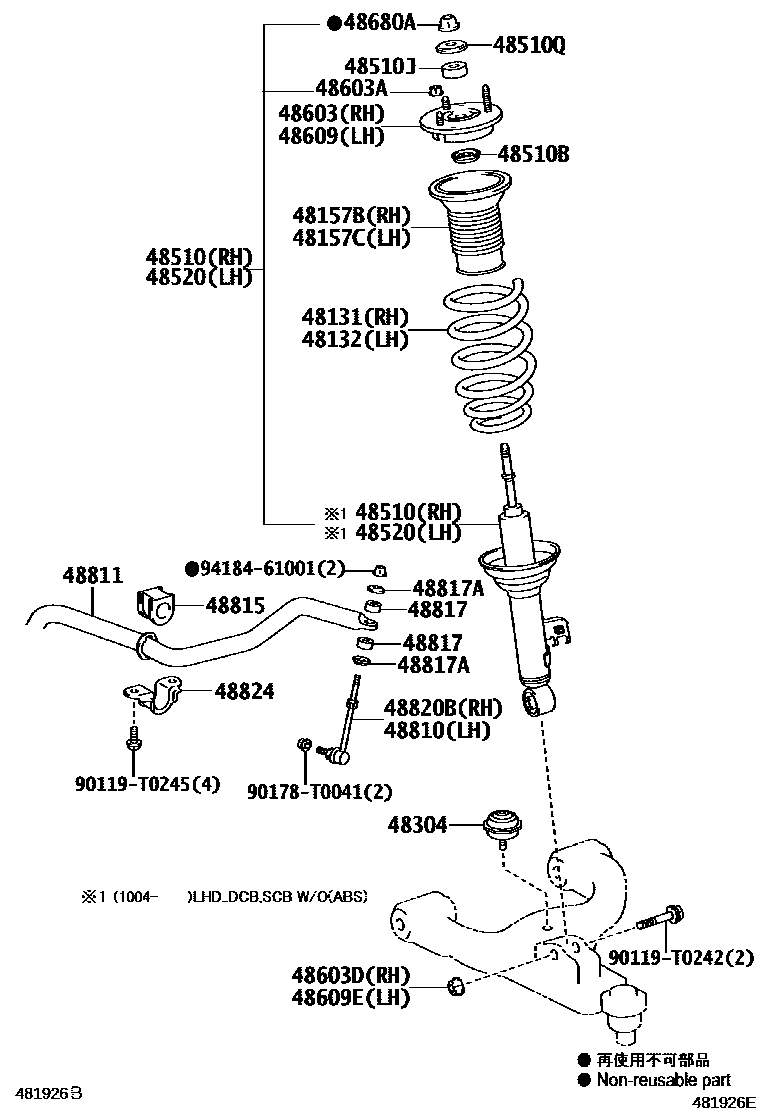

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0K050
MARK 48510-0K060
MARK 48510-0K040
MARK 48510-0K140
MARK 48510-0K160
MARK 48510-0K021
MARK 48510-0K051
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-0K140
MARK 48510-0K160
MARK 48520-0K050
MARK 48520-0K060
MARK 48520-0K040
MARK 48520-0K021
MARK 48520-0K051
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
(L)
(J)
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48820BLINK ASSY, FRONT STABILIZER, RH
48824BRACKET, STABILIZER, FRONT
90119T0242
main90119-T0242
90119T0245
main90119-T0245
90178T0041
main90178-T0041
9418461001
main94184-61001
27 parts on this diagram · 2 diagrams in section
