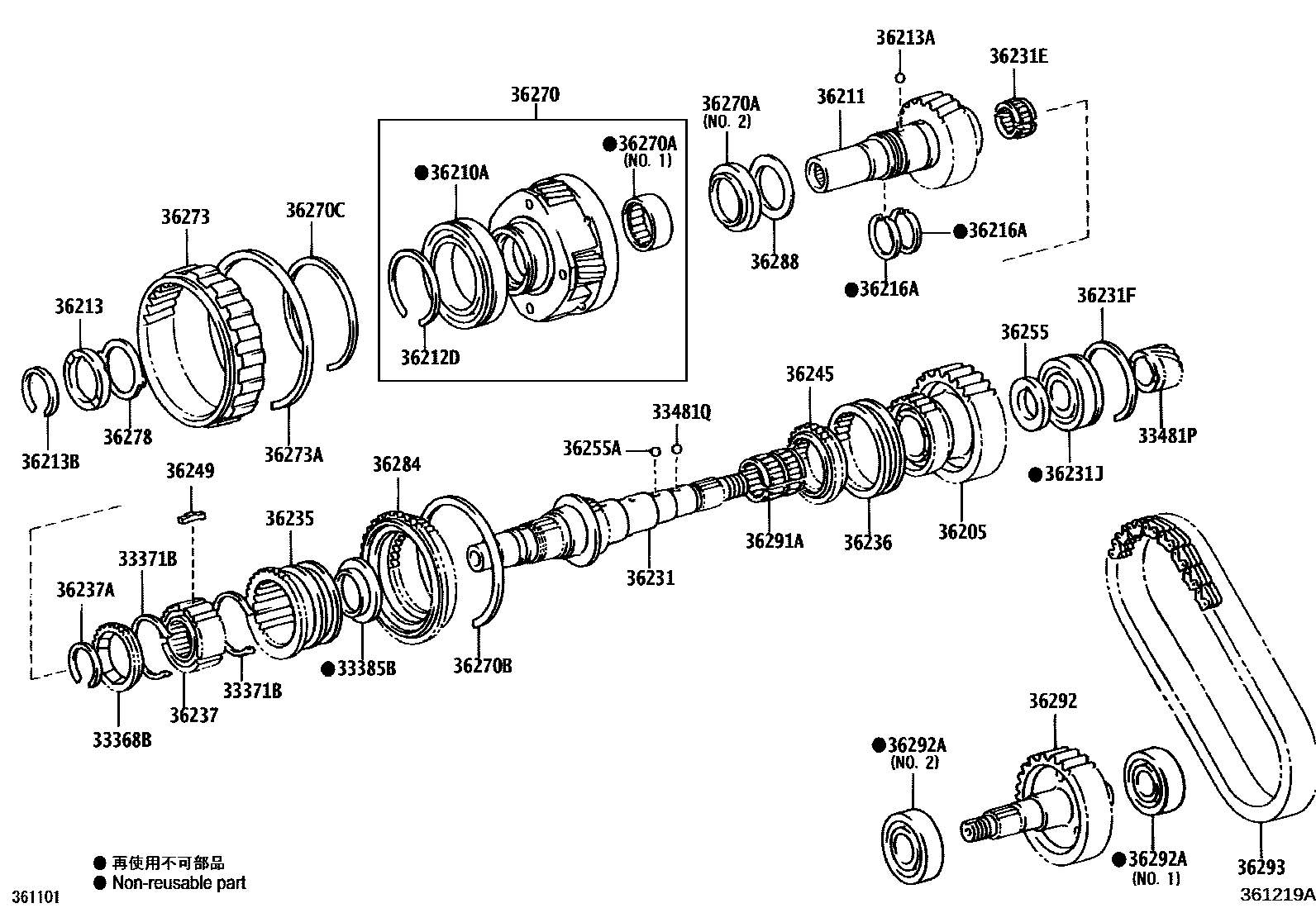

TRANSFER GEAR
33368BRING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH)
33371BSPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
33385BRETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=11
N=11
33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)
36205SPROCKET SUB-ASSY, TRANSFER DRIVE
AUTO DISCONNECT DIFFERENTIAL-WITH; AUTO DISCONNECT DIFFERENTIAL-WITH&ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
AUTO DISCONNECT DIFFERENTIAL-WITH
36210ABEARING (FOR TRANSFER INPUT SHAFT)
36211SHAFT, TRANSFER INPUT
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
T=1.45,MARK 1; T=1.45,MARK 1,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=1.50,MARK 2
T=1.55,MARK 3
T=1.60,MARK 4
T=1.65,MARK 5; T=1.65,MARK 5,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
36213STOPPER, TRANSFER INPUT GEAR
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
T=2.10-2.15; T=2.10-2.15,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.15-2.20; T=2.15-2.20,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.20-2.25
T=2.25-2.30; T=2.25-2.30,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.30-2.35; T=2.30-2.35,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.35-2.40; T=2.35-2.40,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.40-2.45; T=2.40-2.45,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.45-2.50; T=2.45-2.50,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.50-2.55
T=2.55-2.60
T=2.60-2.65; T=2.60-2.65,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.65-2.70; T=2.65-2.70,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.70-2.75; T=2.70-2.75,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.75-2.80; T=2.75-2.80,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.80-2.85
T=2.85-2.90; T=2.85-2.90,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.90-2.95
T=2.95-3.00
T=3.00-3.05
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36231SHAFT, TRANSFER OUTPUT, REAR
AUTO DISCONNECT DIFFERENTIAL-WITH
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
T=1.65,ID=71.1
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
AUTO DISCONNECT DIFFERENTIAL-WITH
36237HUB, TRANSFER CLUTCH
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
T=2.10-2.15,MARK A
T=2.15-2.20,MARK B
T=2.20-2.25,MARK C; T=2.20-2.25,MARK C,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.25-2.30,MARK D
T=2.30-2.35,MARK E
T=2.35-2.40,MARK F; T=2.35-2.40,MARK F,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.40-2.45,MARK G
T=2.45-2.50,MARK H
T=2.50-2.55,MARK J; T=2.50-2.55,MARK J,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.00-2.05,MARK K; T=2.00-2.05,MARK K,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
T=2.05-2.10,MARK L; T=2.05-2.10,MARK L,DIFFERENTIAL-WITH(DIFFERENTIAL LOCK)&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
36245PIECE, TRANSFER FRONT DRIVE GEAR
36249KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
36270GEAR ASSY, TRANSFER LOW PLANETARY
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
NO.1
NO.2
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
T=1.8
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36273GEAR, TRANSFER LOW PLANETARY RING
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
T=0.95-1.05
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
36288RACE, TRANSFER THRUST BEARING, NO.1
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292SPROCKET, TRANSFER DRIVEN
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
NO.1
NO.2
36293CHAIN, TRANSFER FRONT DRIVE
38 parts on this diagram · 2 diagrams in section
