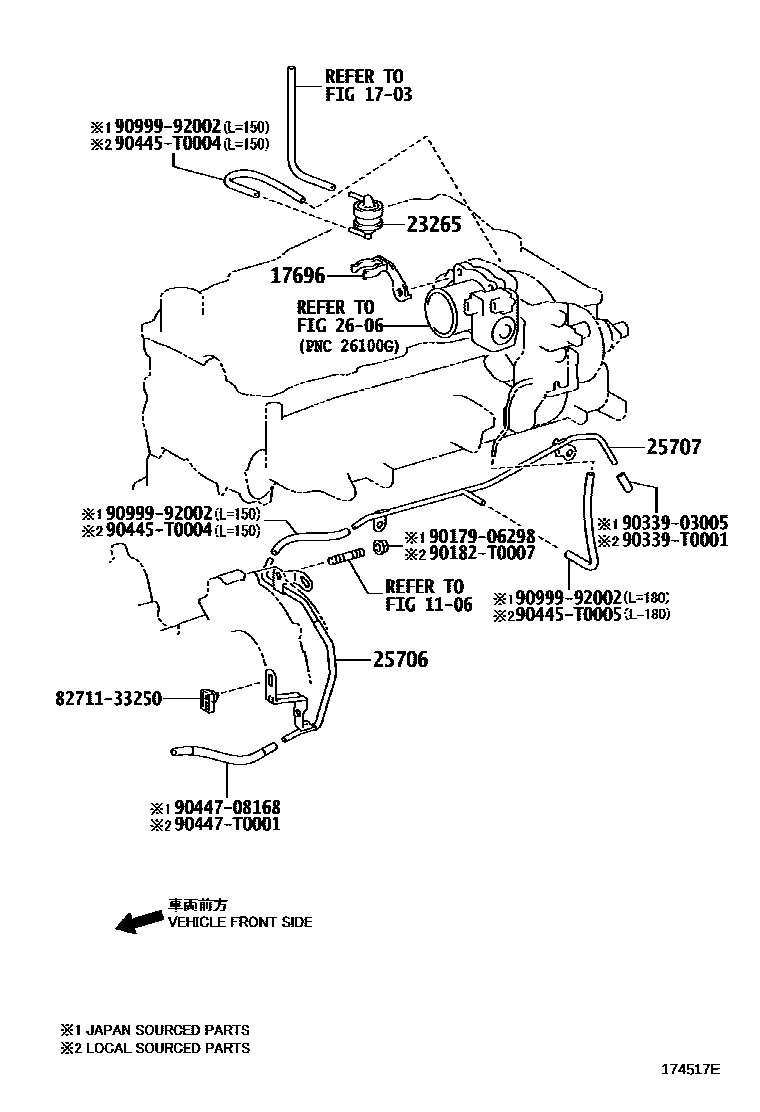

VACUUM PIPING

0001 1 0003 1W/O(EGR) 0004 1 0006 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1703AIR CLEANER

→ Go to FIG 17-03

17696BRACKET, GAS FILTER

main17696-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main17696-30010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

main17696-30020i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

23265FILTER, GAS, NO.1

main90917-11036i2KDFTV..KUN25..XTR200507-200608

main90917-11044i2KDFTV..KUN25..DCB,SCB200610-200810

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-0L010i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*130

main25706-30020i2KDFTV..KUN15..XTR..DCR;2KDFTV..KUN15,25..DCB,SCB200507-200610

*163 OR *184

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-0L020i2KDFTV..KUN25..XTR200507-200608

*130

main25707-30020i1KDFTV,2KDFTV..KUN15,2#..5F,5FC200808-201108

2606VENTURI

→ Go to FIG 26-06

8271133250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33250

9017906298

main90179-06298

90182T0007

main90182-T0007

9033903005

main90339-03005

90339T0001

main90339-T0001

90445T0004

main90445-T0004

90445T0005

main90445-T0005

9044708168

main90447-08168

90447T0001

main90447-T0001

9099992002

main90999-92002

17 parts on this diagram · 4 diagrams in section
