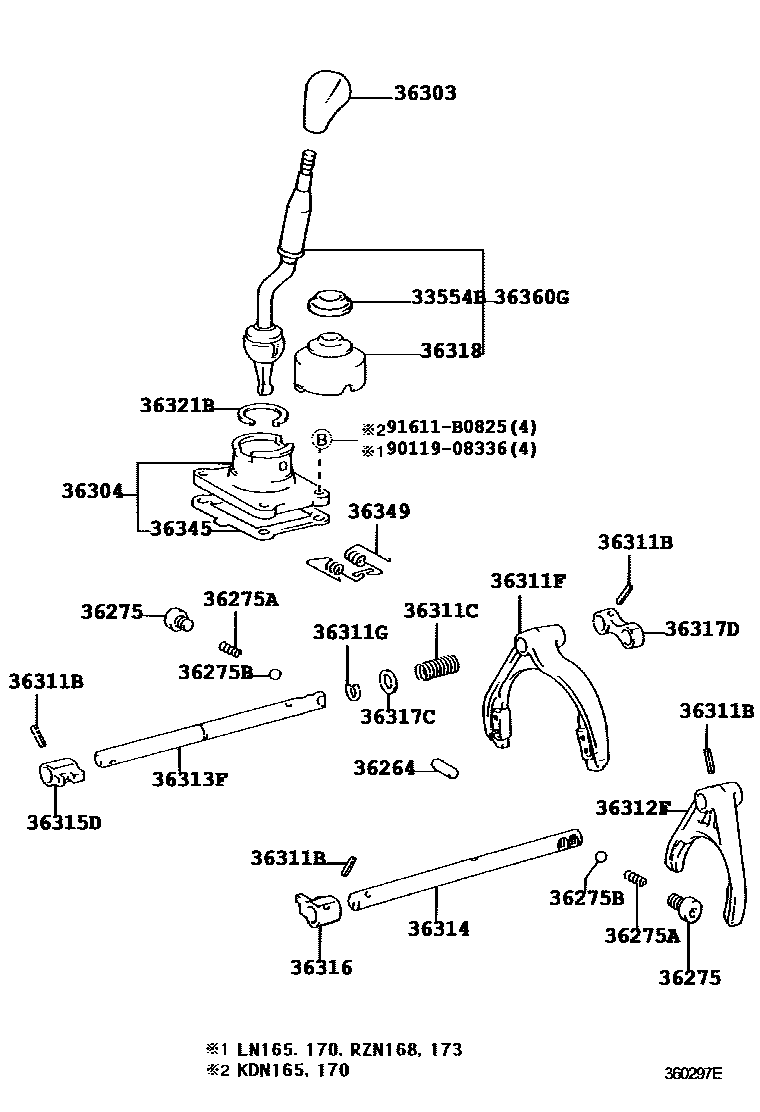

TRANSFER LEVER & SHIFT ROD

33554BCAP, TRANSFER SHIFT LEVER

main33554-20010iKDN165,170200108

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020iLN165,170,RZN168,173199708-200108

L=25.7,OD=9.53

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014×2iKDN165,170200108-200508

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116×2iLN165,170,RZN168,173199708-200108

L=23

36275BBALL, SHIFT DETENT

main90360-10003×2iLN165,170,RZN168,173199708-200108

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35140-B1iLN165,170,RZN168,173199708-200108

MD.MOON MIST,TRIM1#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35051iKDN165,170200108-200508

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×4iKDN165,170200108-200508

L=22

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-20088iLN165,170,RZN168,173199708-200108

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35020iKDN165,170..LHD..(DCB,XTR)200108-200508

main36311-35030iLN165,170,RZN173..LHD199708-200108

W(A.D.D)

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iLN165,170,RZN168,173199708-200108

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35040iLN165,170,RZN168,173199708-200108

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35080iLN165,170,RZN168,173199708-200108

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35110iLN165,170,RZN168,173199708-200108

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36315-35010iLN165,170,RZN168,173199708-200108

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-35020iLN165,170,RZN168,173199708-200108

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-35020iLN165,170,RZN168,173199708-200108

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-35030iLN165,170,RZN168,173199708-200108

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iLN165,170,RZN168,173199708-200108

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iLN165,170,RZN168,173199708-200108

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35040iRZN168..SCB199708-199908

36349SPRING, TRANSFER SELECT RETURN

main36349-35020iRZN168..SCB199708-199908

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-35350iLN165..RHD199708-200108

main36360-35360iLN165,170..LHD199708-200108

main36360-35430iRZN168,173199708-200108

main36360-35490iKDN165..RHD200108

main36360-35520iKDN165,170..LHD200108

9011908336

main90119-08336

91611B0825

main91611-B0825

25 parts on this diagram · 1 diagram in section
