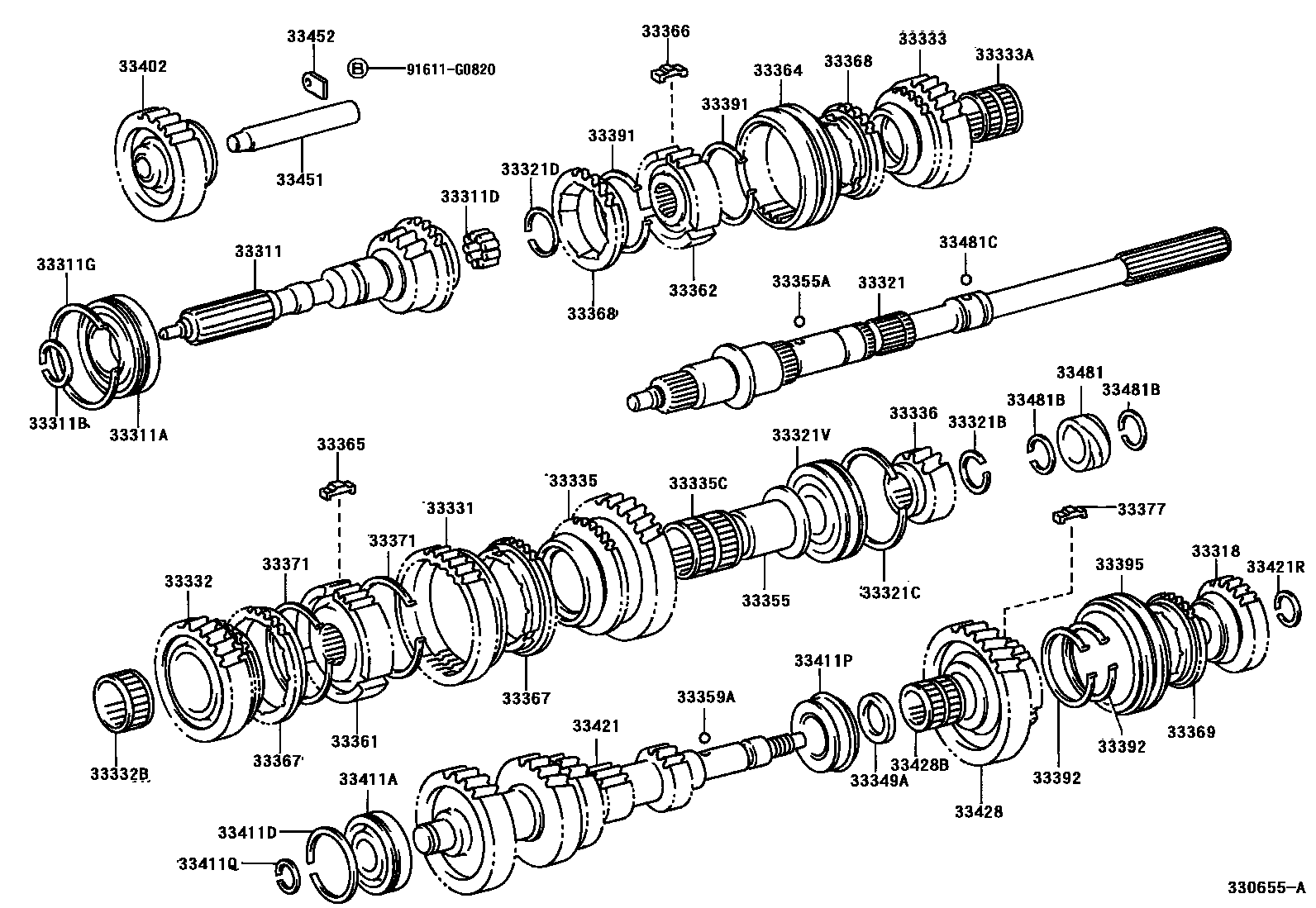

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
T=2.20,MARK 3
T=2.25,MARK 4
T=2.30,MARK 5
T=2.30-2.35,MARK 11
T=2.35-2.40,MARK 12
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.68,MARK 14
T=2.74,MARK 15
T=2.67-2.72,MARK A
T=2.73-2.78,MARK B
T=2.79-2.84,MARK C
T=2.85-2.90,MARK D
T=2.91-2.96,MARK E
T=2.97-3.02,MARK F
T=3.03-3.08,MARK G
T=3.09-3.14,MARK H
T=3.15-3.20,MARK J
T=3.21-3.26,MARK K
T=3.27-3.32,MARK L
T=2.43-2.48,MARK 10
T=2.49-2.54,MARK 11
T=2.55-2.60,MARK 12
T=2.61-2.66,MARK 13
T=2.31-2.36,MARK 8
T=2.37-2.42,MARK 9
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
T=2.95,MARK G
T=3.00,MARK H
T=3.05,MARK J
T=3.10,MARK K
T=3.15,MARK L
T=3.20,MARK M
T=3.25,MARK N
T=3.30,MARK P
T=3.35,MARK Q
T=3.40,MARK R
T=3.45,MARK S
T=0.95-1.05,NO MARK
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1
T=1.95-2.00,MARK E-1
T=1.75-1.80,MARK C-1
T=2.05-2.10,MARK F-1
T=1.86,MARK 11
T=1.92,MARK 12
T=1.98,MARK 13
T=2.04,MARK 14
T=2.10,MARK 15
T=1.80-1.85,MARK D
T=1.90-1.95,MARK E
T=2.00-2.05,MARK F
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33349WASHER, 5TH GEAR THRUST
33349AWASHER, 4TH GEAR
OD=43
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
1ST GEAR SIDE
2ND GEAR SIDE
1ST GEAR SIDE
33368RING, SYNCHRONIZER, NO.2
1ST GEAR SIDE
2ND GEAR SIDE
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
T=1.07,OD=62
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.10-2.15
T=2.20-2.25
T=2.05-2.10
T=2.15-2.20
T=2.25-2.30
T=2.30-2.35
33421GEAR, COUNTER
PNC 33402=TYPE A
PNC 33402=TYPE B
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=2.85,MARK A
T=2.90,MARK B
T=2.95,MARK C
T=3.00,MARK D
T=3.05,MARK E
T=3.10,MARK F
T=3.15,MARK G
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33452STOPPER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6,MARK 6X18-20
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.50,OD=31.3
33481CBALL, REVERSE SHIFT RESTRICT
91611G0820
main91611-G0820
52 parts on this diagram · 3 diagrams in section
