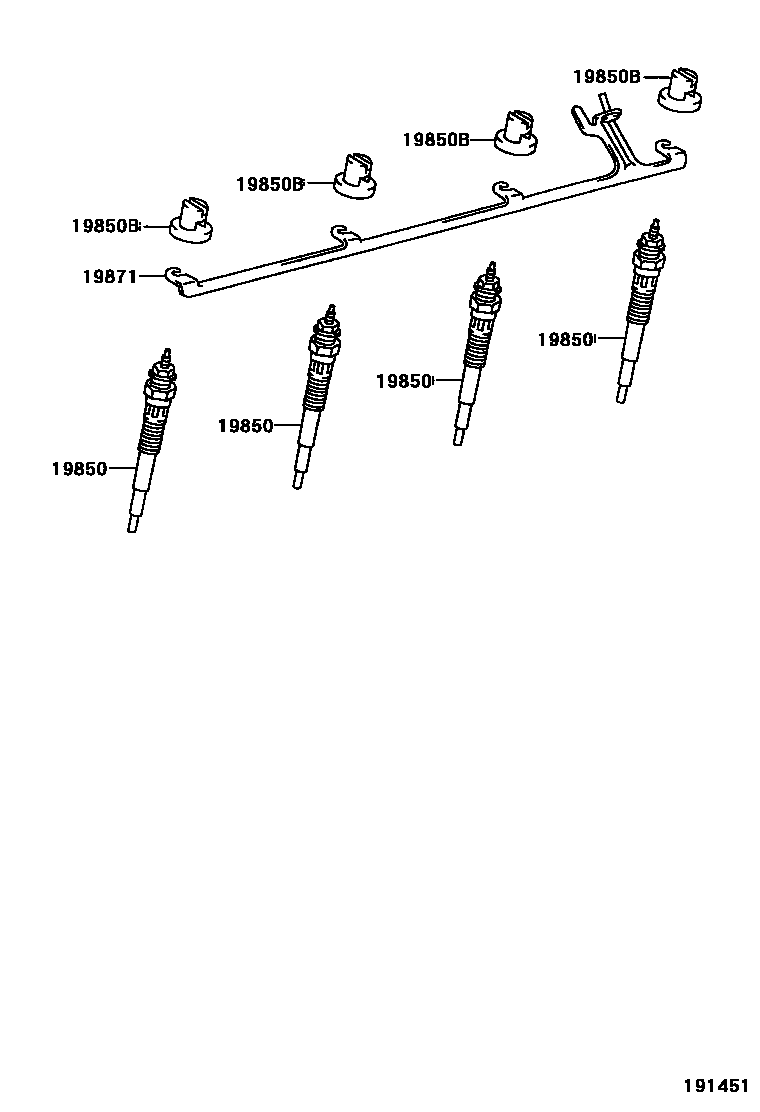

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19850PLUG ASSY, GLOW

main19850-05010×4i2L..LN145,150..LHD;2L..LN145..RHD..CBU199901-200108

*BV-GV=12V-11V,(L)

main19850-30010×4i2KDFTV..KDN145,150,165,170,190200108

*BV-GV=12V-11V

main19850-54120×4i2L..LN145..RHD..IV3199708-199908

*BV-GV=12V-11V,MARK 19850-54120

main19850-54140×4i2L..LN145,150..LHD..DLX200103-200108

*BV-GV=12V-11V,MARK 19850-54140

main19850-54150×4i2LT..LN165,170,190199805-200108

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i2KDFTV..KDN145,150,165,170,190200108

19871CONNECTOR, GLOW PLUG NO.1

main19871-05010i2LT..LN165,170,190199805-200108

(L)

main19871-30020i2KDFTV..KDN145,150,165,170,190200108

main19871-54020i2L..LN145,150; 2LT..LN165,170,190199805-200108

(J)

3 parts on this diagram · 3 diagrams in section
