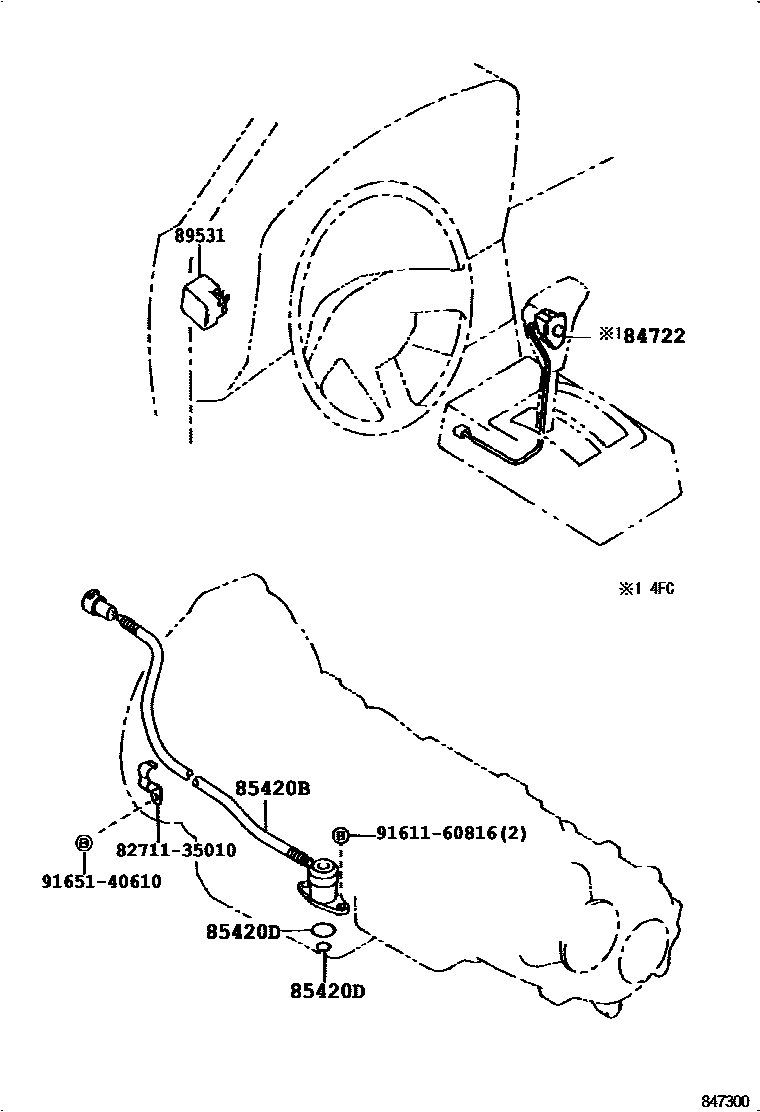

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

84722SWITCH, TRANSMISSION CONTROL

main84722-35060-02iRN12#,VZN120,90..4FC198808-199108

RED,TRIM3#

main84722-35060-03iRN12#,VZN120,90..4FC198808-199108

GRAY,TRIM1#

main84722-35060-04iRN12#,VZN120,90..4FC198808-199108

BLUE,TRIM8#

main84722-35060-06iRN12#,VZN120,90..4FC198808-199108

BROWN,TRIM4#

main84722-35060-E0iVZN120199108-199308

TAN,TRIM4#

main84722-35060-E1iVZN120199308-199511

OAK,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-22080×2iVZN120,85,95..ATM..(SR5,STD); VZN85..4HC..CBU; VZN90..ATM199205-199502

NO.1

main85420-30110iVZN120,85,95..JPP..ATM; VZN90..ATM199205-199502

NO.2,AISIN

main85420-30120iVZN120,85,95..JPP..ATM; VZN90..4FC; VZN90..4HC199205-199502

NO.1,NIPPONDENSO; NO.2,NIPPONDENSO

main85420-30200×2iVZN120199502-199511

NO.1

main85420-30220iVZN120199502-199511

NO.2

85420BSOLENOID ASSY, TRANSMISSION

main85420-20050iRN12#,8#,90..ATM198808-199108

main85420-38010iRN8#,90..4HC199108-199501

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×3iVZN120,85,9#..ATM198808-199501

main90301-11001iRN12#,8#,90..ATM198808-199501

ID=9.6-10.0

main90301-23001iRN12#,8#,90..ATM198808-199501

ID=23.15-23.45

89531RELAY, TRANSMISSION CONTROL

main89531-28010iRN12#,8#,90..ATM198808-199501

8271135010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35010

9161160816

main91611-60816

9165140610

main91651-40610

8 parts on this diagram · 2 diagrams in section
