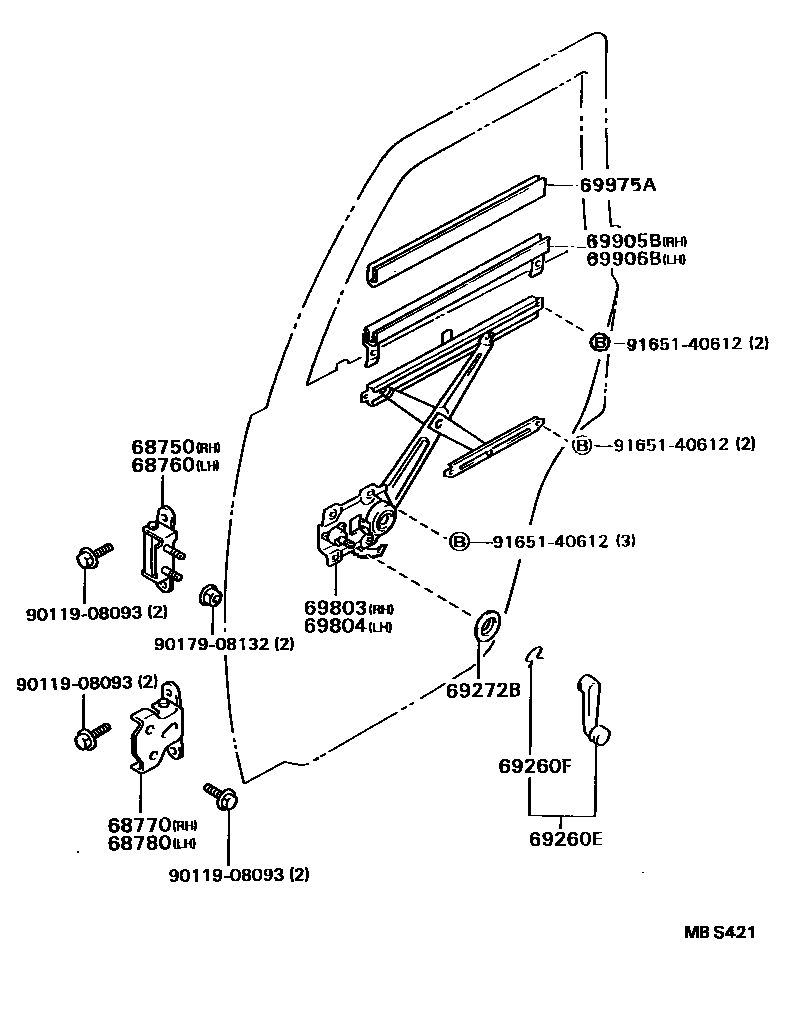

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-35010iVZN120199108-199309

main68750-35011iVZN120199309-199511

main68750-89102iRN12#,VZN120198904-199108

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-35010iVZN120199108-199309

main68760-35011iVZN120199309-199511

main68760-89102iRN12#,VZN120198904-199108

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20040iRN12#,VZN120198904-199108

main68770-35010iVZN120199108-199511

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20040iRN12#,VZN120198904-199108

main68780-35010iVZN120199108-199511

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-89104-02iRN12#,VZN120198904-199108

RED,TRIM3#

main69260-89104-B0iRN12#,VZN120198904-199511

MEDIUM GRAY,TRIM1#

main69260-89104-E0iRN12#,VZN120198904-199108

BROWN,TRIM4#

main69260-89104-E1iVZN120199108-199308

TAN,TRIM4#

main69260-89104-E2iVZN120199308-199511

OAK,TRIM4#

main69260-89104-J0iRN12#,VZN120198904-199511

MEDIUM BLUE,TRIM8#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iRN12#,VZN120198904-199511

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-16010iRN12#,VZN120198904-199108

main69268-20020iVZN120199108-199511

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-89104iRN12#,VZN120198904-199511

main69803-89105iRN12#,VZN120198904-199511

W(POWER WINDOW)

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-89104iRN12#,VZN120198904-199511

main69804-89105iRN12#,VZN120198904-199511

W(POWER WINDOW)

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-89106iRN12#,VZN120198904-199511

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-89104iRN12#,VZN120198904-199511

69975AFILLER, REAR DOOR GLASS CHANNEL

main69971-89110iRN12#,VZN120198904-199511

9011908093

main90119-08093

9017908132

main90179-08132

9165140612

main91651-40612

15 parts on this diagram · 1 diagram in section
