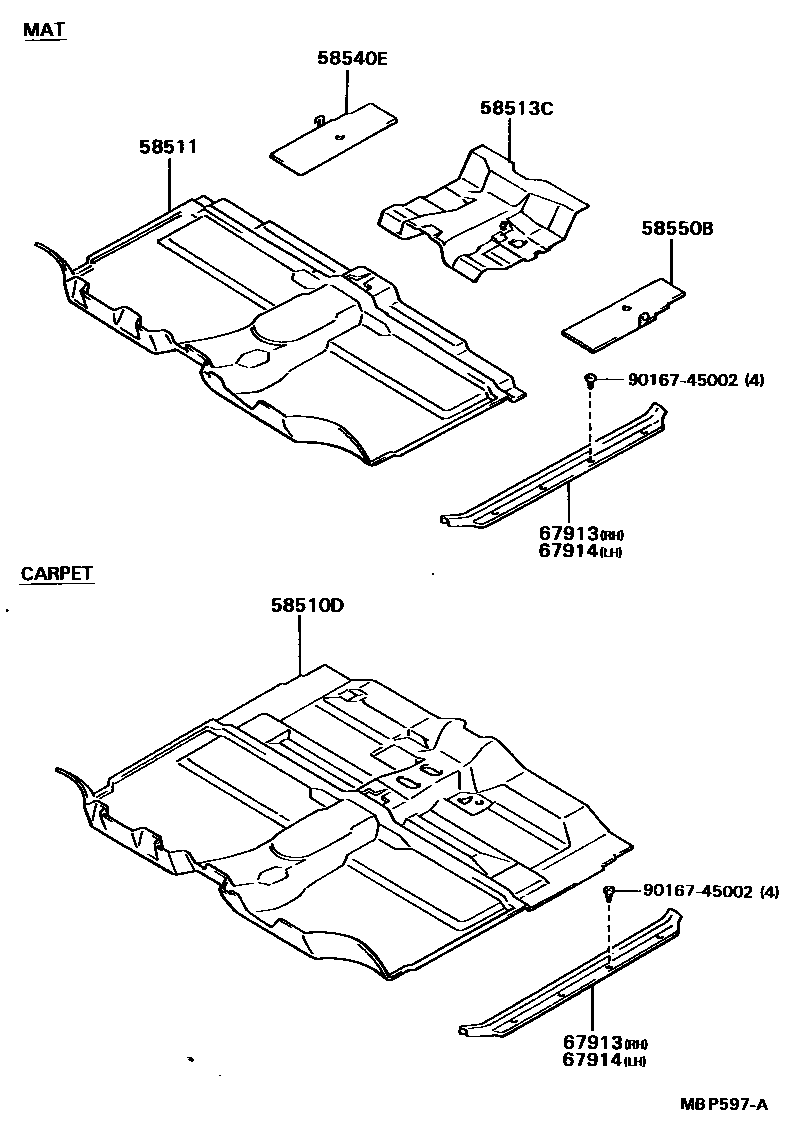

FLOOR MAT & SILENCER PAD
58510DCARPET ASSY, FLOOR, FRONT
GRAY,TRIM1#
BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
GRAY,TRIM1#; W(SEPARATE SEAT),GRAY,TRIM1#
BLUE,TRIM8#; W(SEPARATE SEAT),BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
GRAY,TRIM1#
TAN,TRIM4#
BLUE,TRIM8#
W(AIR CONDITIONER),GRAY,TRIM1#
W(AIR CONDITIONER),TAN,TRIM4#
W(AIR CONDITIONER),BLUE,TRIM8#
W(REAR HEATER),GRAY,TRIM1#
W(REAR HEATER),TAN,TRIM4#
W(REAR HEATER),BLUE,TRIM8#
W(REAR HEATER & AIR CONDITIONER),GRAY,TRIM1#
W(REAR HEATER & AIR CONDITIONER),TAN,TRIM4#
W(REAR HEATER & AIR CONDITIONER),BLUE,TRIM8#
GRAY,GRAY,TRIM1#; GRAY,TRIM1#
BLUE,TRIM8#
GRAY,GRAY,TRIM1#
TAN,TAN,TRIM4#
OAK,TRIM4#
BLUE,BLUE,TRIM8#
W(AIR CONDITIONER),GRAY,GRAY,TRIM1#
W(AIR CONDITIONER),TAN,TAN,TRIM4#
W(AIR CONDITIONER),OAK,TRIM4#
W(AIR CONDITIONER),BLUE,BLUE,TRIM8#
W(REAR HEATER),GRAY,GRAY,TRIM1#
W(REAR HEATER),TAN,TAN,TRIM4#
W(REAR HEATER),OAK,TRIM4#
W(REAR HEATER),BLUE,BLUE,TRIM8#
W(REAR HEATER & AIR CONDITIONER),GRAY,GRAY,TRIM1#
W(REAR HEATER & AIR CONDITIONER),TAN,TAN,TRIM4#
W(REAR HEATER & AIR CONDITIONER),OAK,TRIM4#
W(REAR HEATER & AIR CONDITIONER),BLUE,BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
W(SEPARATE SEAT),GRAY,TRIM1#
BLUE,TRIM8#
W(SPORT SEAT),GRAY,TRIM1#
W(SPORT SEAT),BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
GRAY,TRIM1#
GRAY,TRIM1#
BLUE,TRIM8#
BLUE,TRIM8#
GRAY,TRIM1#; W(REAR JUMP SEAT),GRAY,TRIM1#
BLUE,TRIM8#; W(REAR JUMP SEAT),BLUE,TRIM8#
GRAY,TRIM1#
GRAY,TRIM1#
BLUE,TRIM8#
BLUE,TRIM8#
GRAY,TRIM1#; W(REAR JUMP SEAT),GRAY,TRIM1#
GRAY,TRIM1#; W(REAR JUMP SEAT),GRAY,TRIM1#
BLUE,TRIM8#; W(REAR JUMP SEAT),BLUE,TRIM8#
BLUE,TRIM8#; W(REAR JUMP SEAT),BLUE,TRIM8#
W(REAR HEATER),GRAY,TRIM1#
W(REAR HEATER),OAK,TRIM4#
W(REAR HEATER),BLUE,TRIM8#
W(REAR HEATER & AIR CONDITIONER),GRAY,TRIM1#
W(REAR HEATER & AIR CONDITIONER),OAK,TRIM4#
W(REAR HEATER & AIR CONDITIONER),BLUE,TRIM8#
W(SPORT SEAT),RED,TRIM3#
W(SPORT SEAT),GRAY,TRIM1#
W(SPORT SEAT),BLUE,TRIM8#
W(SPORT SEAT),BROWN,TRIM4#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
W(SPLIT SEAT),RED,TRIM3#
W(SPLIT SEAT),GRAY,TRIM1#
W(SPLIT SEAT),BLUE,TRIM8#
W(SPLIT SEAT),BROWN,TRIM4#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
W(SPLIT SEAT),RED,TRIM3#
W(SPLIT SEAT),GRAY,TRIM1#
W(SPLIT SEAT),BROWN,TRIM4#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
main58510-89387-02iRN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3)198808-199108
RED,TRIM3#
main58510-89387-03iRN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3)198808-199108
GRAY,TRIM1#
main58510-89387-04iRN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3)198808-199108
BLUE,TRIM8#
main58510-89387-06iRN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3)198808-199108
BROWN,TRIM4#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
RED,TRIM3#
GRAY,TRIM1#; W(REAR JUMP SEAT),GRAY,TRIM1#
BLUE,TRIM8#
W(SPLIT SEAT),BROWN,TRIM4#
RED,TRIM3#
GRAY,GRAY,TRIM1#; GRAY,TRIM1#; W(REAR JUMP SEAT),GRAY,GRAY,TRIM1#; W(REAR JUMP SEAT),GRAY,TRIM1#
BLUE,BLUE,TRIM8#; BLUE,TRIM8#
BROWN,TRIM4#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
RED,TRIM3#; W(REAR HEATER),RED,TRIM3#
GRAY,TRIM1#; W(REAR HEATER),GRAY,TRIM1#
BLUE,TRIM8#; W(REAR HEATER),BLUE,TRIM8#
BROWN,TRIM4#; W(REAR HEATER),BROWN,TRIM4#
W(AIR CONDITIONER),RED,TRIM3#
W(AIR CONDITIONER),GRAY,TRIM1#
W(AIR CONDITIONER),BLUE,TRIM8#
W(AIR CONDITIONER),BROWN,TRIM4#
W(REAR HEATER & AIR CONDITIONER),RED,TRIM3#
W(REAR HEATER & AIR CONDITIONER),GRAY,TRIM1#
W(REAR HEATER & AIR CONDITIONER),BLUE,TRIM8#
W(REAR HEATER & AIR CONDITIONER),BROWN,TRIM4#
58511MAT, FLOOR, FRONT
MEDIUM GRAY,TRIM1#
MEDIUM BLUE,TRIM8#
MEDIUM GRAY,TRIM1#
MEDIUM BLUE,TRIM8#
MEDIUM GRAY,TRIM1#; W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
MEDIUM BLUE,TRIM8#; W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
W(REAR JUMP SEAT),GRAY,TRIM1#
W(REAR JUMP SEAT),BLUE,TRIM8#
W(REAR JUMP SEAT),GRAY,TRIM1#
W(REAR JUMP SEAT),BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
W(*66),MEDIUM BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
RED,TRIM3#; W(SEPARATE SEAT),RED,TRIM3#
GRAY,TRIM1#; W(SEPARATE SEAT),GRAY,TRIM1#
BLUE,TRIM8#; W(SEPARATE SEAT),BLUE,TRIM8#
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#
main58510-89358-02iRN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85,95..5F..(G,R); RN90,VZN90..5F..DLX198808-199108
RED,TRIM3#; W(SEPARATE SEAT),RED,TRIM3#
GRAY,TRIM1#; W(SEPARATE SEAT),GRAY,TRIM1#
BLUE,TRIM8#; W(SEPARATE SEAT),BLUE,TRIM8#
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#
main58510-89358-B0iRN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85,95..5F..(G,R); RN90,VZN90..5F..DLX198901-199108
MEDIUM GRAY,TRIM1#; W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
main58510-89358-E0iRN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85,95..5F..(G,R); RN90,VZN90..5F..DLX198901-199108
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#
main58510-89358-J0iRN80..W..DLX;RN85..5F..DLX;RN80..EFI..CND;RN80,VZN85,95..5F..(G,R); RN90,VZN90..5F..DLX198901-199108
MEDIUM BLUE,TRIM8#; W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
W(SEPARATE SEAT),GRAY,TRIM1#
W(SEPARATE SEAT),BLUE,TRIM8#
W(SEPARATE SEAT),BROWN,TRIM4#
W(REAR JUMP SEAT),RED,TRIM3#; W(SPLIT SEAT),RED,TRIM3#
W(REAR JUMP SEAT),GRAY,TRIM1#; W(SPLIT SEAT),GRAY,TRIM1#
W(REAR JUMP SEAT),BLUE,TRIM8#; W(SPLIT SEAT),BLUE,TRIM8#
W(REAR JUMP SEAT),BROWN,TRIM4#; W(SPLIT SEAT),BROWN,TRIM4#
W(REAR JUMP SEAT),RED,TRIM3#; W(SPLIT SEAT),RED,TRIM3#
W(REAR JUMP SEAT),GRAY,TRIM1#; W(SPLIT SEAT),GRAY,TRIM1#
W(REAR JUMP SEAT),BLUE,TRIM8#; W(SPLIT SEAT),BLUE,TRIM8#
W(REAR JUMP SEAT),BROWN,TRIM4#; W(SPLIT SEAT),BROWN,TRIM4#
58513CMAT, FLOOR, FRONT CENTER
main58513-89107-02iVZN85..10T;RN80..W..DLX;RN85..5F..DLX;VZN85,95..IV6;RN80..EFI..CND;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3)198808-199108
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
58540EMAT ASSY, FLOOR, REAR RH
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
58550BMAT ASSY, FLOOR, REAR LH
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
67913PLATE, FRONT DOOR SCUFF, RH
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
main67913-89105-02iRN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3); RN85..SR5;RN90,VZN90; VZN85..10T..4HC; VZN85..10T..R198808-199108
RED,TRIM3#; W(SEPARATE SEAT),RED,TRIM3#; W(SPLIT SEAT OR SEPARATE SEAT),RED,TRIM3#; W(SPLIT SEAT),RED,TRIM3#
main67913-89105-03iRN85..SR5;RN90,VZN90; VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3); VZN85..10T..4HC; VZN85..10T..R198808-198901
GRAY,TRIM1#; W(SEPARATE SEAT),GRAY,TRIM1#; W(SPLIT SEAT OR SEPARATE SEAT),GRAY,TRIM1#; W(SPLIT SEAT),GRAY,TRIM1#
main67913-89105-04iRN85..SR5;RN90,VZN90; VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3); VZN85..10T..4HC; VZN85..10T..R198808-198901
BLUE,TRIM8#; W(SEPARATE SEAT),BLUE,TRIM8#; W(SPLIT SEAT OR SEPARATE SEAT),BLUE,TRIM8#; W(SPLIT SEAT),BLUE,TRIM8#
main67913-89105-06iRN85..SR5;RN90,VZN90; VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3); VZN85..10T..4HC; VZN85..10T..R198808-198901
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#; W(SPLIT SEAT OR SEPARATE SEAT),BROWN,TRIM4#; W(SPLIT SEAT),BROWN,TRIM4#
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
main67913-89105-E0iRN80..CBR;VZN85,95..IV6;RN80..W..EFI..USA;RN85,VZN85..HLF..5F..DLX; RN85..SR5;RN90,VZN90; VZN85..10T..4HC; VZN85..10T..R198901-199108
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#; W(SPLIT SEAT OR SEPARATE SEAT),BROWN,TRIM4#; W(SPLIT SEAT),BROWN,TRIM4#
W(SPLIT SEAT OR SEPARATE SEAT),MEDIUM BLUE,TRIM8#; W(SPLIT SEAT),MEDIUM BLUE,TRIM8#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
TAN,TRIM4#
OAK,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
MEDIUM GRAY,TRIM1#
BROWN,TRIM4#
MEDIUM BLUE,TRIM8#
main67914-89104-02iRN80..W..DLX;VZN85,95..IV6;RN85..5F..DLX;RN80,VZN85..HLF..5F..(G,R)..(CBU,IV3); RN85..SR5;RN90,VZN90; VZN85..10T..4HC; VZN85..10T..R198808-199108
RED,TRIM3#; W(SEPARATE SEAT),RED,TRIM3#; W(SPLIT SEAT OR SEPARATE SEAT),RED,TRIM3#; W(SPLIT SEAT),RED,TRIM3#
main67914-89104-03iRN85..SR5;RN90,VZN90; VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3); VZN85..10T..4HC; VZN85..10T..R198808-198901
GRAY,TRIM1#; W(SEPARATE SEAT),GRAY,TRIM1#; W(SPLIT SEAT OR SEPARATE SEAT),GRAY,TRIM1#; W(SPLIT SEAT),GRAY,TRIM1#
main67914-89104-04iRN85..SR5;RN90,VZN90; VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3); VZN85..10T..4HC; VZN85..10T..R198808-198901
BLUE,TRIM8#; W(SEPARATE SEAT),BLUE,TRIM8#; W(SPLIT SEAT OR SEPARATE SEAT),BLUE,TRIM8#; W(SPLIT SEAT),BLUE,TRIM8#
main67914-89104-06iRN85..SR5;RN90,VZN90; VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3); VZN85..10T..4HC; VZN85..10T..R198808-198901
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#; W(SPLIT SEAT OR SEPARATE SEAT),BROWN,TRIM4#; W(SPLIT SEAT),BROWN,TRIM4#
main67914-89104-B0iRN85..SR5;RN90,VZN90; VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3)198901-199501
MEDIUM GRAY,TRIM1#; W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
main67914-89104-E0iRN85..SR5;RN90,VZN90; VZN85,95..IV6;RN8#,VZN85..HLF..MTM..(DLX,STD)..(CBU,IV3); VZN85..10T..4HC; VZN85..10T..R198901-199108
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#; W(SPLIT SEAT OR SEPARATE SEAT),BROWN,TRIM4#; W(SPLIT SEAT),BROWN,TRIM4#
W(SPLIT SEAT OR SEPARATE SEAT),MEDIUM BLUE,TRIM8#; W(SPLIT SEAT),MEDIUM BLUE,TRIM8#
RED,TRIM3#
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
TAN,TRIM4#
OAK,TRIM4#
9016745002
main90167-45002
8 parts on this diagram · 3 diagrams in section
