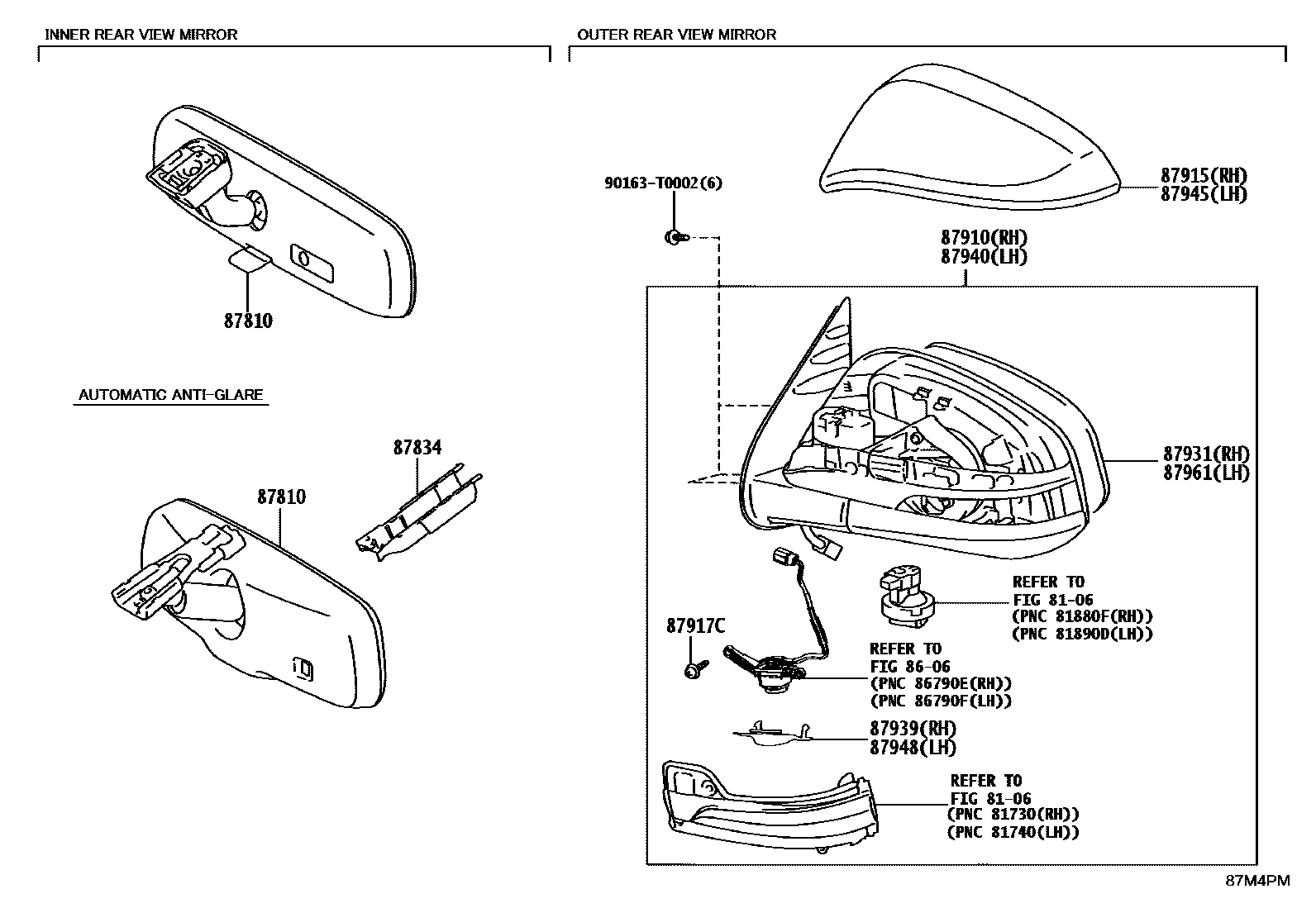

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR &*RCTA)
87915COVER, OUTER MIRROR, RH
PAINT REQ.
87917CSCREW, OUTER MIRROR
BACK MONITOR-WITH(*PVM); BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87939COVER, OUTER MIRROR HOLE, RH
BACK MONITOR-WITH(*PVM); BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR &*RCTA)
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87948COVER, OUTER MIRROR HOLE, LH
BACK MONITOR-WITH(*PVM); BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL) & W(*FLA)
BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
90163T0002
main90163-T0002
14 parts on this diagram · 1 diagram in section
