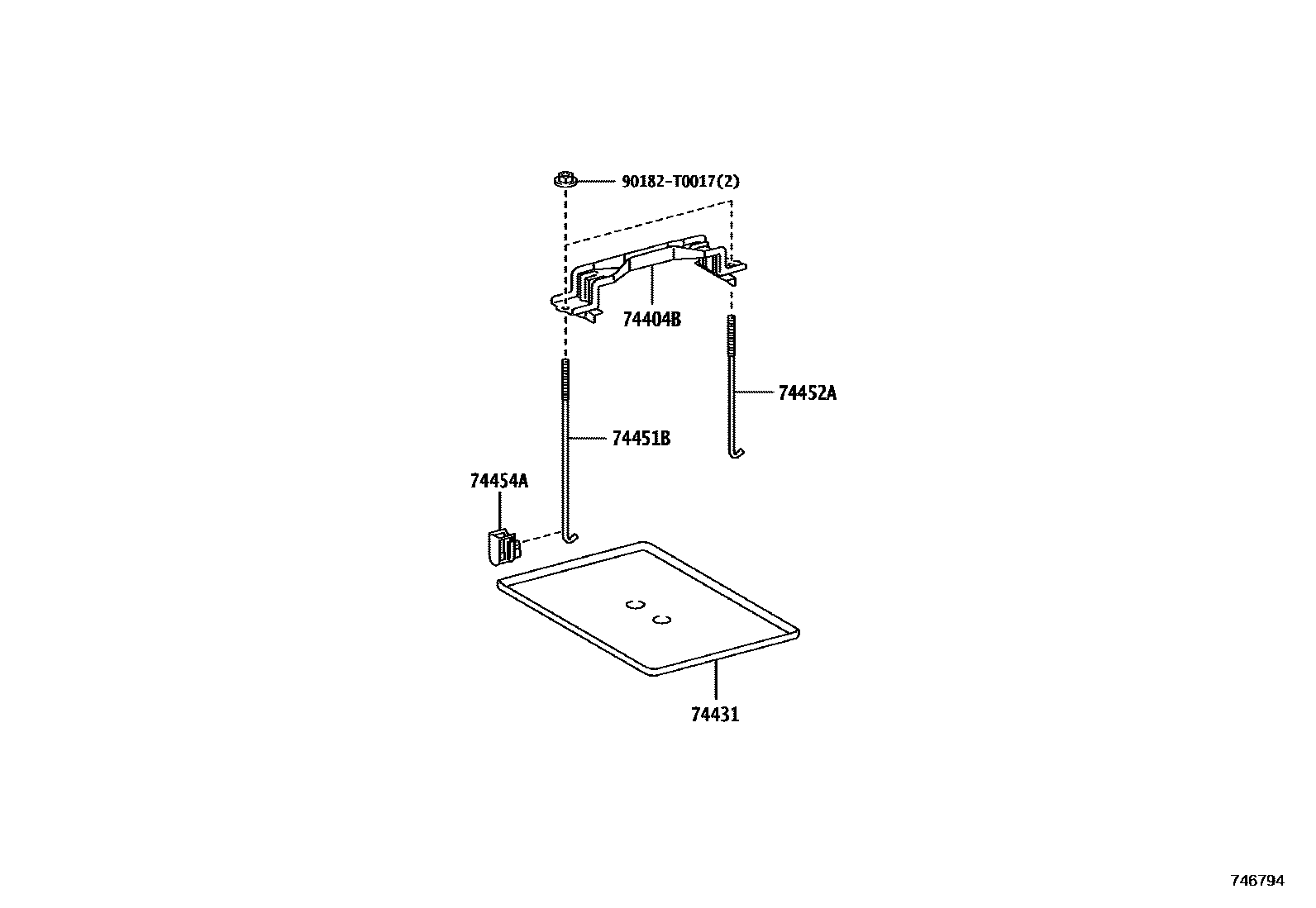

BATTERY CARRIER

74404BCLAMP SUB-ASSY, BATTERY

main74404-KK010iGUN156,TGN156202308-202407

74431TRAY, BATTERY

main74431-KK020iTGN156202308-202407

main74431-KK030iGUN156202308-202407

74451BBOLT, BATTERY CLAMP

main74451-KK010iGUN156,TGN156202308-202407

74452ABOLT, BATTERY CLAMP, NO.2

main74451-KK020iGUN156,TGN156202308-202407

74454ASUPPORT, BATTERY SET BOLT

main74454-0K010iGUN156,TGN156202308-202407

90182T0017

main90182-T0017

6 parts on this diagram · 1 diagram in section
