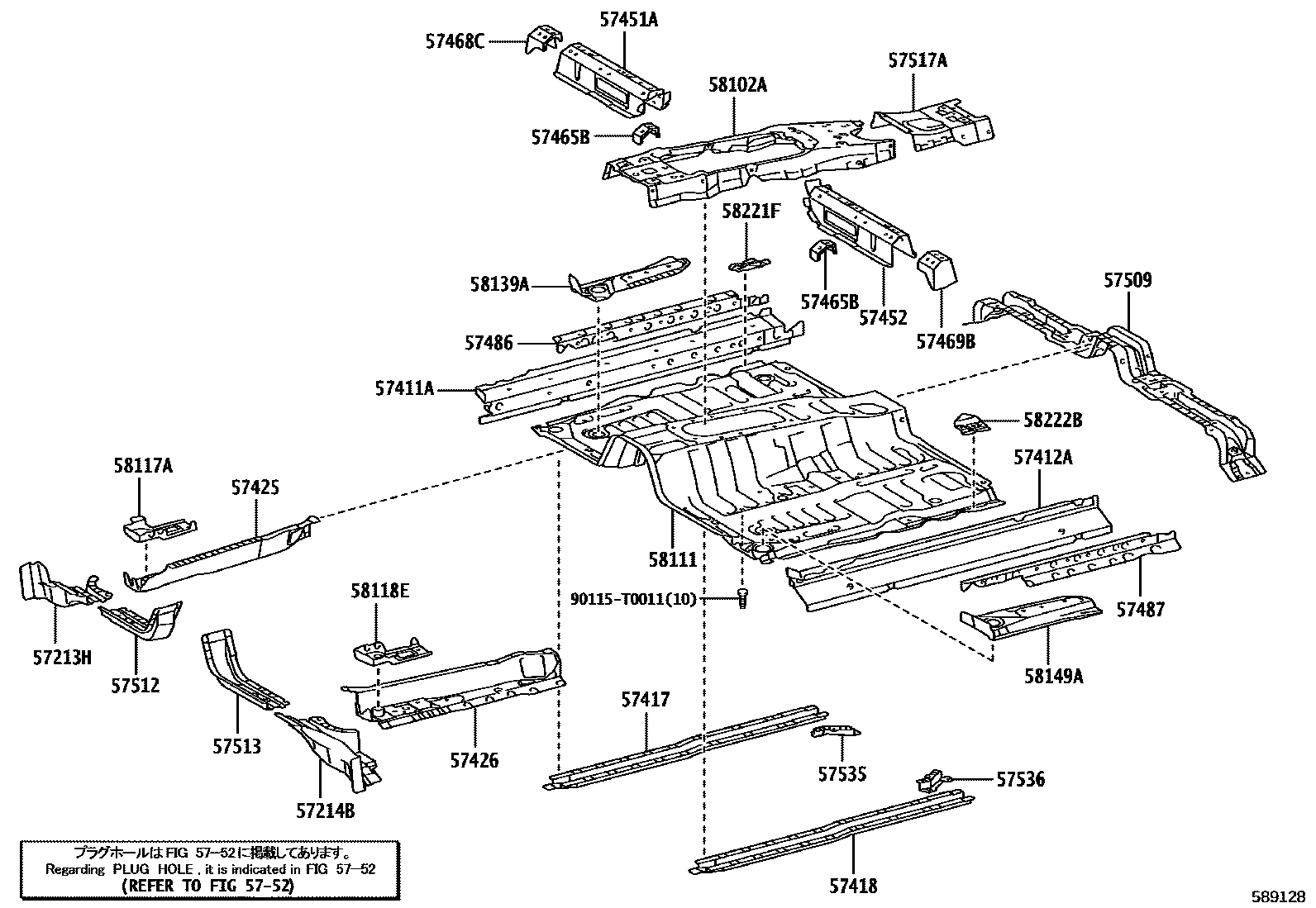

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57213HBRACKET, BODY MOUNTING, NO.2 RH
57214BBRACKET, BODY MOUNTING, NO.2 LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452MEMBER, FRONT FLOOR CROSS, LH
57465BBRACKET, FRONT SEAT, INNER
57468CBRACKET, FRONT SEAT, OUTSIDE, RH
57469BBRACKET, FRONT SEAT, OUTSIDE LH
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57512REINFORCEMENT, FRONT FLOOR, RH
57513REINFORCEMENT, FRONT FLOOR, LH
57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR
5752HOLE PLUG
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118EBRACKET, JACK SET
58139APLATE, FRONT FLOOR SIDE, REAR RH
58149APLATE, FRONT FLOOR SIDE, REAR LH
58221FREINFORCEMENT, FLOOR PANEL, FRONT RH
58222BREINFORCEMENT, FLOOR PANEL, FRONT LH
90115T0011
main90115-T0011
31 parts on this diagram · 3 diagrams in section
