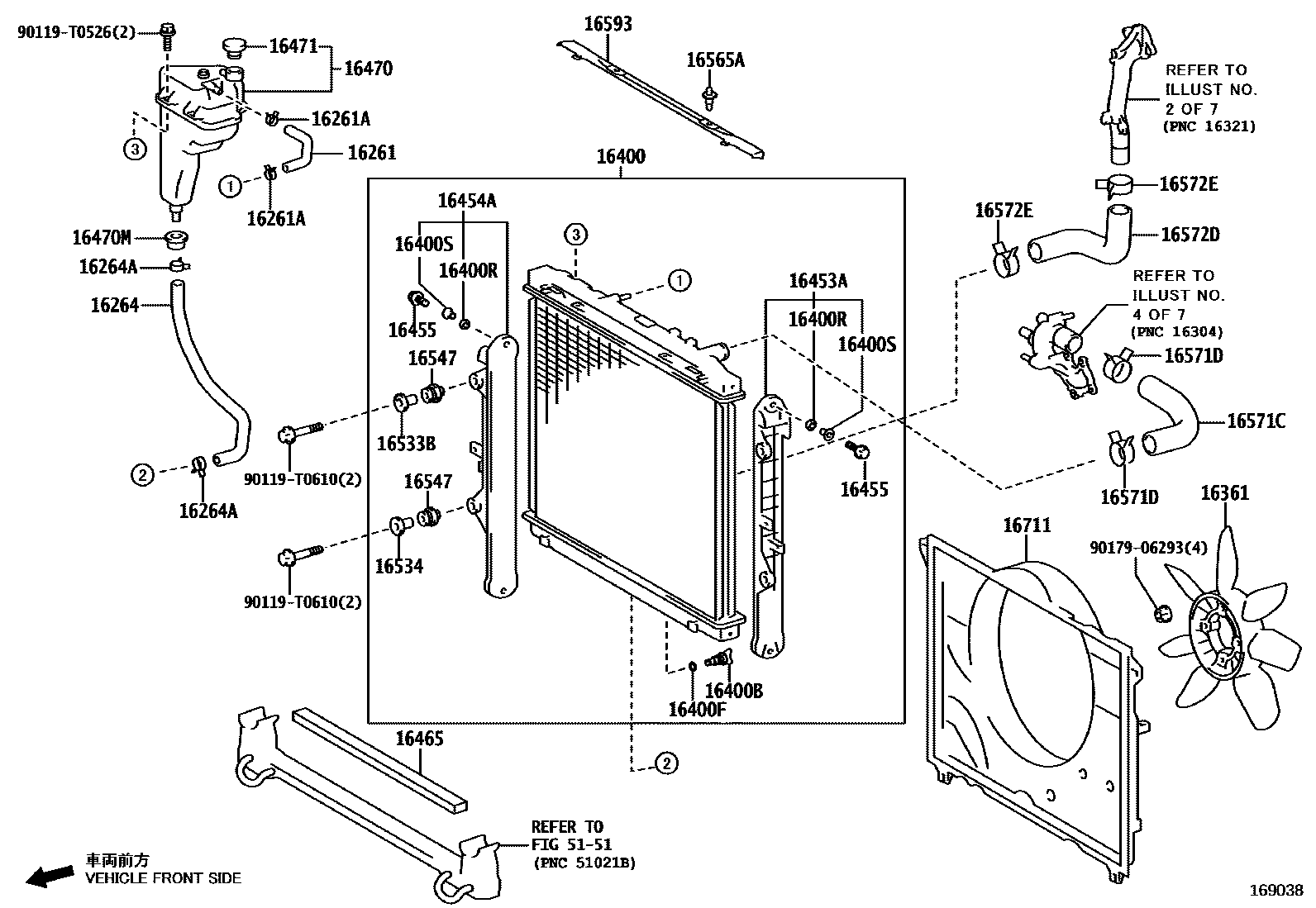

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
(L)
(J)
16264HOSE, WATER BY-PASS, NO.2
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; IDN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
(L)
16400RBUSHING(FOR RADIATOR)
16400SCOLLAR(FOR RADIATOR)
16453APLATE, RADIATOR SIDE SUPPORT, RH
16454APLATE, RADIATOR SIDE SUPPORT, LH
16455BOLT, RADIATOR SIDE SUPPORT PLATE
16465PACKING, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16533BSUPPORT, RADIATOR, NO.1
16534SUPPORT, RADIATOR, NO.2
16547BUSH, RADIATOR SUPPORT, NO.1
16565ACLIP
BLACK
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16593GUIDE, RADIATOR AIR, NO.1
16711SHROUD, FAN
5151FRAME
90119T0526
main90119-T0526
90119T0610
main90119-T0610
9017906293
main90179-06293
31 parts on this diagram · 9 diagrams in section
