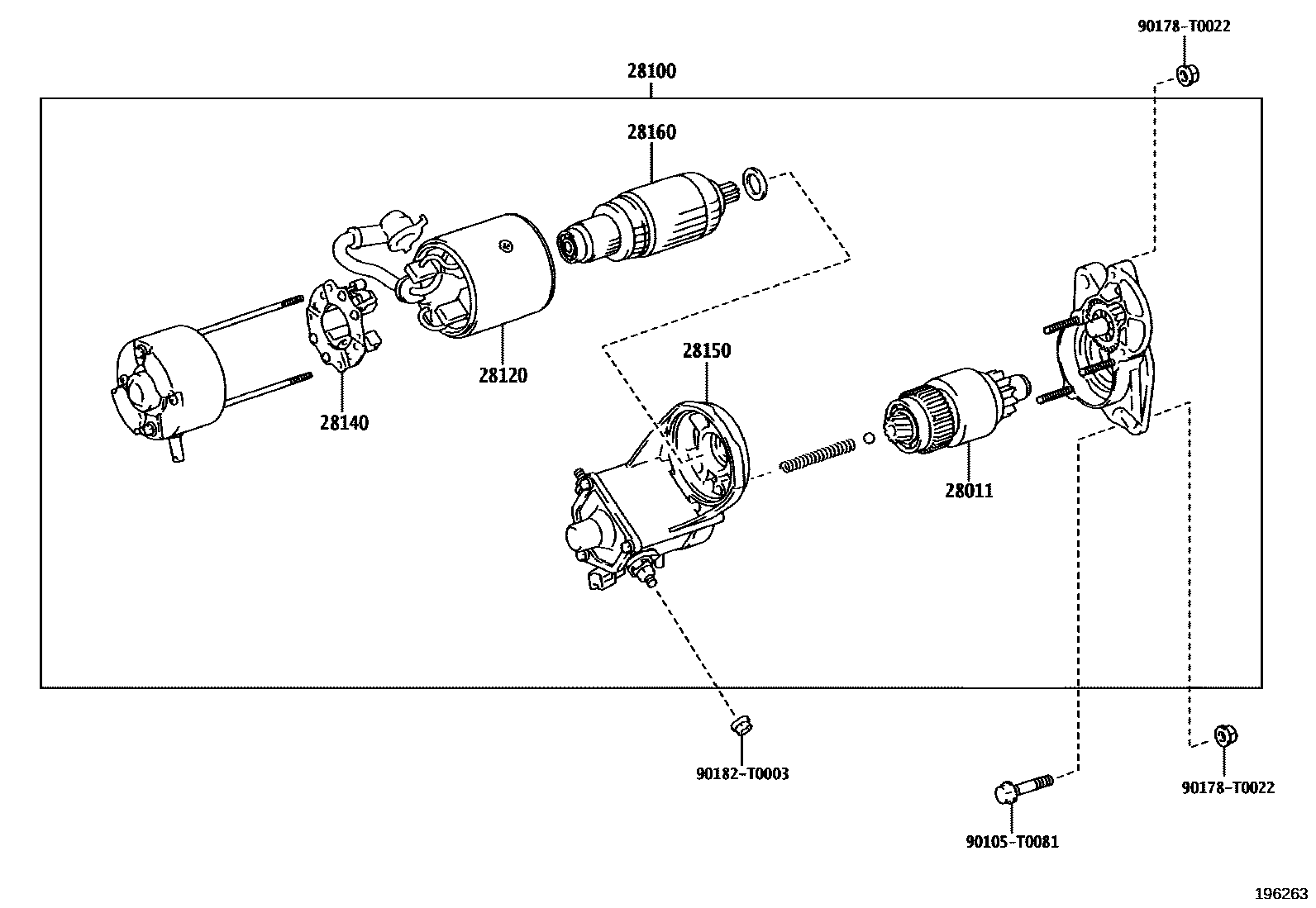

STARTER

0001 112V 2.7KW 0002 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-30050i1GDFTV..GUN156202208-202307

main28011-75120i2TRFE..TGN156202208-202307

28100STARTER ASSY

main28100-0L052i1GDFTV..GUN156202208-202307

12V 2.7KW

main28100-75141i2TRFE..TGN156202208-202307

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-0L050i1GDFTV..GUN156202208-202307

main28120-54380i2TRFE..TGN156202208-202307

28140HOLDER ASSY, STARTER BRUSH

main28140-62030i2TRFE..TGN156202208-202307

main28140-77090i1GDFTV..GUN156202208-202307

28150SWITCH ASSY, MAGNET STARTER

main28150-0L050i1GDFTV..GUN156202208-202307

main28150-75120i2TRFE..TGN156202208-202307

28160ARMATURE ASSY, STARTER

main28160-54140i1GDFTV..GUN156202208-202307

main28160-75120i2TRFE..TGN156202208-202307

90105T0081

main90105-T0081

90178T0022

main90178-T0022

90182T0003

main90182-T0003

9 parts on this diagram · 2 diagrams in section
