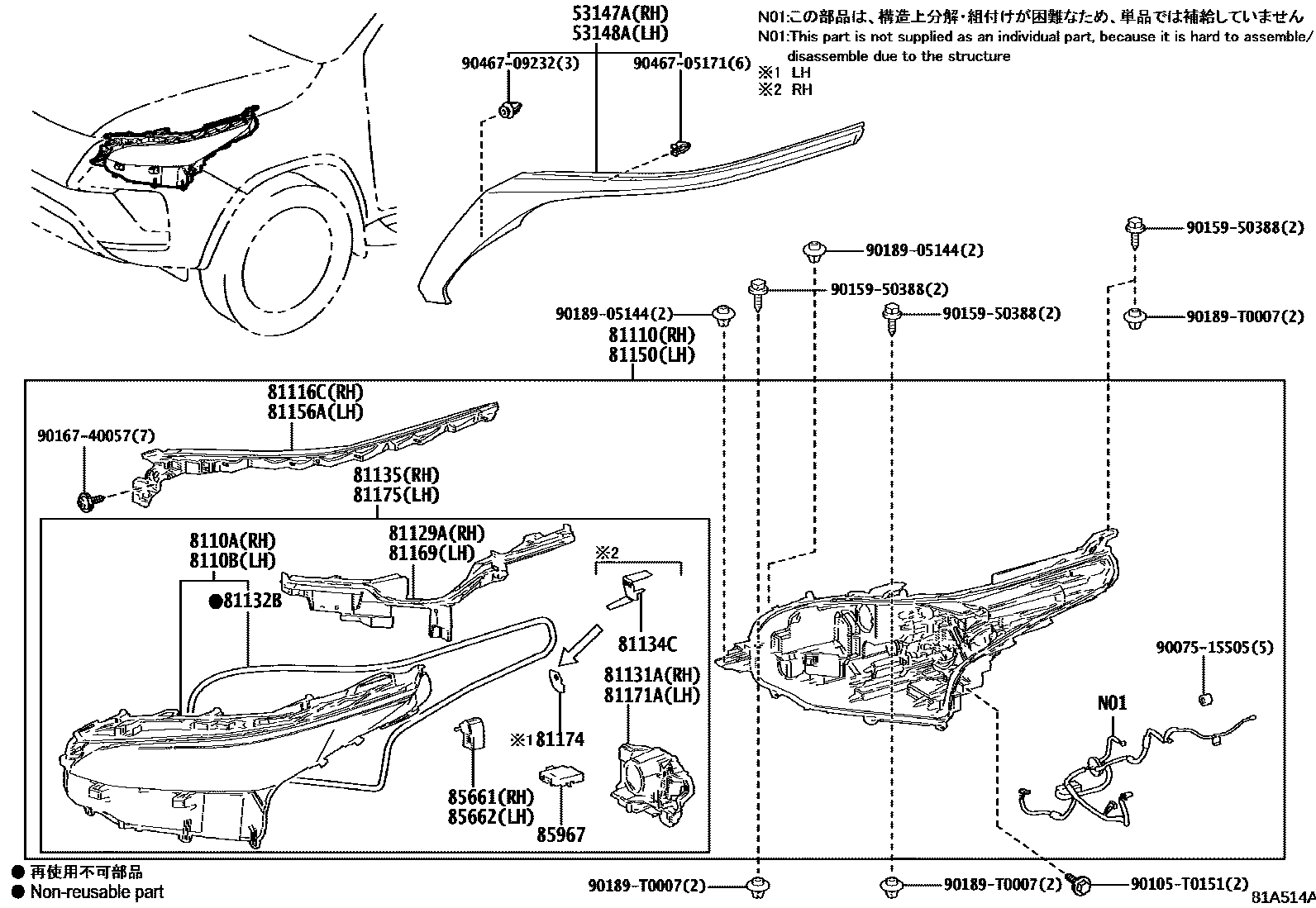

HEADLAMP
53147AGARNISH, HEADLAMP ORNAMENT, RH
53148AGARNISH, HEADLAMP ORNAMENT, LH
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
81110HEADLAMP ASSY, RH
81116CBRACKET, HEADLAMP, RH
81129AREFLECTOR, HEADLAMP, RH
81131AUNIT, HEADLAMP, RH
81132BGASKET, HEADLAMP LENS
81134CGASKET, HEADLAMP BODY, RH
81135UNIT ASSY, HEADLAMP, RH
81150HEADLAMP ASSY, LH
81156ABRACKET, HEADLAMP, LH
81169REFLECTOR, HEADLAMP, LH
81171AUNIT, HEADLAMP, LH
81174GASKET, HEADLAMP BODY, LH
81175UNIT ASSY, HEADLAMP, LH
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85967COMPUTER, LIGHT CONTROL
9007515505
main90075-15505
90105T0151
main90105-T0151
9015950388
main90159-50388
9016740057
main90167-40057
9018905144
main90189-05144
90189T0007
main90189-T0007
9046705171
main90467-05171
9046709232
main90467-09232
28 parts on this diagram · 3 diagrams in section
