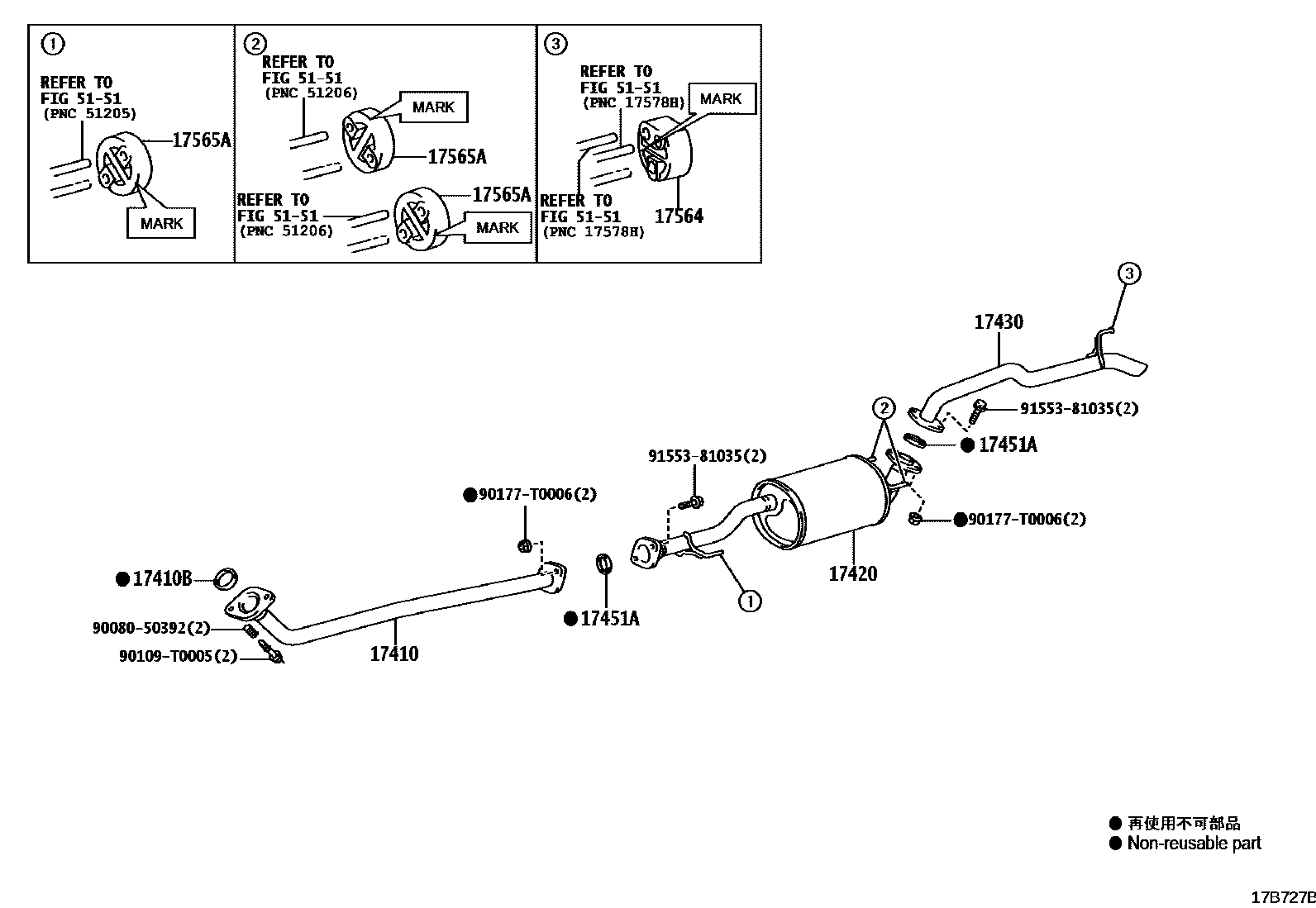

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-0C700i2TRFE..TGN156202108-202207

main17401-0L210i1GDFTV..GUN156202108-202207

main17401-0C550i2TRFE..TGN156..S202108-202207

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main17401-0C620i2TRFE..TGN156..S202108-202207

17410BGASKET, EXHAUST PIPE

main17451-0L050i1GDFTV,2TRFE..GUN156,TGN156202108-202207

17420PIPE ASSY, EXHAUST, CENTER

main17403-0C070i2TRFE..TGN156202108-202207

main17403-0L200i1GDFTV..GUN156202108-202207

main17403-0C130i2TRFE..TGN156..S202108-202207

17430PIPE ASSY, EXHAUST, TAIL

main17405-0C190i2TRFE..TGN156202108-202207

main17405-0L220i1GDFTV..GUN156202108-202207

main17405-0C160i2TRFE..TGN156..S202108-202207

17451AGASKET, EXHAUST PIPE, NO.2

main90917-T6002×2i1GDFTV,2TRFE..GUN156,TGN156202108-202207

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0L100i1GDFTV,2TRFE..GUN156,TGN156202108-202207

MARK:17565-0L100

main17565-0L110i1GDFTV,2TRFE..GUN156,TGN156202108-202207

MARK:17565-0L110

main17565-0L120i1GDFTV,2TRFE..GUN156,TGN156202108-202207

MARK:17565-0L120

main17565-0L130i1GDFTV,2TRFE..GUN156,TGN156202108-202207

MARK:17565-0L130

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0L070i2TRFE..TGN156202108-202207

MARK:17565-0L070

main17565-0L080i2TRFE..TGN156202108-202207

MARK:17565-0L080

main17565-0L090i2TRFE..TGN156202108-202207

MARK:17565-0L090

main17565-0P240i2TRFE..TGN156202108-202207

NO MARK

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0L070×3i1GDFTV,2TRFE..GUN156,TGN156202108-202207

MARK:17565-0L070

main17565-0L080×3i1GDFTV,2TRFE..GUN156,TGN156202108-202207

MARK:17565-0L080

main17565-0L090×3i1GDFTV,2TRFE..GUN156,TGN156202108-202207

MARK:17565-0L090

main17565-0P240×3i1GDFTV,2TRFE..GUN156,TGN156202108-202207

NO MARK

5151FRAME

→ Go to FIG 51-51

9008050392

main90080-50392

90109T0005

main90109-T0005

90177T0006

main90177-T0006

9155381035

main91553-81035

13 parts on this diagram · 2 diagrams in section
