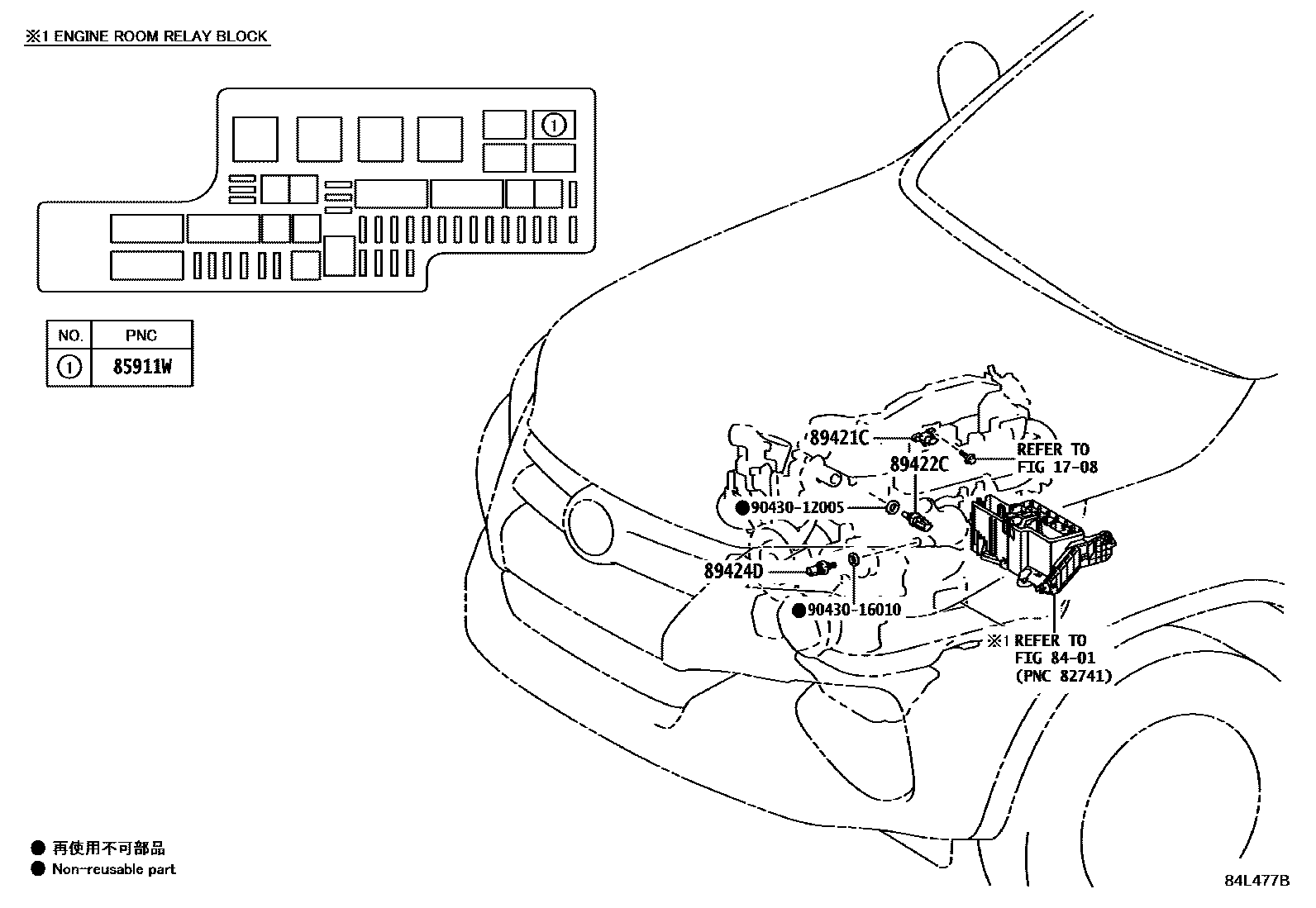

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1ENGINE ROOM 0002 1COWL

1708VACUUM PIPING

→ Go to FIG 17-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85911WRELAY, ELECTRONIC DRIVER UNIT

main90987-02027iGUN156202006-202108

(J)

main90987-T2001iGUN156202006-202108

(L)

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-71030iGUN156202006-202108

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iGUN156202006-202108

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iGUN156202006-202108

9043012005

main90430-12005

9043016010

main90430-16010

8 parts on this diagram · 2 diagrams in section
