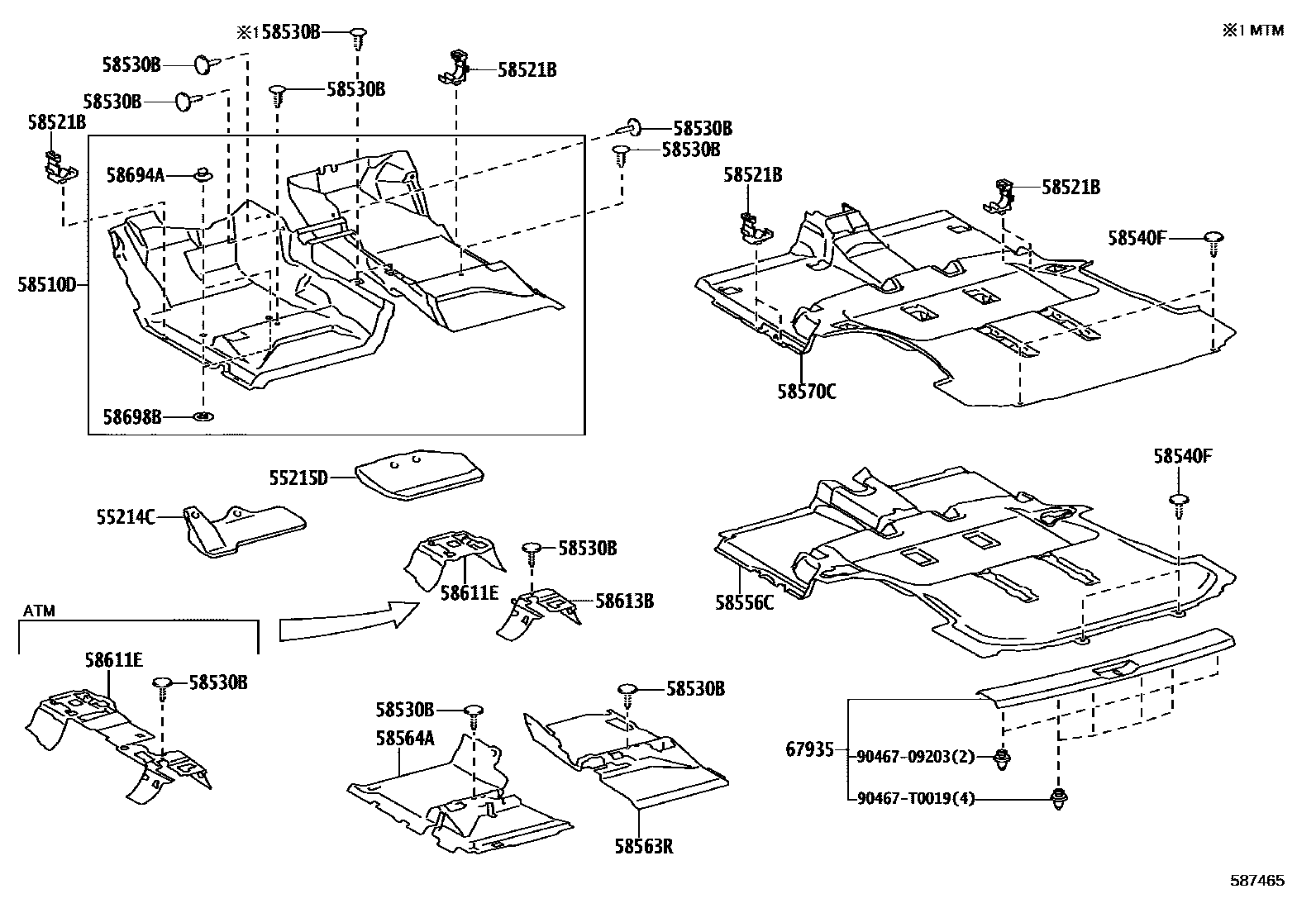

FLOOR MAT & SILENCER PAD
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM2#,4#
58540FCLIP(FOR REAR FLOOR CARPET)
BLACK,TRIM2#,4#
58556CSILENCER, REAR FLOOR
58563RSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58570CCARPET ASSY, REAR FLOOR
BLACK,TRIM2#,4#
58611ESHEET, FRONT FLOOR SILENCER
58613BSHEET, FRONT FLOOR SILENCER, CENTER
58694APLATE, MAT SET, UPPER
(L)
(J)
58698BPLATE, MAT SET, LOWER
(L)
(J)
67935PLATE, BACK DOOR SCUFF
BLACK,TRIM2#,4#
9046709203
main90467-09203
90467T0019
main90467-T0019
17 parts on this diagram · 1 diagram in section
