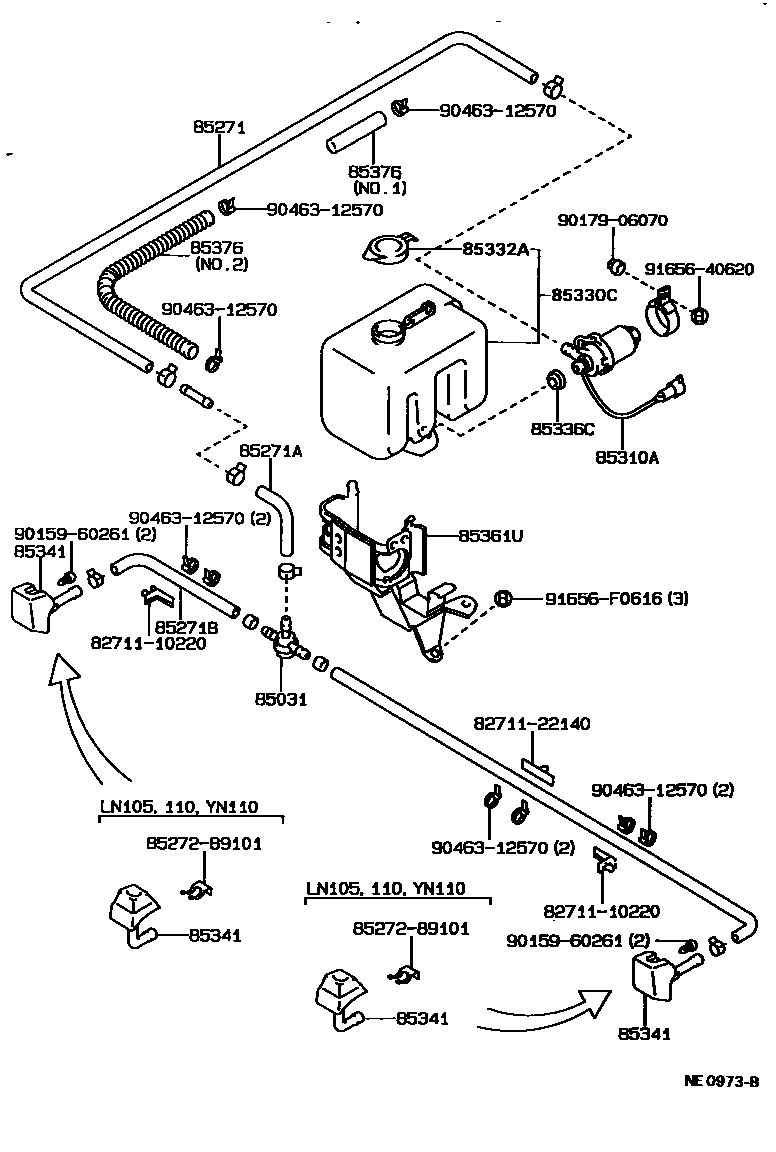

HEADLAMP CLEANER

0001 1 0002 1

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-12010iLN85..JPP..CBU;LN105,110,130,90,RN106,110,VZN130,YN110,85,90..JPP..LHD198808-199108

85271HOSE, HEADLAMP CLEANER, NO.1

main85275-35020iVZN130..JPP..LHD199208-199511

main85376-89140iRN110..JPP199108-199408

main90445-14072iLN85..JPP..CBU;LN105,110,90,YN110,85,90..JPP..LHD198808-199108

*H,L=1200

85271AHOSE, HEADLAMP CLEANER, NO.2

main85343-95700iLN105,110,85,90..JPP..LHD..T1..CBU199208-199708

L=135,FINLAND SPEC

main85375-32011iRN106,110,VZN130..JPP..LHD..(DCB,WG,XTR)199408-199708

L=35,NO.1

main85375-89133iLN130,VZN130..JPP199108-199207

main85377-89140iRN110..JPP198808-198810

main85378-89140iLN130,RN110,VZN130..JPP199108-199208

L=120,NO.2

85271BHOSE, HEADLAMP CLEANER, NO.3

main85375-12510iLN85,90,YN85,90..JPP..LHD..CBU198808-199108

main85375-89140iLN130,RN110,VZN130..JPP199108-199208

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-22100iLN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU199108-199208

main85310-89111iLN130,RN110,VZN130..JPP199108-199208

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85330-22120iLN85..JPP..CBU;LN105,110,90,YN110,85,90..JPP..LHD198808-198810

main85330-89112iLN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU199108-199207

main85351-35060iLN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU199207-199208

main85355-35021iVZN130..JPP..LHD199208-199511

main85355-35030iLN130,RN106,110,VZN130..JPP198808-199108

85332ACAP, HEADLAMP CLEANER WASHER JAR

main85332-16010iLN85..JPP..CBU;LN105,110,90,YN110,85,90..JPP..LHD198808-198810

main85332-89112iLN85..JPP..CBU;LN105,110,90,YN110,85,90..JPP..LHD198810-199108

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iLN105,110,85,90,YN110,85,90..JPP..LHD..T1..CBU199108-199208

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-89116×2iLN85,90,YN85,90..JPP..LHD..CBU198808-199108

main85035-89117×2iLN105,110,RN106,110,YN110..JPP..LHD198808-199108

main85035-89118×2iLN130,VZN130..JPP198908-199108

main85044-35010×2iVZN130..JPP..4FC199208-199511

FINLAND SPEC

main85044-35020×2iRN110..JPP199408-199508

SWEDEN SPEC & CHROME PLATE PACKAGE

85361UBRACKET, HEADLAMP CLEANER WASHER

main85361-89105iLN85..JPP..CBU;LN105,110,90,YN110,85,90..JPP..LHD198808-199108

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85375-14150iRN110..JPP198808-198810

main85375-24010iLN105,110,85,90..JPP..LHD..T1..CBU199208-199708

FINLAND SPEC,NO.1

main85376-12090iLN130,VZN130..JPP199108-199208

NO.1

main85376-89124iLN105,110,85,90..JPP..LHD..T1..CBU199208-199708

FINLAND SPEC,NO.2

main85377-20621iLN130,RN106,110,VZN130..JPP198810-199108

NO.1

main85377-22070iLN130,RN110,VZN130..JPP199108-199208

NO.2

8271110220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10220

8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22140

8527289101CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-89101

9015960261

main90159-60261

9017906070

main90179-06070

9046312570

main90463-12570

9165640620

main91656-40620

91656F0616

main91656-F0616

19 parts on this diagram · 2 diagrams in section
