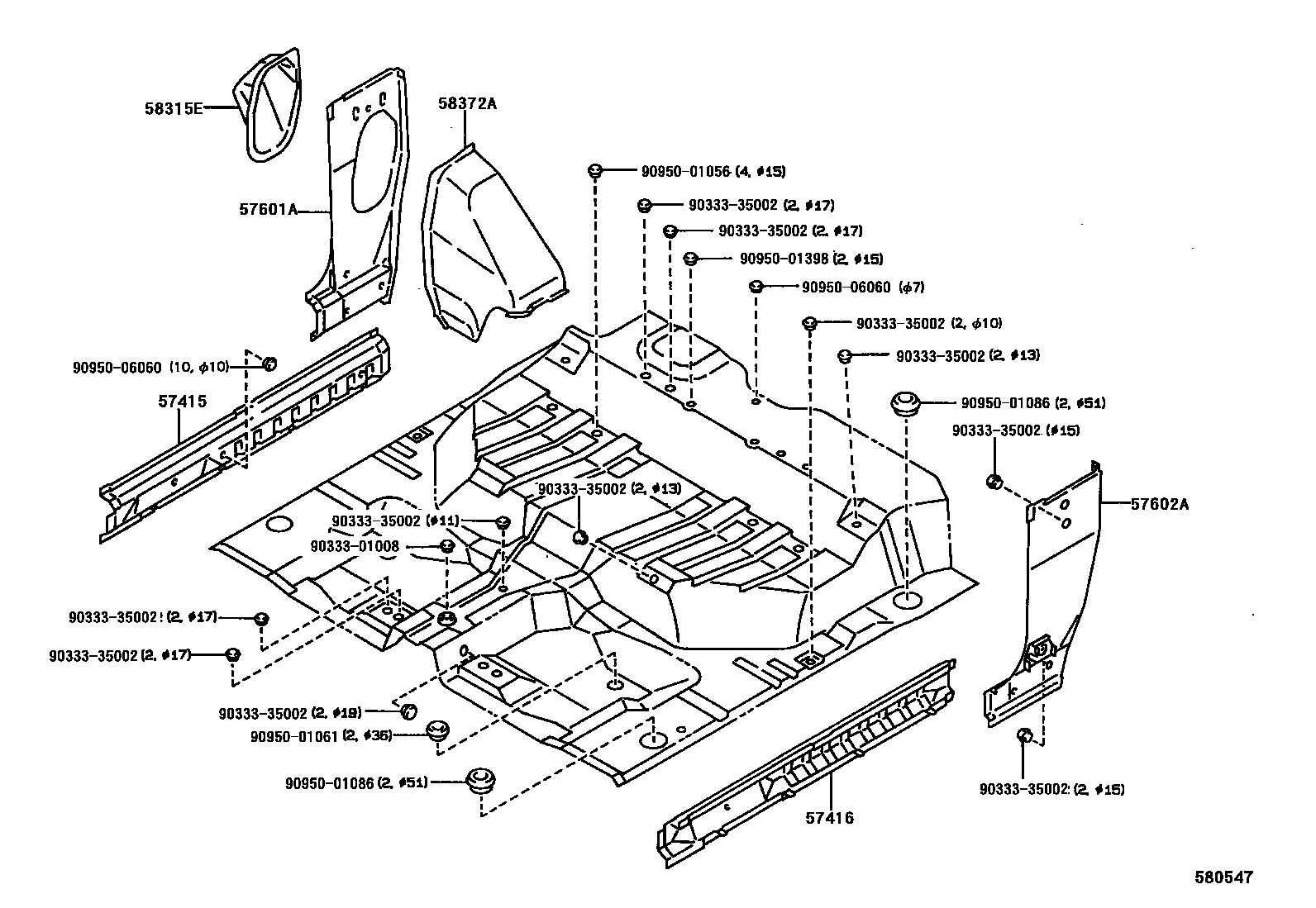

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57415RAIL, FLOOR SIDE, REAR RH

main57415-89104iLN10#,85,RN106..JPP..TW1198808

57416RAIL, FLOOR SIDE, REAR LH

main57416-89102iLN10#,85,RN106..JPP..TW1198808

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-89104iLN10#,85,RN106..JPP..TW1198808

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-89103iLN10#,85,RN106..JPP..TW1198808

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-89103iLN10#,85,RN106..JPP..TW1198808

58372AHOUSING, FUEL INLET PIPE

main58372-89103iLN10#,85,RN106..JPP..TW1198808

9033301008

main90333-01008

9033335002

main90333-35002

9095001056

main90950-01056

9095001061

main90950-01061

9095001086

main90950-01086

9095001398

main90950-01398

9095006060

main90950-06060

13 parts on this diagram · 2 diagrams in section
