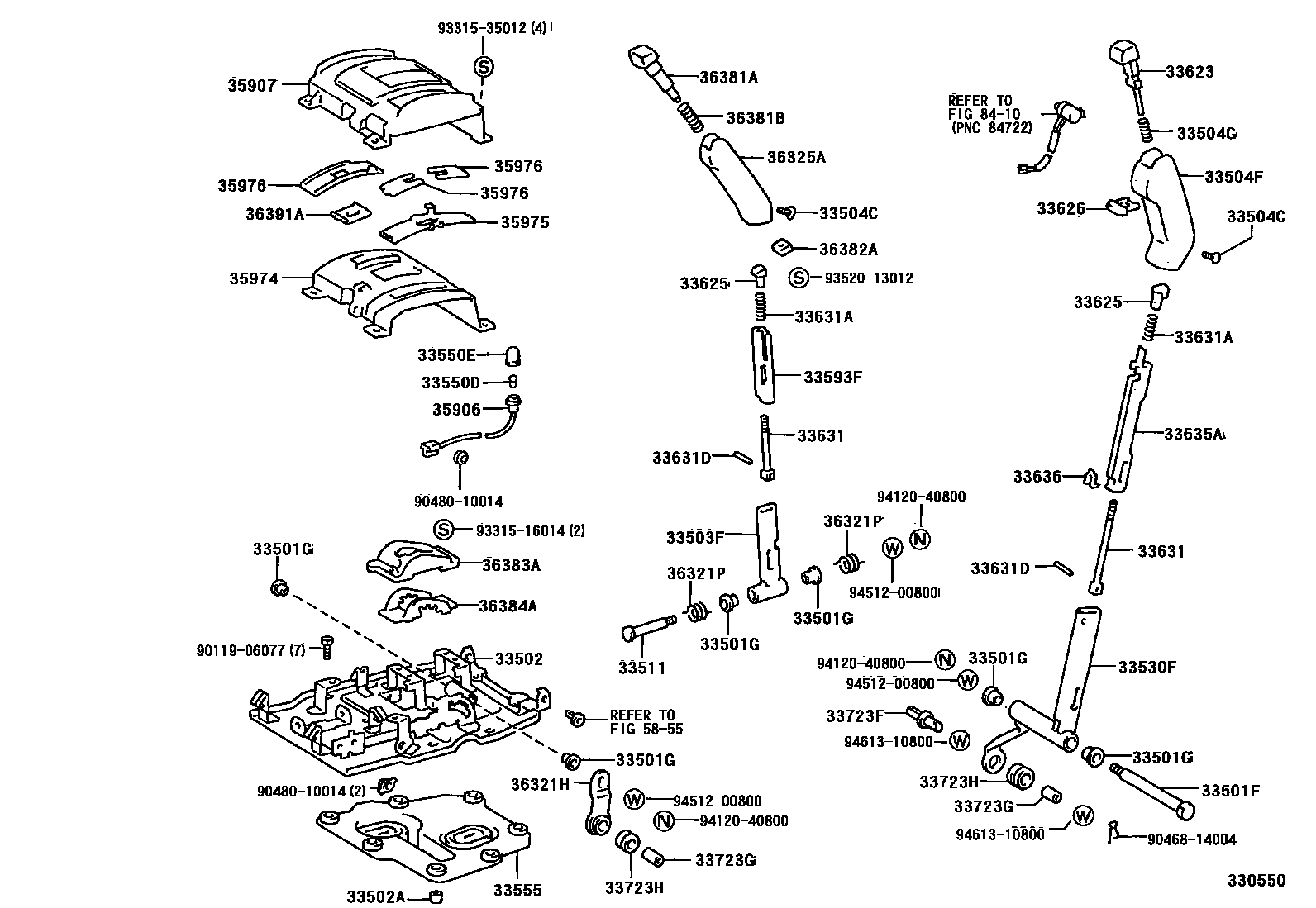

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33511-20240iVZN130..JPP..4FC199008-199511

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-11003×6iVZN130..JPP..4FC199008-199511

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-35230iVZN130..JPP..4FC199008-199511

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065×6iVZN130..JPP..4FC199008-199511

OD=8.8

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-35060iVZN130..JPP..4FC199008-199511

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40109×4iVZN130..JPP..4FC199008-199511

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14050-01iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP199008-199108

BLACK,TRIM1#,4#,8#

main33504-14050-10iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD)199108-199408

BLUE,TRIM8#

main33504-14050-33iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD)199108-199109

GRAY,TRIM1#

main33504-14050-S4iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP..(DLX,STD)199110-199708

MEDIUM GRAY,TRIM1#

main33504-20120-B1iLN130,VZN130..JPP..5F199108-199308

W(3 SPOKE LEATHER),GRAY,TRIM1#

main33504-20120-E2iKZN130,LN130,VZN130..JPP..LHD..5F199308-199511

W(3 SPOKE LEATHER),OAK,TRIM4#

main33504-35030-02iLN130,VZN130..JPP..5F198908-199108

RED,TRIM3#

main33504-35030-03iLN105,85,YN85..JPP..LHD; LN105,YN106,85..JPP..RHD;LN110,90,RN110,YN110,90..JPP198808-198901

GRAY,TRIM1#; W(3 SPOKE URETHANE),GRAY,TRIM1#

main33504-35030-04iLN105,85,YN85..JPP..LHD; LN105,YN106,85..JPP..RHD;LN110,90,RN110,YN110,90..JPP198808-198901

BLUE,TRIM8#; W(3 SPOKE URETHANE),BLUE,TRIM8#

main33504-35030-06iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP; LN130,VZN130..JPP..5F199008-199108

BROWN,TRIM4#; W(3 SPOKE URETHANE),BROWN,TRIM4#

main33504-35030-B0iLN105,85,RN106,YN106,85..JPP; LN110,130,90,RN110,VZN130,YN110,90..JPP198908-199008

MEDIUM GRAY,TRIM1#; W(3 SPOKE URETHANE),MEDIUM GRAY,TRIM1#

main33504-35030-E0iLN105,YN106,85..JPP..RHD198901-198908

BROWN,TRIM4#

main33504-35030-E2iKZN130,LN130,VZN130..JPP..LHD..5F199308-199511

OAK,TRIM4#

main33504-35030-J0iLN105,110,85,90,RN106,110,YN106,110,85,90..JPP; LN130,VZN130..JPP..5F199008-199108

MEDIUM BLUE,TRIM8#; W(3 SPOKE URETHANE),MEDIUM BLUE,TRIM8#

main33542-35070-02iVZN130..JPP..4FC199008-199108

RED,TRIM3#

main33542-35070-03iVZN130..JPP..4FC199008-199511

GRAY,TRIM1#

main33542-35070-04iVZN130..JPP..4FC199008-199511

BLUE,TRIM8#

main33542-35070-06iVZN130..JPP..4FC199008-199108

BROWN,TRIM4#

main33542-35070-E1iVZN130..JPP..4FC199308-199511

OAK,TRIM4#

33504GSPRING, COMPRESSION (FOR SHIFT LEVER KNOB)

main90501-07009iVZN130..JPP..4FC199008-199511

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-35120×2iVZN130..JPP..4FC199008-199511

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33055-35050iVZN130..JPP..4FC199008-199511

main33530-35150iRN106,110..JPP198808-199201

main33530-35151iRN106,110..JPP199201-199203

main33530-35152iRN106,110..JPP199203

main33530-35160iYN85..JPP..RHD198808-199203

main33530-35161iLN85,YN85..JPP..RHD199203

main33530-35170iLN85,90,YN85,90..JPP..LHD198808-199203

main33530-35171iLN85,90,YN85,90..JPP..LHD199203

main33530-35180iLN105,VZN130,YN106..JPP..RHD198808

main33530-35190iLN10#,110,130,VZN130,YN110..JPP..LHD..5F198808-199203

main33530-35191iLN10#,110,130,VZN130,YN110..JPP..LHD..5F199203

main33530-35220iKZN130..JPP..RHD199308-199511

main33530-35230iKZN130..JPP..LHD199308-199511

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iVZN130..JPP..4FC199008-199511

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04014iVZN130..JPP..4FC199008-199511

33555BOOT, SHIFT LEVER

main33555-35040iLN85,90,RN106,110,YN85,90..JPP198808-199201

main33555-35070iVZN130..JPP..4FC199008-199511

main33555-60030iKZN130,LN10#,110,130,RN106,110,VZN130,YN106,110..JPP..5F199201

33593FHOLDER, SPRING (FOR FLOOR SHIFT)

main33593-35010iVZN130..JPP..4FC199008-199511

33623BUTTON, SHIFT LEVER KNOB

main33623-35020-02iVZN130..JPP..4FC199008-199108

RED,TRIM3#

main33623-35020-03iVZN130..JPP..4FC199008-199511

GRAY,TRIM1#

main33623-35020-04iVZN130..JPP..4FC199008-199511

BLUE,TRIM8#

main33623-35020-06iVZN130..JPP..4FC199008-199108

BROWN,TRIM4#

33625SLEEVE, SHIFT LEVER KNOB

main33625-35020iVZN130..JPP..4FC199008-199511

TRANSFER SIDE

main33625-35040iVZN130..JPP..4FC199008-199511

TRANSMISSION SIDE

33626STOPPER, SHIFT LEVER BUTTON

main33626-35020-02iVZN130..JPP..4FC199008-199108

RED,TRIM3#

main33626-35020-03iVZN130..JPP..4FC199008-199511

GRAY,TRIM1#

main33626-35020-04iVZN130..JPP..4FC199008-199511

BLUE,TRIM8#

main33626-35020-06iVZN130..JPP..4FC199008-199108

BROWN,TRIM4#

main33626-35020-E1iVZN130..JPP..4FC199308-199511

OAK,TRIM4#

33631ROD, DETENT

main33631-12080iVZN130..JPP..4FC199008-199511

TRANSMISSION SIDE

main33631-35030iVZN130..JPP..4FC199008-199511

TRANSFER SIDE

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-07074×2iVZN130..JPP..4FC199008-199511

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04001×2iVZN130..JPP..4FC199008-199511

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-35040iVZN130..JPP..4FC199008-199511

33636GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)

main33636-35010iVZN130..JPP..4FC199008-199511

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22010iVZN130..JPP..4FC199008-199511

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90389-08005×2iVZN130..JPP..4FC199008-199511

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main90480-17177×2iVZN130..JPP..4FC199008-199511

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-35060iVZN130..JPP..4FC199008-199511

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-35130iVZN130..JPP..4FC199008-199511

35974HOUSING, POSITION INDICATOR, LOWER

main35974-35010iVZN130..JPP..4FC199008-199511

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-35050iVZN130..JPP..4FC199008-199511

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-35010iVZN130..JPP..4FC199008-199511

TRANSFER SIDE

main35976-35020×2iVZN130..JPP..4FC199008-199511

TRANSMISSION SIDE

36321HLEVER, TRANSFER SHIFT

main36321-35040iVZN130..JPP..4FC199008-199511

36321PSPRING (FOR TRANSFER SHIFT LEVER)

main90508-26068iVZN130..JPP..4FC199008-199511

FR

main90508-26069iVZN130..JPP..4FC199008-199511

RR

36325AKNOB, LEVER, NO.2

main36325-35030-02iVZN130..JPP..4FC199008-199108

RED,TRIM3#

main36325-35030-03iVZN130..JPP..4FC199008-199511

GRAY,TRIM1#

main36325-35030-04iVZN130..JPP..4FC199008-199511

BLUE,TRIM8#

main36325-35030-06iVZN130..JPP..4FC199008-199108

BROWN,TRIM4#

main36325-35030-E1iVZN130..JPP..4FC199308-199511

OAK,TRIM4#

36381ABUTTON, TRANSFER SHIFT LEVER KNOB

main36381-35020-02iVZN130..JPP..4FC199008-199108

RED,TRIM3#

main36381-35020-03iVZN130..JPP..4FC199008-199511

GRAY,TRIM1#

main36381-35020-04iVZN130..JPP..4FC199008-199511

BLUE,TRIM8#

main36381-35020-06iVZN130..JPP..4FC199008-199108

BROWN,TRIM4#

main36381-35020-E1iVZN130..JPP..4FC199308-199511

OAK,TRIM4#

36381BSPRING, COMPRESSION (FOR SHIFT LEVER KNOB)

main90501-08068iVZN130..JPP..4FC199008-199511

36382ASTOPPER, TRANSFER SHIFT LEVER BUTTON

main36382-35010iVZN130..JPP..4FC199008-199511

36383ASUPPORT, TRANSFER DETENT BLOCK

main36383-35030iVZN130..JPP..4FC199008-199511

36384ABLOCK, TRANSFER DETENT

main36384-35010iVZN130..JPP..4FC199008-199511

36391ACOVER, TRANSFER SLIDE

main36391-35010iVZN130..JPP..4FC199008-199511

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011906077

main90119-06077

9046814004

main90468-14004

9048010014

main90480-10014

9331516014

main93315-16014

9331535012

main93315-35012

9352013012

main93520-13012

9412040800

main94120-40800

9451200800

main94512-00800

9461310800

main94613-10800

50 parts on this diagram · 6 diagrams in section
