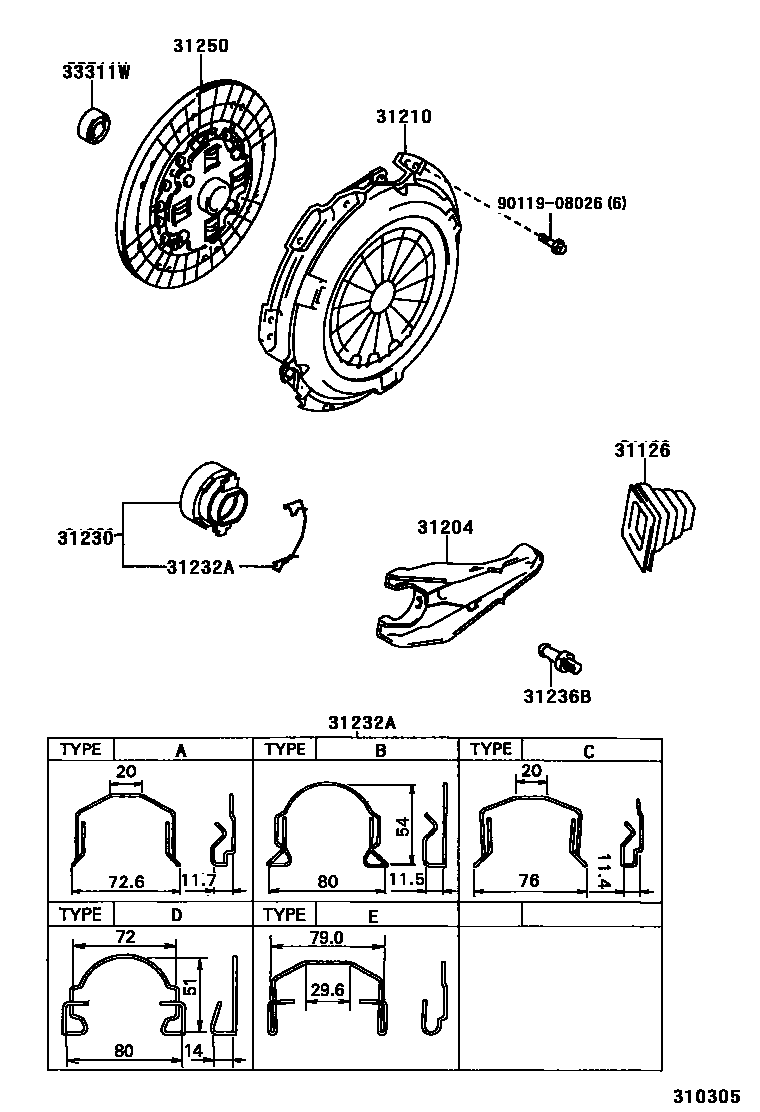

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iLN130,RN106,110,VZN130,YN106,110,85,90..JPP..5F198808-199708

main31126-20070iLN10#,110,85,90..JPP198808-199708

main31126-34010iLN130,VZN130..JPP..5F199409-199511

main31126-60080iKZN130..JPP199308-199511

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRN106,110,YN106,110,85,90..JPP198808-199708

main31204-35031iLN130,VZN130..JPP..5F198908-199511

main31204-35050iLN10#,110,85,90..JPP198808-199708

main31204-60090iKZN130..JPP199308-199511

31210COVER ASSY, CLUTCH

main31210-22120iYN85,90..JPP198812-199408

main31210-22170iLN130..JPP199210-199511

main31210-26100iYN106,110..JPP198905-199408

main31210-30240iRN106,110..JPP199208

main31210-30250iLN85,90..JPP199110-199208

main31210-30251iLN85,90..JPP199208

main31210-35060iYN106,110..JPP198808-198905

main31210-35071iVZN130..JPP..5F198908-199208

main31210-35080iYN85,90..JPP198808-198812

main31210-35090iLN10#,110,85,90..JPP198808-199110

main31210-35110iLN130,RN106,110..JPP198808-199210

main31210-35121iLN10#,110..JPP199201

main31210-35200iVZN130..JPP..5F199208-199511

main31210-60170iKZN130..JPP199308-199511

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLN10#,110..JPP199201-199708

main31230-35070iLN10#,110,130,85,90,RN106,110,VZN130..JPP..5F198808-199708

main31230-35090iYN106,110,85,90..JPP198808-199408

main31230-60170iKZN130..JPP199308-199511

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F198808-199708

TYPE A:REFER TO ILLUSTRATION

main31232-35030iLN130..JPP199001-199708

TYPE B:REFER TO ILLUSTRATION

main31232-35040iYN106,110,85,90..JPP198911-199408

TYPE C:REFER TO ILLUSTRATION

main31232-36030iKZN130..JPP199308-199511

TYPE D:REFER TO ILLUSTRATION

main31232-60030iKZN130..JPP199308-199511

TYPE E:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-30060iLN10#,110,85,90,RN106,110,YN106,110,85,90..JPP198808-199708

main31236-35030iLN130,VZN130..JPP..5F198908-199511

main31236-60060iKZN130..JPP199308-199511

31250DISC ASSY, CLUTCH

main31250-25122iYN85,90..JPP198808-199408

main31250-25130iLN10#,110..JPP199201-199508

OD=236

main31250-26180iLN10#,110..JPP199508-199612

main31250-26181iLN10#,110..JPP199612-199708

main31250-35160iVZN130..JPP..5F198908-199202

main31250-35161iVZN130..JPP..5F199202-199208

main31250-35200iLN85,90..JPP198808-199506

main31250-35201iLN85,90..JPP199506-199708

main31250-35210iYN106,110..JPP198808-198909

main31250-35211iYN106,110..JPP198909-199408

main31250-35220iLN130..JPP199201-199505

main31250-35220iLN10#,110,130..JPP198808-199201

OD=224

main31250-35221iLN130..JPP199505-199511

main31250-35230iRN110..JPP198808-198906

main31250-35231iRN106,110..JPP198906-198909

main31250-35232iRN106,110..JPP198909-199202

main31250-35233iRN106,110..JPP199202-199208

main31250-35310iVZN130..JPP..5F199208-199511

main31250-35320iRN106,110..JPP199208-199308

main31250-35321iRN106,110..JPP199308-199708

main31250-35340iKZN130..JPP199308-199511

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP..5F198808

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
