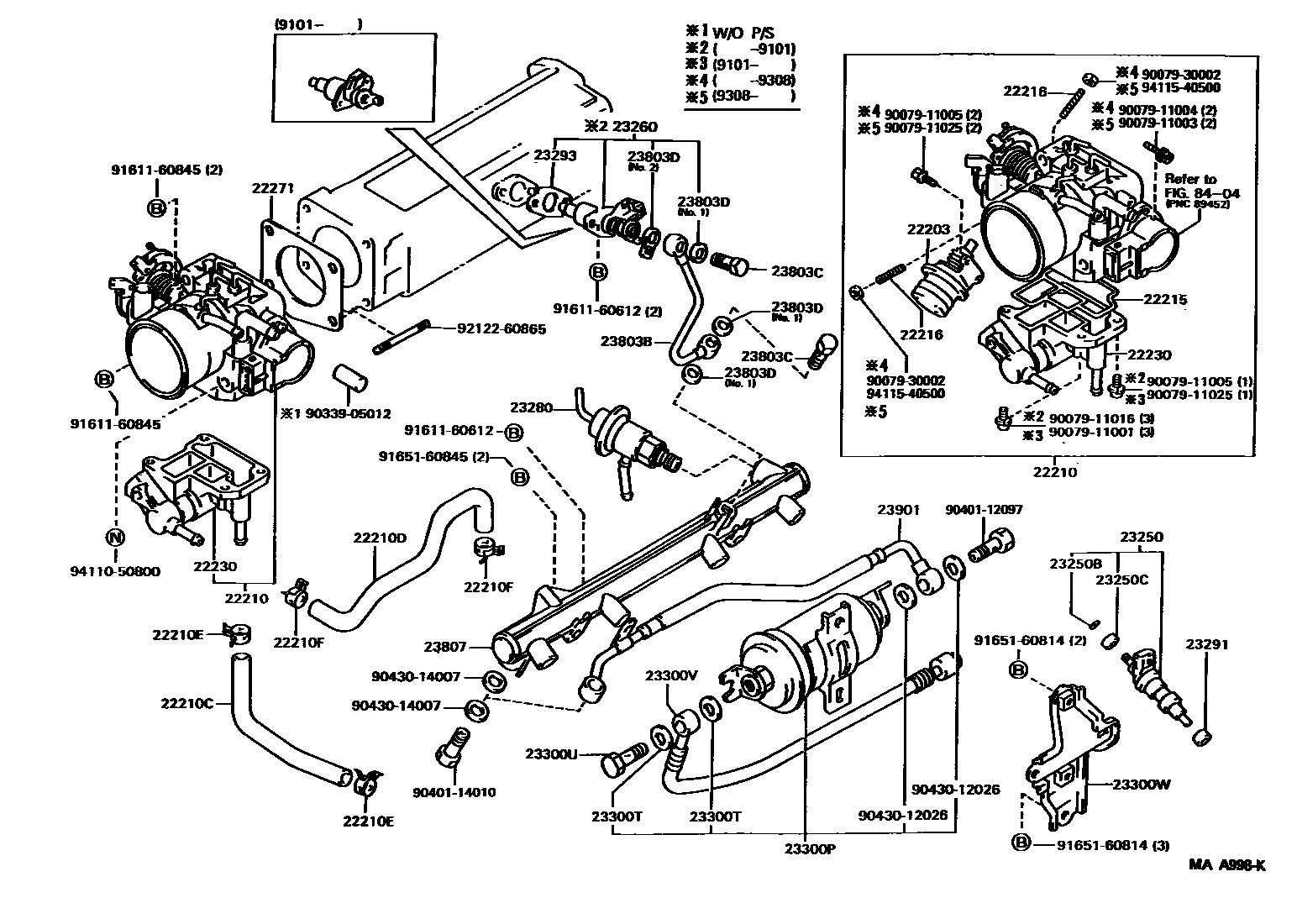

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22215GASKET, THROTTLE BODY COVER
22216SCREW, DASH POT ADJUSTING
22230VALVE ASSY, AUXILIARY AIR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23280REGULATOR ASSY, FUEL PRESSURE
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300VHOSE, FUEL(FOR FUEL INLET)
23300WBRACKET, FUEL FILTER
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
NO.1
NO.2
NO.1
NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
8404ELECTRONIC FUEL INJECTION SYSTEM
9007911001
main90079-11001
9007911003
main90079-11003
9007911004
main90079-11004
9007911005
main90079-11005
9007911016
main90079-11016
9007911025
main90079-11025
9007930002
main90079-30002
9033905012
main90339-05012
9040112097
main90401-12097
9040114010
main90401-14010
9043012026
main90430-12026
9043014007
main90430-14007
9161160612
main91611-60612
9161160845
main91611-60845
9165160814
main91651-60814
9165160845
main91651-60845
9212260865
main92122-60865
9411050800
main94110-50800
9411540500
main94115-40500
47 parts on this diagram · 4 diagrams in section
