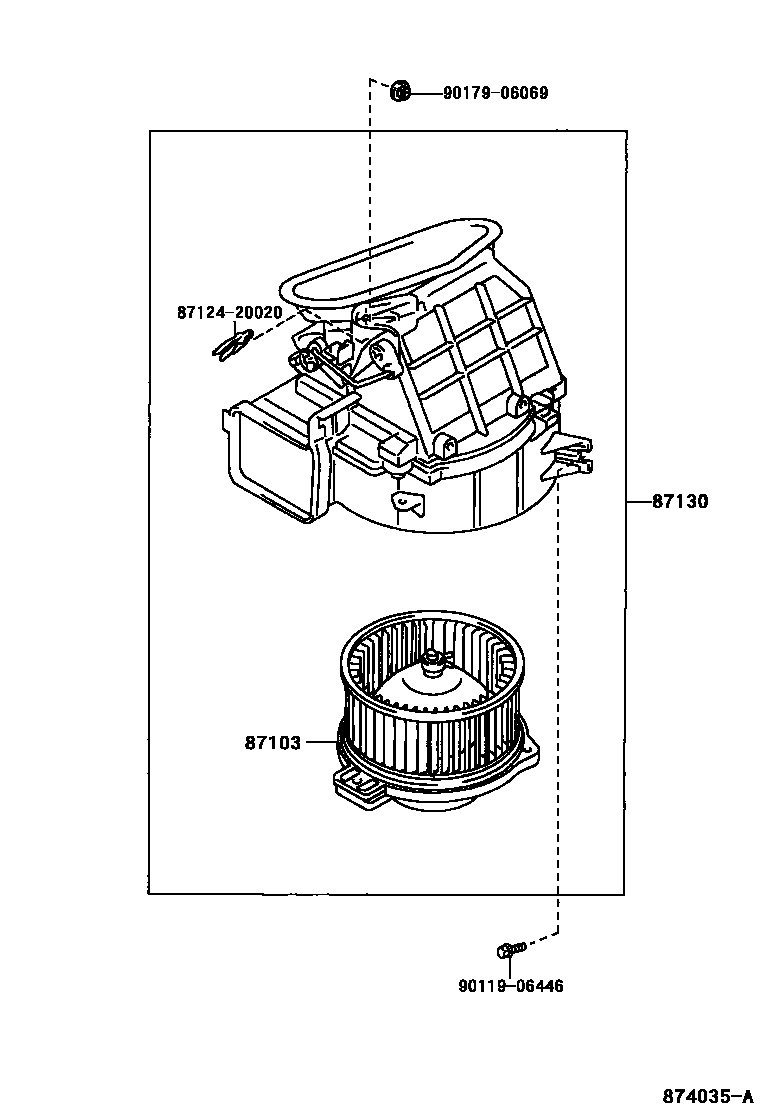

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT HEATER BLOWER 0003 1FRONT HEATER BLOWER 0004 1FRONT HEATER BLOWER 0005 1FRONT HEATER RADIATOR 0007 1FRONT HEATER RADIATOR 0008 1REAR HEATER

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-35020iRZN18#,VZN18#199511-199612

main87103-35021iRZN18#,VZN18#199612-199812

main87103-35022iRZN18#,VZN18#199812

87130BLOWER ASSY, HEATER, FRONT

main87130-35070iRZN18#,VZN18#199511-199807

main87130-35110iRZN18#,VZN18#..SR5B,SR5V199807-200008

main87130-35120iVZN18#..LULI199807

main87130-35140iVZN18#..SR5B,SR5V200008

8712420020CLAMP, HEATER

main87124-20020

9011906446

main90119-06446

9017906069

main90179-06069

5 parts on this diagram · 6 diagrams in section
