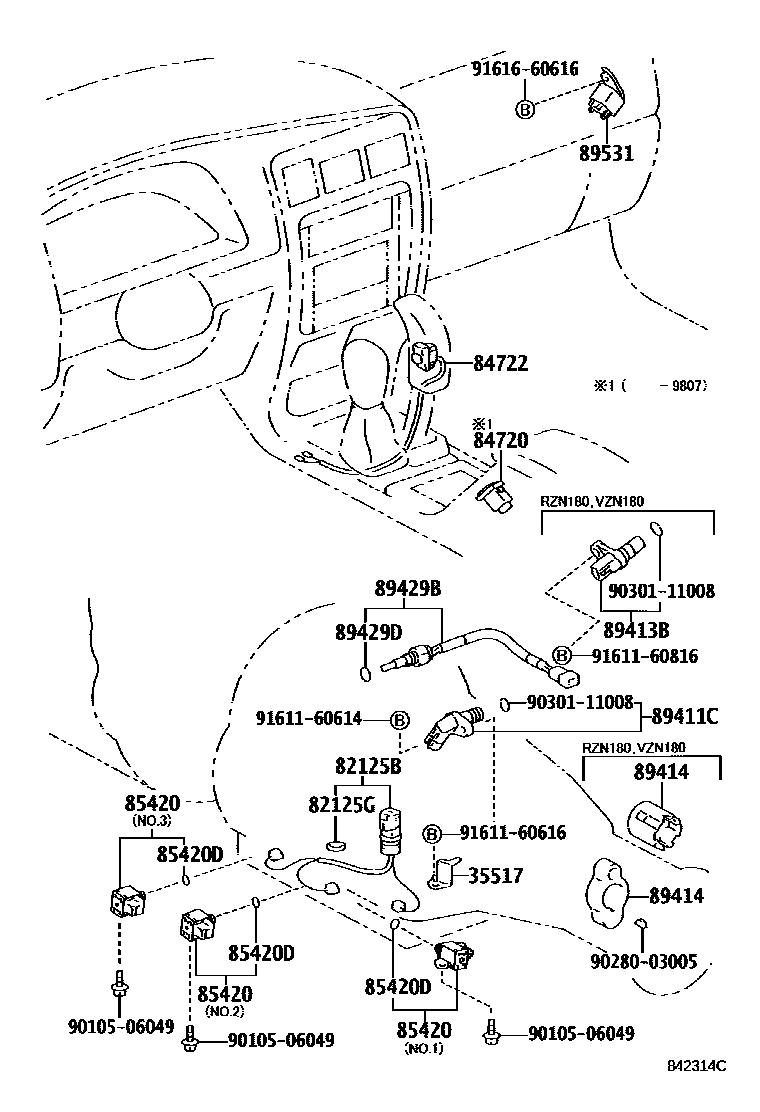

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
35517PLATE, TRANSMISSION WIRE LOCK
82125GRING, O(FOR TRANSMISSION WIRE)
84720SWITCH ASSY, PATTERN SELECT
84722SWITCH, TRANSMISSION CONTROL
BLACK,TRIM1#,4#; BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM1#,4#; BLACK,TRIM4#
BLACK,TRIM1#,4#; BLACK,TRIM4#
85420SOLENOID ASSY, TRANSMISSION
NO.1,AISIN
NO.1,DENSO
NO.2,AISIN
NO.2,DENSO
NO.3
NO.1 & NO.2 DENSO
NO.1 & NO.2 AISIN
NO.1
NO.2
NO.1 & NO.2
NO.3
NO.3,DENSO
NO.3,AISIN
85420DRING, O (FOR TRANSMISSION SOLENOID)
89411CSENSOR, SPEED
89413BSENSOR, TRANSMISSION REVOLUTION
89429BSENSOR, TEMPERATURE NO.2
89429DRING, O(FOR TEMPERATURE SENSOR)
89531RELAY, TRANSMISSION CONTROL
9010506049
main90105-06049
9028003005
main90280-03005
9030111008
main90301-11008
9161160614
main91611-60614
9161160616
main91611-60616
9161160816
main91611-60816
9161660616
main91616-60616
20 parts on this diagram · 2 diagrams in section
