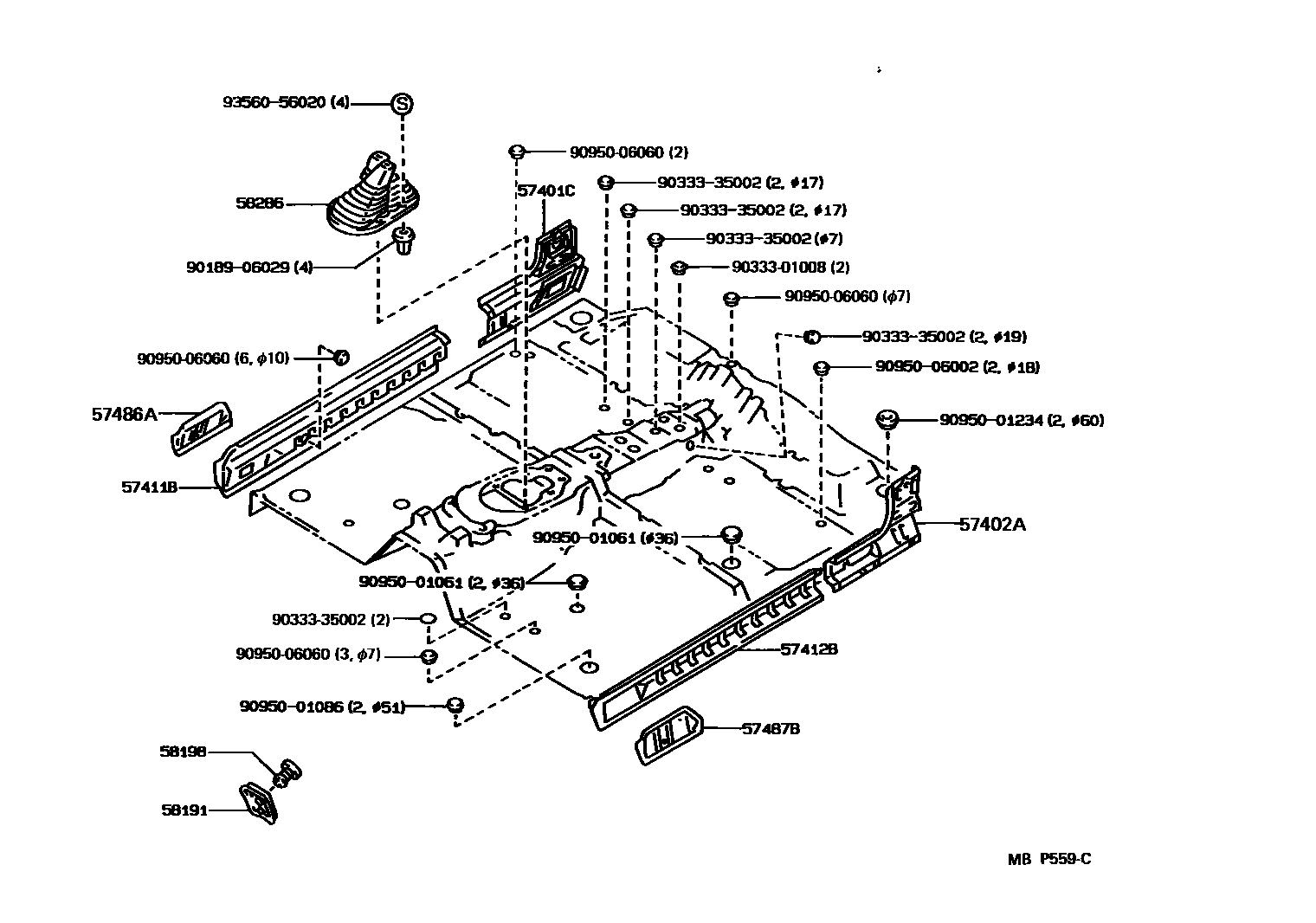

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-89114iRN10#,VZN10#198808-199501

main57401-89115iRN110,VZN110198808-199501

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-89114iRN10#,VZN10#198808-199501

main57402-89115iRN110,VZN110198808-199501

57411BMEMBER, FLOOR SIDE, INNER RH

main57411-35010iRN10#,110,13#,VZN10#,110,13#199008-199511

main57411-89104iRN10#,110,13#,VZN10#,110,13#198808-199008

57412BMEMBER, FLOOR SIDE, INNER LH

main57412-35010iRN10#,110,13#,VZN10#,110,13#199008-199511

main57412-89106iRN10#,110,13#,VZN10#,110,13#198808-199008

57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-89104iRN10#,110,13#,VZN10#,110,13#198808-199511

57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-89102iRN10#,110,13#,VZN10#,110,13#198808-199511

58191FOOTREST, FRONT FLOOR

main58192-89101iRN10#,110,13#,VZN10#,110,13#198808-199511

58198CLIP, FOOTREST

main58198-89101×2iRN10#,110,13#,VZN10#,110,13#198808-199511

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-35050iRN13#,VZN13#..5F199308-199511

main58280-35060iVZN110..R..SR5199308-199501

main58280-35070-B0iRN10#,110,VZN100,110..(G,R)..DLX199308-199501

GRAY,TRIM1#

main58280-35070-J0iRN10#,110,VZN100,110..(G,R)..DLX199308-199501

BLUE,TRIM8#

main58280-89116iRN101,110,13#,VZN13#..(G,R)..SR5198808-199308

main58280-89117iVZN100,110..R..SR5198808-199308

main58280-89119iRN101,110,13#..W..SR5198808-199208

main58280-89120-02iRN10#,110,VZN10#,110..(G,R)..DLX198808-199108

RED,TRIM3#

main58280-89120-03iRN10#,110,VZN10#,110..(G,R)..DLX198808-199108

GRAY,TRIM1#

main58280-89120-04iRN10#,110,VZN10#,110..(G,R)..DLX198808-199108

BLUE,TRIM8#

main58280-89120-06iRN10#,110,VZN10#,110..(G,R)..DLX198808-199108

BROWN,TRIM4#

main58280-89120-R9iRN10#,110,VZN10#,110..(G,R)..DLX199108-199308

BLUE,TRIM8#

main58280-89120-S4iRN10#,110,VZN10#,110..(G,R)..DLX199108-199308

GRAY,TRIM1#

main58280-89121-02iRN10#,110..W..DLX198808-199108

RED,TRIM3#

main58280-89121-03iRN10#,110..W..DLX198808-199108

GRAY,TRIM1#

main58280-89121-04iRN10#,110..W..DLX198808-199108

BLUE,TRIM8#

main58280-89121-06iRN10#,110..W..DLX198808-199108

BROWN,TRIM4#

main58280-89121-R9iRN10#,110..W199108-199501

BLUE,TRIM8#

main58280-89121-S4iRN10#,110..W199108-199501

GRAY,TRIM1#

9018906029

main90189-06029

9033301008

main90333-01008

9033335002

main90333-35002

9095001061

main90950-01061

9095001086

main90950-01086

9095001234

main90950-01234

9095006002

main90950-06002

9095006060

main90950-06060

9356056020

main93560-56020

18 parts on this diagram · 4 diagrams in section
