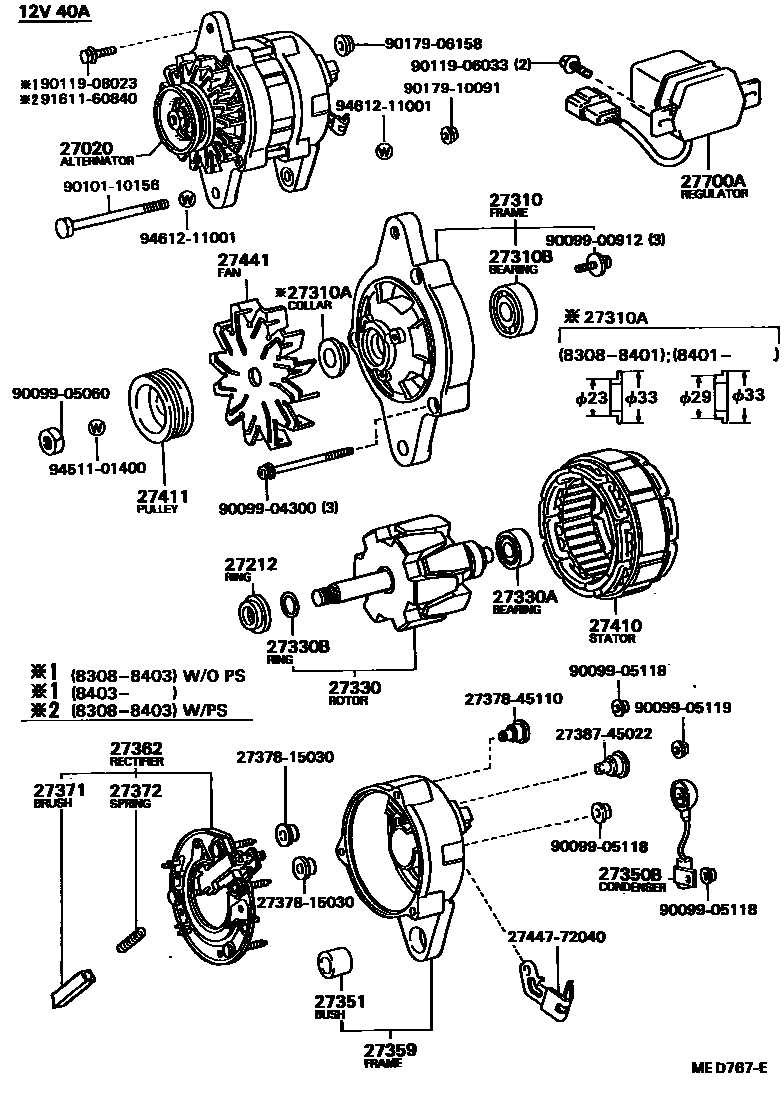

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 112V 70A 0007 1 0008 1 0009 1 0010 1 0011 1 0013 1

27020ALTERNATOR ASSY

main27020-18011i22R..RN5#198601-198808

12V 40A,12V 40A

main27020-54012iL..LN55..EUR198308-198408

12V 55A,12V 55A

main27020-54021iL..LN50,55..ARL,GEN,SA198308-198408

12V 40A,12V 40A

main27020-54160i2L..LN6#..ARL198708-198903

12V 55A,12V 55A

main27020-54180i2L..LN56,65..LHD..EUR198612-198912

12V 60A,12V 60A

main27020-54190i2L..LN51,56,6#..ARL,GEN,SA198308-198903

12V 40A,12V 40A

main27020-54191i2L..LN5#,65199101-199202

12V 40A

main27020-54192i2L..LN5#,65199202-199508

12V 40A

main27020-54344i2L,3L..LN5#,67199508-199807

12V 40A,12V 40A

main27020-72010i2Y,4Y..YN56,67..LHD..EUR198612-198808

12V 55A,12V 55A

main27020-72030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A,12V 40A

main27060-35061i22REC..RN61198712-198903

12V 60A,12V 60A

main27060-35160i22R..RN67;22R..RN58..SR5199407-199807

12V 70A,12V 70A

main27060-72061i4YE..YN63198608-198808

12V 60A,12V 60A

main27060-72062i4YE..YN63198808-198903

12V 60A,12V 60A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A

main27333-57060i2L..LN51,56,6#198308-199202

12V 40A,55A,60A

main27412-54040iL..LN50,55198308-198408

12V 40A,55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15030i1Y#,2Y,3Y..YN5#,6#198308-198401

12V 40A

main27310-18010i22R..RN5#198601-198808

12V 40A

main27310-35061i22REC..RN61198712-198812

12V 60A

main27310-35120i22REC..RN61198812-198903

12V 60A

main27310-35160i22R..RN67;22R..RN58..SR5199407-199807

12V 70A

main27310-43100i4YE..YN63198608-198903

12V 60A

main27310-54012iL..LN50,55198308-198408

12V 40A,55A

main27310-54110i2L..LN51,56,6#..ARL,GEN,SA198308-199202

12V 40A

main27310-54111i2L,3L..LN5#,6#199202-199807

12V 40A

main27310-54130i2L..LN6#..ARL198708-198903

12V 55A

main27310-72030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198401-199807

12V 40A

main27310-72041i2Y,4Y..YN56,67..LHD..EUR198612-198808

12V 55A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-15150i2Y,4Y..YN56,67..LHD..EUR198612-198808

12V 55A

main27412-16030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198401-199807

12V 40A

main27412-31040i1Y#,2Y,3Y..YN5#,6#198308-198401

12V 40A

main27412-57060i2L,3L..LN51,56,57,6#198308-199807

12V 40A,55A

main90099-19251iL..LN50,55198308-198408

12V 40A,55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10120iL..LN50,55198308-198408

12V 40A,55A

main90099-10125i22R..RN5#198601-198808

12V 40A

main90099-10126i1Y#,2Y,3Y..YN5#,6#198308-198401

12V 40A

main90099-10137i2L,3L..LN51,56,57,6#198308-199807

12V 40A,55A,60A

main90099-10142i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198401-199807

12V 40A,55A

main90099-10159i22REC,4YE..RN61,YN63198608-198903

12V 60A

main90099-10199i22R..RN67;22R..RN58..SR5199407-199807

12V 70A

27330ROTOR ASSY, ALTERNATOR

main27330-26050i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A

main27330-54011iL..LN55..EUR198308-198408

12V 55A

main27330-54040iL..LN50,55..ARL,GEN,SA198308-198408

12V 40A

main27330-56140i2L..LN51,56,6#..ARL,GEN,SA198308-199202

12V 40A

main27330-56142i2L,3L..LN5#,6#199202-199807

12V 40A

main27330-63010i2Y,4Y..YN56,67..LHD..EUR198612-198808

12V 55A

main27330-64010i2L..LN56,65..EUR198308-198912

12V 55A

main27330-64030i2L..LN56,65..LHD..EUR198612-198912

12V 60A

main27330-72100i4YE..YN63198608-198709

12V 60A

main27330-72101i22REC,4YE..RN61,YN63198709-198903

12V 60A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A,55A

main90099-10140i22REC,4YE..RN61,YN63198608-198903

12V 60A

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A

main90099-07103i2L..LN51,56,6#198308-199202

12V 40A,55A,60A

main90099-07108iL..LN50,55198308-198408

12V 40A,55A

27350FRAME ASSY, RECTIFIER END

main27350-54010iL..LN50,55198308-198408

12V 40A,55A

main27350-54130i2L..LN6#..ARL198708-198903

12V 55A

main27350-54190i2L,3L..LN51,56,57,6#..ARL,GEN,SA198308-199807

12V 40A

27350BCONDENSER, ALTERNATOR

main90099-52065i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A,55A

main90099-52066iL..LN55..EUR198308-198408

12V 55A

main90099-52082i2L..LN56,65..LHD..EUR198708-198912

12V 60A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A,55A

main27351-56013iL,2L,3L..LN5#,6#198308-199807

12V 40A,55A,60A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i22R..RN5#198601-198808

12V 40A

main27359-16011i22R..RN67;22R..RN58..SR5199407-199807

12V 70A

main27359-72010i2Y,4Y..YN56,67..LHD..EUR198612-198808

12V 55A

main27359-72030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A

27362RECTIFIER ASSY, W/BRUSH

main27362-18011i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A

main27362-63011i2Y,4Y..YN56,67..LHD..EUR198612-198808

12V 55A

27371BRUSH, ALTERNATOR

main27371-31011×2i22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6#198308-199407

12V 40A,55A

main27371-54412×2i2L,3L..LN5#,6#199202-199807

12V 40A

main27371-56070×2iL,2L..LN5#,6#198308-199202

12V 40A,55A,60A

main27371-63020×2i22REC,4YE..RN61,YN63198608-198903

12V 60A

main27371-70300×2i22R..RN67;22R..RN58..SR5199407-199807

12V 70A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6#198308-199407

12V 40A,55A

main27372-56070×2iL,2L,3L..LN5#,6#198308-199807

12V 40A,55A,60A

main27372-63020×2i22R..RN67;22R..RN58..SR5199407-199807

12V 70A

main27372-72100×2i22REC,4YE..RN61,YN63198608-198903

12V 60A

27410STATOR ASSY, ALTERNATOR

main27410-15030i22R,1Y#,2Y,3Y,4Y..RN5#,YN5#,6#198308-198705

12V 40A

main27410-38120i4Y..YN6#;4Y..YN58..4F;4Y..YN58..SR5;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#..4F,4FC,4H,5F198705-199807

12V 40A

main27410-43040i2Y,4Y..YN56,67..LHD..EUR198612-198808

12V 55A

main27410-54020iL..LN50,55..ARL,GEN,SA198308-198408

12V 40A

main27410-54021iL..LN50,55..ARL,GEN,SA198408-198408

12V 40A

main27410-54180i2L..LN56,65..LHD..EUR198612-198912

12V 60A

main27410-54190i2L,3L..LN5#,6#..ARL,GEN,SA198408-199807

12V 40A

main27410-57060i2L..LN65..GEN;2L..LN51,56,60198308-198408

12V 40A

main27410-64010iL,2L..LN55,65..EUR198308-198408

12V 55A

27411PULLEY, ALTERNATOR

main27411-16180i4YE..YN63198709-198808

12V 60A

main27411-16210i4YE..YN63198808-198812

12V 60A

main27411-16211i4YE..YN63198812-198903

12V 60A

main27411-31042i22R..RN5#198601-198808

12V 40A

main27411-35061i22REC..RN61198712-198808

12V 60A

main27411-35062i22R..RN67;22R..RN58..SR5199407-199807

12V 70A

main27411-54020iL..LN50,55198308-198408

12V 40A,55A

main27411-54170i2L..LN51,56,6#198308-199202

12V 40A,55A

main27411-54171i2L..LN5#,65199202-199508

12V 40A

main27411-54351i2L,3L..LN5#,67199508-199807

12V 40A

main27411-63081i4YE..YN63198608-198709

12V 60A

main27411-72040i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A,55A

27441FAN, ALTERNATOR

main27441-34030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;22R,1Y#,2Y#,3Y,4YC..RN50,55,YN5#,60,65..4F,4FC,4H,5F198308-199807

12V 40A

main27441-54040iL..LN50,55198308-198408

12V 40A,55A

main27441-56090i2L..LN65..RHD..EUR198612-198808

12V 55A

main27441-63030i2Y,4Y..YN56,67..LHD..EUR198612-198808

12V 55A

main27441-64030i2L..LN56,65..LHD..EUR198612-198912

12V 60A

27700AREGULATOR ASSY, GENERATOR

main27700-63021i22REC..RN61198712-198812

main27700-64030i2L..LN56,65..LHD..EUR198612-198912

12V 60A

main27700-66040i22R..RN67;22R..RN58..SR5199407-199807

12V 70A

main27700-70030i22REC,4YE..RN61,YN63198812-198903

main27700-72030iL,22R,2L,1Y#,2Y#,3Y,4Y,4YC..LN5#,6#,RN5#,YN5#,6#198308-199407

main27700-72040i4YE..YN63198608-198812

2737815030INSULATOR, ALTERNATOR, NO.1

main27378-15030

2737845110INSULATOR, ALTERNATOR, NO.1

main27378-45110

2738745022INSULATOR, TERMINAL

main27387-45022

2744772040CLIP, ALTERNATOR CORD

main27447-72040

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110156

main90101-10156

9011906033

main90119-06033

9011908023

main90119-08023

9017906158

main90179-06158

9017910091

main90179-10091

9161160840

main91611-60840

9451101400

main94511-01400

9461211001

main94612-11001

36 parts on this diagram · 12 diagrams in section
