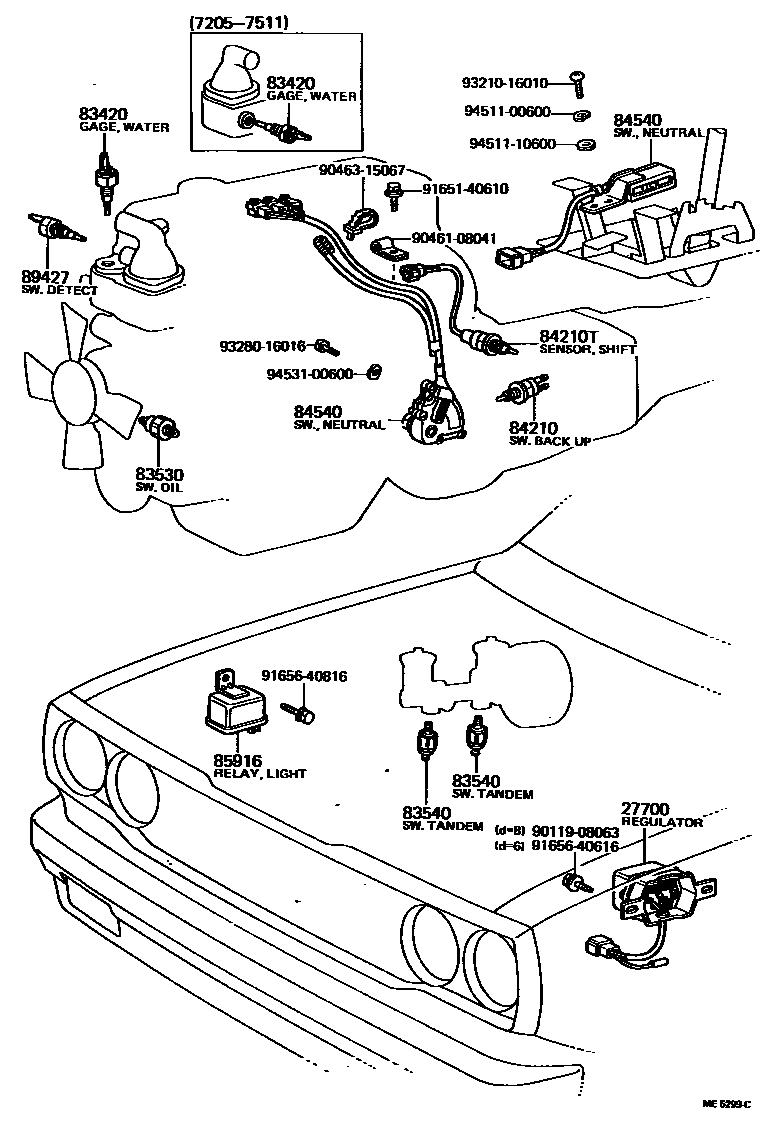

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

27700REGULATOR ASSY, GENERATOR

main27700-33010i12R..RN2#197205-197309

main27700-36010i12R,18R..RN2#197309-197708

main27700-36020i12R#,18R..RN2#197708-197807

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20011iRN2#197511-197807

main83430-89101iRN2#197205-197401

main83430-89102iRN2#197401-197511

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-36011iRN2#197205-197807

83540SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER)

main84390-30011×2iRN2#197205-197807

84210SWITCH ASSY, BACK-UP LAMP

main84210-14010iRN22..5F197702-197807

main84210-26010iRN2#..4F,4H197205-197807

84210TSENSOR ASSY, SHIFT POINT

main84220-35011iRN20,25..RHD..4F197605-197807

main84220-35020iRN20,25..4H197605-197710

main84220-35040iRN20,25..4H197710-197807

AUSTRALIA N.S.W. SPEC.

84540SWITCH ASSY, NEUTRAL START

main84540-22031iRN22..ATM197404-197708

main84540-22140iRN22..ATM197708-197807

85916RELAY, LIGHT CONTROL

main85916-12010iRN2#197611-197706

main85916-20010iRN2#197205-197611

main85916-35010iRN2#197706-197807

89427SWITCH, TEMPERATURE DETECT

main89428-12030iRN20,25..RHD197605-197807

main89428-26010iRN20,25..4H197702-197807

AUSTRALIA N.S.W. SPEC.

9011908063

main90119-08063

9046108041

main90461-08041

9046315067

main90463-15067

9165140610

main91651-40610

9165640616

main91656-40616

9165640816

main91656-40816

9321016010

main93210-16010

9328016016

main93280-16016

9451100600

main94511-00600

9451110600

main94511-10600

9453100600

main94531-00600

20 parts on this diagram · 4 diagrams in section
