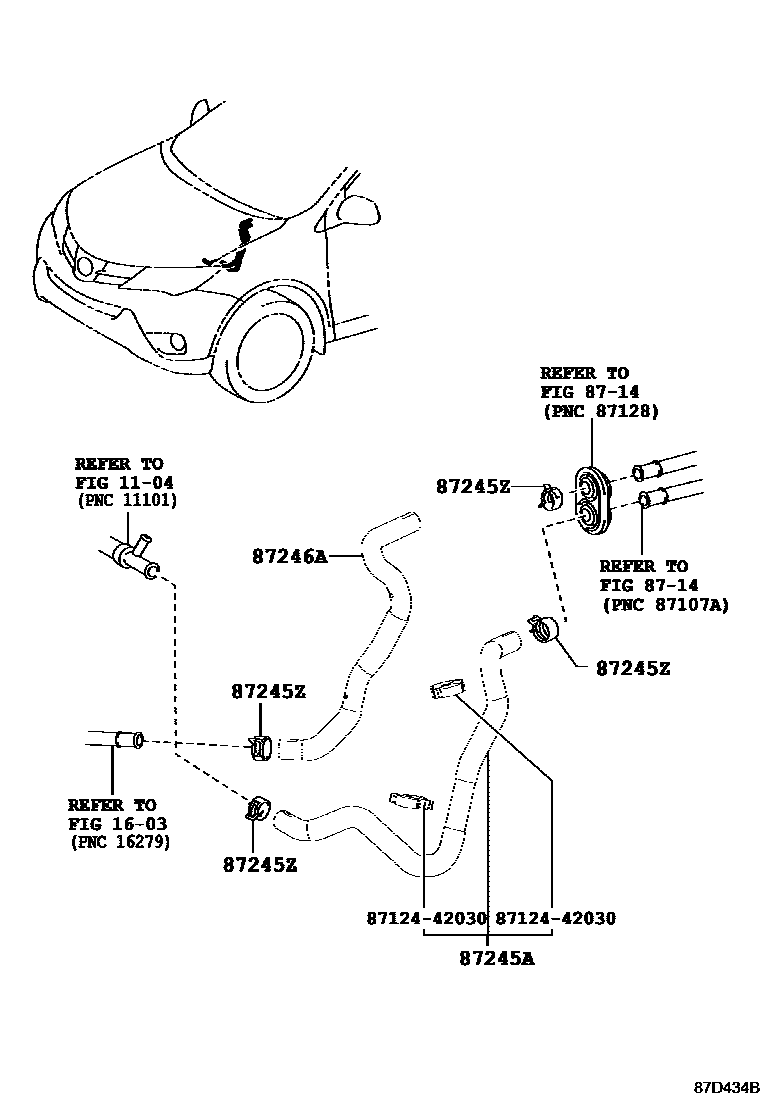

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1COLD AREA SPEC 0003 1COLD AREA SPEC 0004 1 0006 1 0008 1 0009 1 0010 1 0011 1COLD AREA SPEC

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87209-42160iALA4#201212-201503

main87209-42161iALA4#201503-201510

main87209-42170iASA44..X..EUR;ASA44..JPP..(G,M)201510-201810

main87209-42210iZSA44..6F201212-201510

main87245-42500iZSA44..A201212-201504

main87245-48C90iZSA44..RHD..(G,M);ZSA4#..JPP..LHD..CVT201510-201810

main87245-42650iWWA42..LHD..(G,M)201608-201805

COLD AREA SPEC & WITH(STEERING HEATER)

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96136-42501×3iALA49,ASA44; AVA4#; WWA42,ZSA4#; WWA42..LHD201510-201511

COLD AREA SPEC

main96138-42501×3iASA44..X..EUR;ALA49..JPP..DCRL;ASA44..JPP..(G,M);ALA49..JPP..X..DCRE; AVA4#; ZSA42..JPP..X;ZSA44..LHD..EUR;ZSA44..RHD..(G,M);ZSA44..JPP..M..RUS;ZSA42..JPP..B..(G,M);ZSA44..JPP..B..(G,X)201511-201810

87246HOSE, HEATER WATER, OUTLET

main87245-78080iAVA4#201510-201810

87246AHOSE, HEATER WATER, OUTLET A

main87245-42470iZSA44..A201212-201504

main87245-42480iALA4#201212-201503

main87245-42481iALA4#201503-201510

main87245-42540iASA44..RUP;ASA44..JPP..X..RUS201510

main87245-42590iALA49..RUP;ALA49..(G,M)..DCRE201510

main87245-42630iWWA42; WWA42..LHD201510-201805

COLD AREA SPEC

main87245-48B60iZSA44..RHD..(G,M);ZSA4#..JPP..LHD..CVT201510-201810

8712442030CLAMP, HEATER

main87124-42030

8 parts on this diagram · 9 diagrams in section
