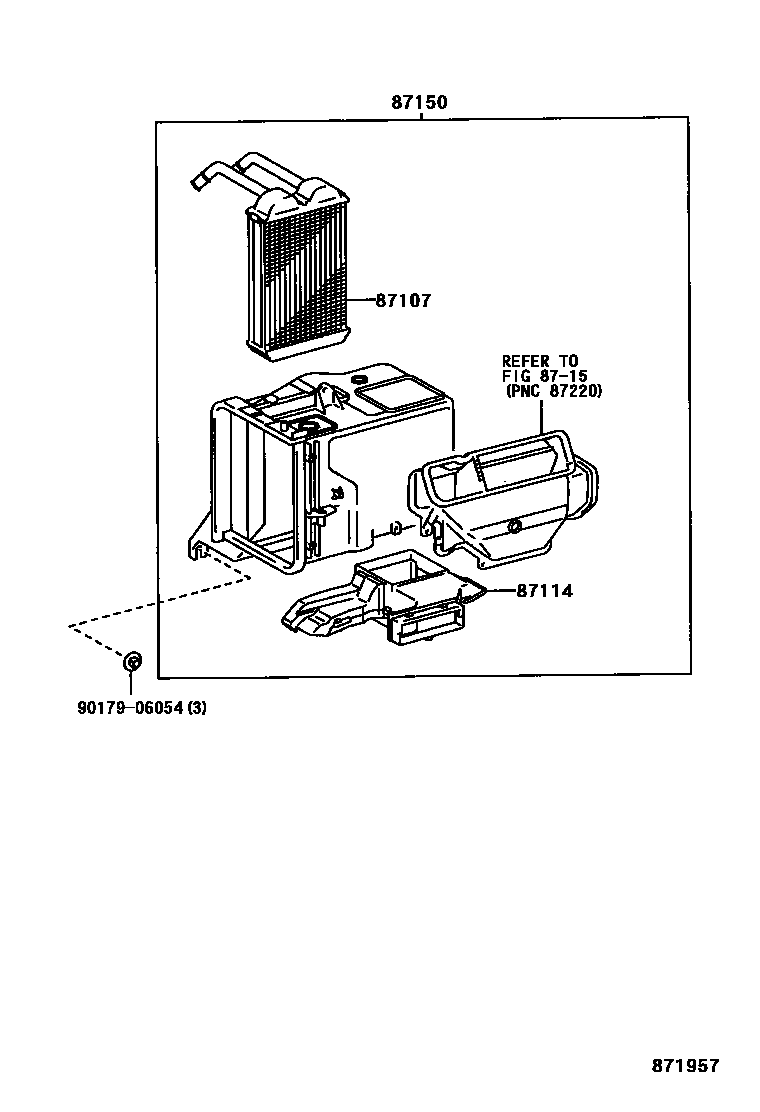

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1RADIATOR HEATER 0002 1RADIATOR HEATER 0003 1BLOWER HEATER

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-10340iSXA1#199608

COLD SPEC

main87107-10350iSXA1#199603

main87107-42030iSXA1#199511-199603

main87107-42040iSXA1#199511-199603

COLD SPEC

main87107-42060iSXA1#199603-199608

COLD SPEC

87114COVER, HEATER

main87114-10080iSXA1#199511

main87114-10090iSXA1#199511

COLD SPEC

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-42030iSXA1#199511-199603

main87150-42031iSXA1#199603

main87150-42040iSXA1#199511-199603

COLD SPEC

main87150-42041iSXA1#199603-199608

COLD SPEC

main87150-42060iSXA1#199608

COLD SPEC

9017906054

main90179-06054

5 parts on this diagram · 3 diagrams in section
