E
EPC Data

FLOOR MAT & SILENCER PAD

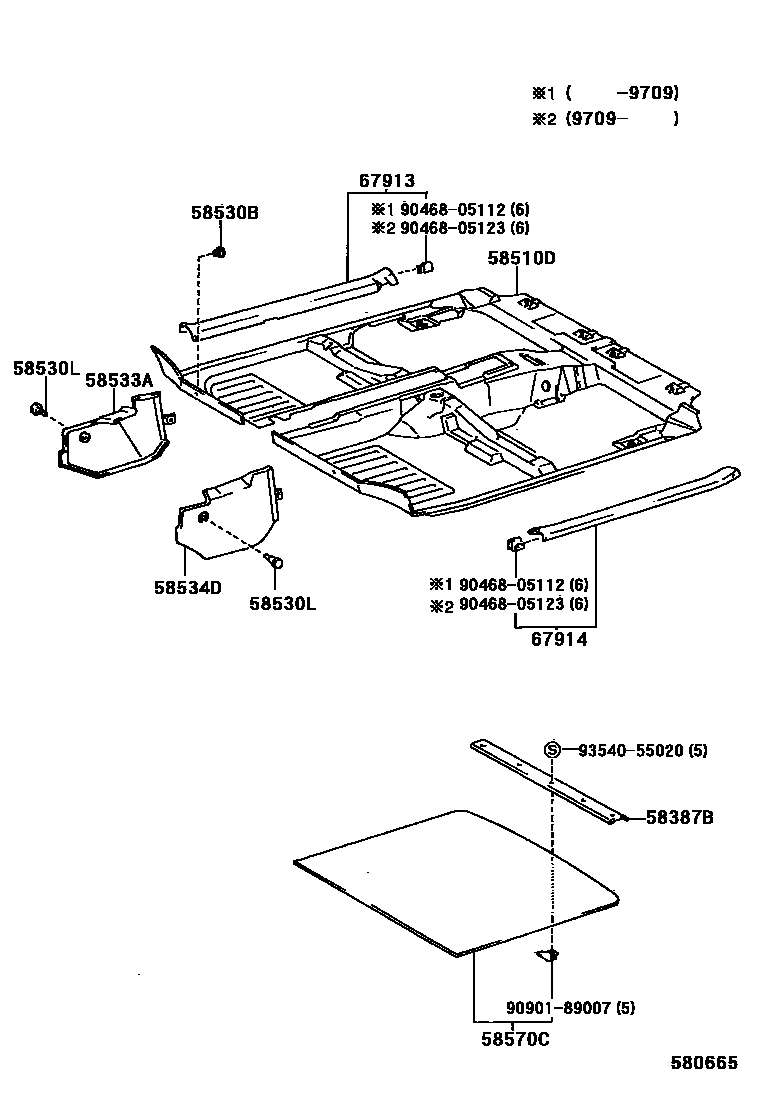

Parts diagram
58387BPLATE, REAR FLOOR FINISH
main58387-42010-B0i199511-199709
BLUISH GRAY,TRIM1#
main58387-42010-B1i199709
SHADOW GRAY,TRIM1#
58510DCARPET ASSY, FLOOR, FRONT
main58510-42040-B1i199606-199608
BLUISH GRAY,TRIM1#
main58510-42041-B1i199608-199709
BLUISH GRAY,TRIM1#
main58510-42050-B1i199511-199606
COLD AREA SPEC,BLUISH GRAY,TRIM1#
main58510-42051-B1i199608-199709
COLD AREA SPEC & CANADA SPEC,BLUISH GRAY,TRIM1#; COLD AREA SPEC,BLUISH GRAY,TRIM1#
main58510-42090-B1i199511-199606
BLUISH GRAY,TRIM1#
main58510-42091-B1i199608-199709
BLUISH GRAY,TRIM1#
main58510-42100-B1i199511-199606
COLD AREA SPEC,BLUISH GRAY,TRIM1#
main58510-42101-B1i199608-199709
COLD AREA SPEC & CANADA SPEC,BLUISH GRAY,TRIM1#; COLD AREA SPEC,BLUISH GRAY,TRIM1#
main58510-42151-B0i199608-199709
BLUISH GRAY,TRIM1#
main58510-42161-B0i199608-199709
COLD AREA SPEC,BLUISH GRAY,TRIM1#
main58510-42171-B0i199608-199709
BLUISH GRAY,TRIM1#
main58510-42181-B0i199608-199709
COLD AREA SPEC,BLUISH GRAY,TRIM1#
main58510-42230-B0i199709
BLUISH GRAY,TRIM1#
main58510-42240-B0i199709
COLD SPEC,BLUISH GRAY,TRIM1#
main58510-42280-B0i199712
BLUISH GRAY,TRIM1#
main58510-42290-B0i199712
COLD AREA SPEC,BLUISH GRAY,TRIM1#
main58510-42340-B0i199709
BLUISH GRAY,TRIM1#
main58510-42350-B0i199709
COLD SPEC,BLUISH GRAY,TRIM1#
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-09167×2i199511-199606
58530LCLIP, FLOOR CARPET, CENTER
main90467-07121-B0×2i199511-199709
BLUISH GRAY,TRIM1#
main90467-07121-B2×2i199709-200008
SHADOW GRAY,TRIM1#
58533ACOVER, FLOOR CARPET, CENTER RH
main58533-42010-B0i199511-199709
BLUISH GRAY,TRIM1#
main58533-42010-B1i199709
SHADOW GRAY,TRIM1#
58534DCOVER, FLOOR CARPET, CENTER LH
main58534-42010-B0i199511-199703
BLUISH GRAY,TRIM1#
main58534-42011-B0i199703-199709
BLUISH GRAY,TRIM1#
main58534-42011-B1i199709
SHADOW GRAY,TRIM1#
58570CCARPET ASSY, REAR FLOOR
main58571-42010-B1i199511-199608
BLUISH GRAY,TRIM1#
main58571-42011-B1i199608-200008
BLUISH GRAY,TRIM1#
main58571-42020-B1i199511-199608
BLUISH GRAY,TRIM1#
main58571-42021-B1i199608-200008
BLUISH GRAY,TRIM1#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-42010-B0i199511-199709
BLUISH GRAY,TRIM1#
main67913-42020-B0i199511-199709
BLUISH GRAY,TRIM1#
main67913-42030-B0i199709-200008
SHADOW GRAY,TRIM1#
main67913-42040-B0i199709-200008
SHADOW GRAY,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-42010-B0i199511-199709
BLUISH GRAY,TRIM1#
main67914-42020-B0i199511-199709
BLUISH GRAY,TRIM1#
main67914-42030-B0i199709-200008
SHADOW GRAY,TRIM1#
main67914-42040-B0i199709-200008
SHADOW GRAY,TRIM1#
9046805112
main90468-05112
9046805123
main90468-05123
9090189007
main90901-89007
9354055020
main93540-55020

13 parts on this diagram · 2 diagrams in section
