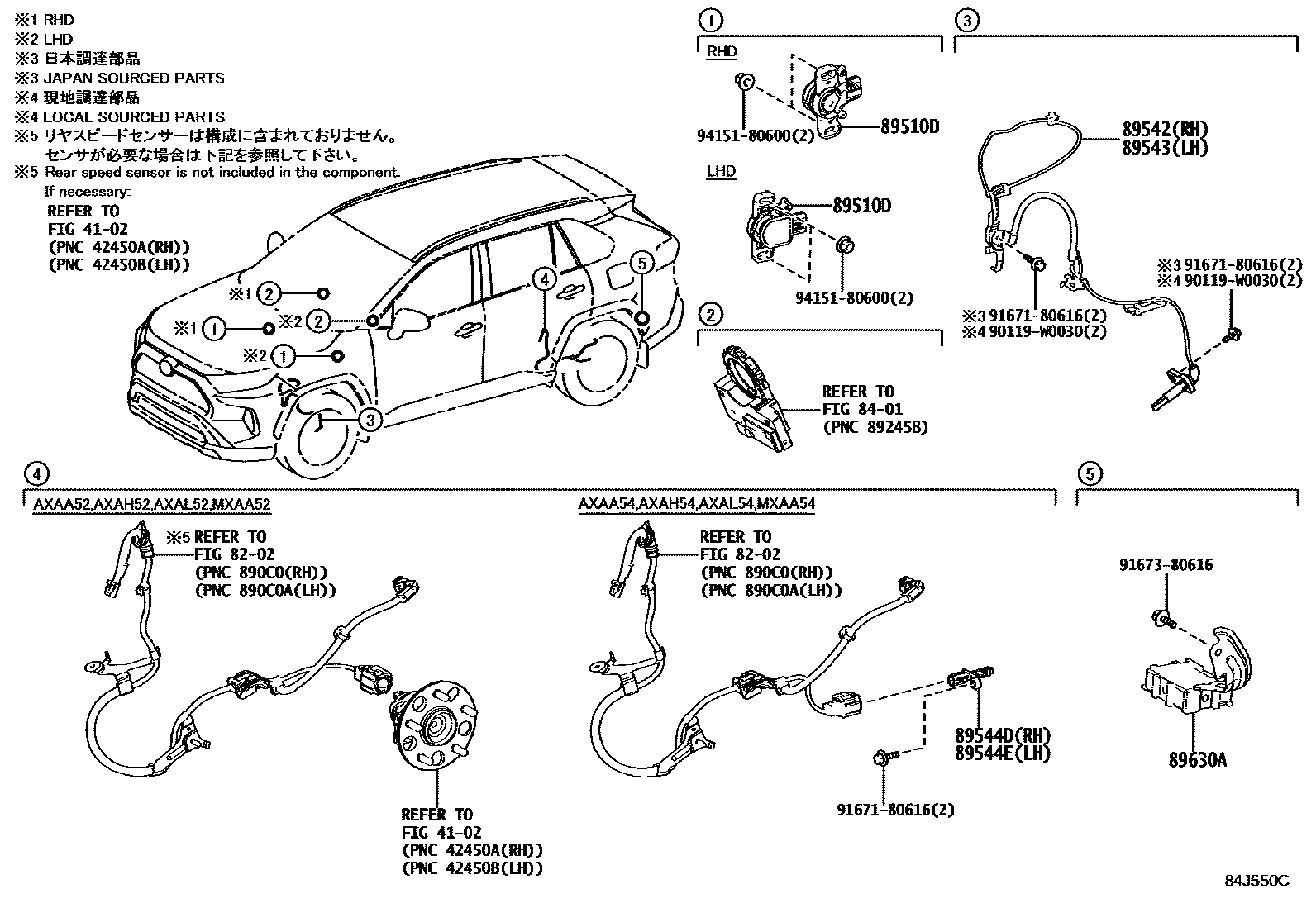

ABS & VSC

0001 1W/O(DYNAMIC TORQUE VECTORING)0002 1W(DYNAMIC TORQUE VECTORING)

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iAXAH54,AXAL5#..RHD;AXAH52..RHD..(M,X);AXAH52..RHD..G..(ARL,EUR)201811-202007

main89510-33030iAXAH5#,AXAL5#..LHD202008-202112

main89510-42010iAXAH54..X..EUR202310-202410

main89510-42020iAXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

main89510-47030iAXAH5#,AXAL5#..RHD202210-202310

main89510-47040iAXAH5#,AXAL5#..LHD202112-202210

89542SENSOR, SPEED, FRONT RH

main89542-42070iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210

89543SENSOR, SPEED, FRONT LH

main89543-42070iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

89544DSENSOR, SKID CONTROL, REAR RH

main89544-06130iAXAA54,AXAL54..JPP;AXAH54..LHD..(G,M,P,V)..EUR;AXAH54,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202501

main89544-0R020iAXAL54..ARL;AXAA54..G..ARL;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;AXAH54,AXAL54..RHD..X..EUR202008-202111

89544ESENSOR, SKID CONTROL, REAR LH

main89544-06130iAXAA54,AXAL54..JPP;AXAH54..LHD..(G,M,P,V)..EUR;AXAH54,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202501

main89544-0R020iAXAH54..RUS;MXAA54..6F..G..GEN201811-201909

89630ACOMPUTER ASSY, 4WD

main89630-42120iAXAA54,MXAA54..(M,X)..RUS202008-202203

main89630-42121iAXAA54,MXAA54..(M,X)..(ARL,GCC,GEN)202310

main89630-42130iMXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)201811-201902

MARK=13

main89630-42140iMXAA54..CVT..M..EUR;AXAA54,MXAA54..(ATM,CVT)..(G,V)201902-201906

MARK=06

main89630-42150iAXAA54..G..EUR201907-202004

MARK=09

main89630-42160iMXAA54..CVT..M..EUR;AXAA54,MXAA54..JPP..(ATM,CVT)..(G,V)202008-202009

main89630-42161iAXAA54..G..ARL;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN202009-202111

90119W0030

main90119-W0030

9167180616

main91671-80616

9167380616

main91673-80616

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
