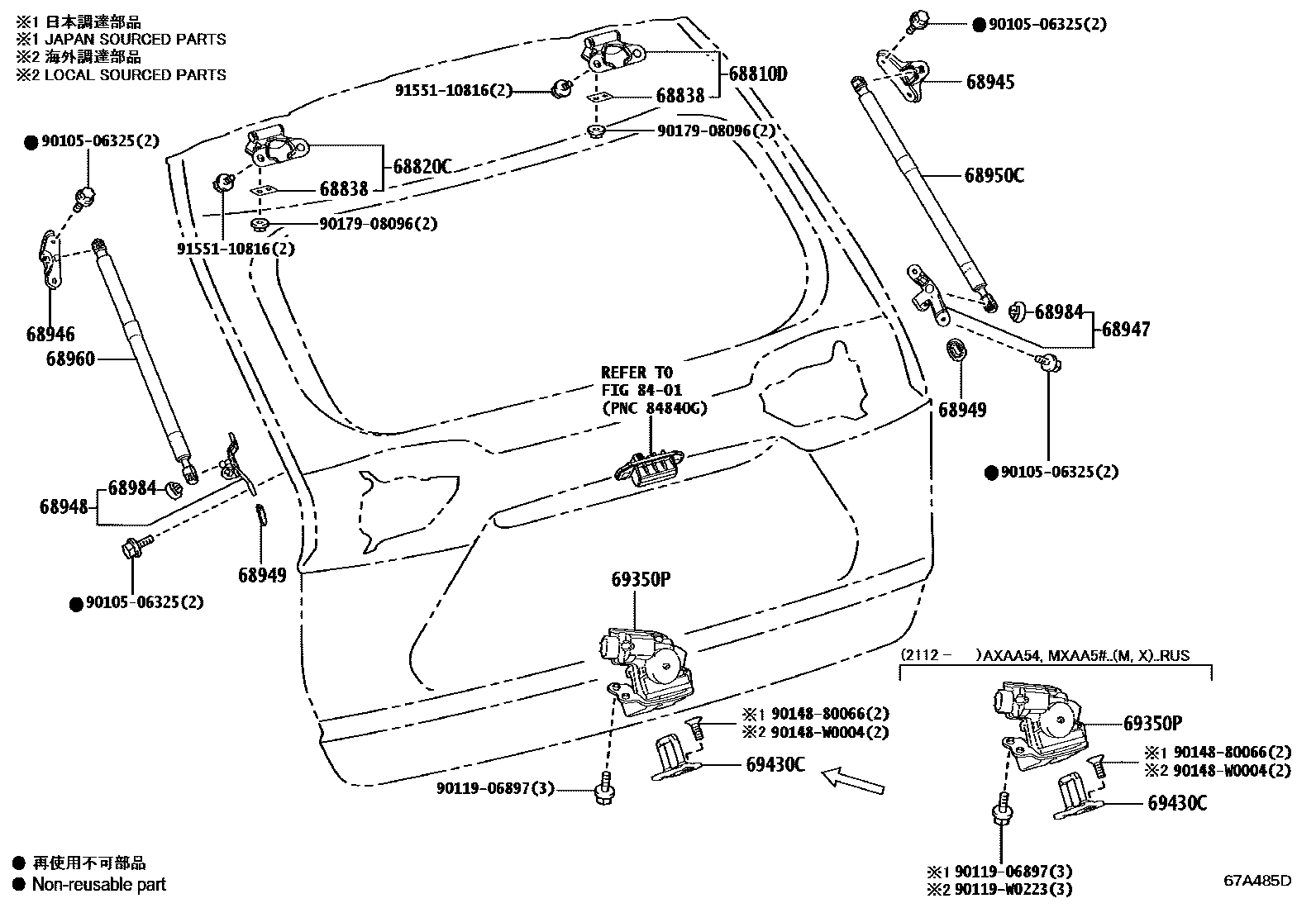

BACK DOOR LOCK & HINGE
68810DHINGE ASSY, BACK DOOR, RH
main68810-42100iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202011-202111
main68810-42101iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
68820CHINGE ASSY, BACK DOOR, LH
main68810-42100iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202011-202205
main68810-42101iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
68838PAD, BACK DOOR HINGE, NO.1
T=1.0
main68838-42020×2iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
T=1.5
T=2.0
T=1.0
T=1.5
T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
main68945-42030supersedes 68945-42050iAXAH54..RUS;MXAA52..6F..G..SA; MXAA54..6F..G..GEN201811-201909
POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK
POWER DOOR LOCK-AUTO LOCK(SPEED) & *KPBD; POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68946-42031iAXAA5#,AXAH54..(M,V)..GCC; AXAA54,AXAH54..M..GCC; AXAA54,AXAH54..V..(ARL,EUR);AXAL54,MXAA54..(G,P,V)..EUR;AXAA5#,AXAL52..(G,P)..(EUR,GCC,SA);AXAH5#,MXAA52..(G,P)..(ARL,EUR,GCC,SA); AXAA54..RHD..G..GEN; AXAH52..G..GEN; AXAH52..LHD..(G,M)..GEN; AXAH54..(G,P)..GEN;AXAA54..LHD..V..GEN;AXAA52..LHD..G..GEN;AXAH54..LHD..M..GEN;MXAA52..LHD..M..EUR;MXAA54..JPP..LHD..6F..M;AXAA54,MXAA52..(G,M)..GEN;MXAA54..CVT..(G,M,V)..GEN;AXAH52..LHD..(G,M,P)..GEN;AXAA54,AXAH52..(M,V)..(EUR,GCC);AXAA52,AXAL5#..M..(EUR,GCC,GEN);AXAH54,MXAA54..CVT..M..(EUR,GCC); AXAH54..LHD..G..GEN;MXAA54..LHD..V..GEN;AXAH52,MXAA52..LHD..(G,P)..GEN; AXAH54..LHD..M..EUR; AXAH54..P..GEN; MXAA52..LHD..G..GEN;MXAA54..LHD..V..GEN;AXAH54..LHD..(G,M)..GEN;AXAH52..LHD..(G,M,P)..GEN; MXAA54..(G,V)..GEN;MXAA52..LHD..M..EUR;AXAA54..LHD..V..GEN;AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA52,AXAH52..LHD..(G,P)..GEN;AXAA54,AXAH54,MXAA52..(G,P)..GEN202206-202210
BRAZIL SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); BRAZIL SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; IRAN SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); IRAN SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; JORDAN SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; LEBANON SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; MALAYSIA SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); MALAYSIA SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; OTHER LATIN-NCAP COUNTRY&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); OTHER LATIN-NCAP COUNTRY&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; PHILIPPINES SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); PHILIPPINES SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; QATAR SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; SAUDI ARABIA SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; TAIWAN SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); TAIWAN SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK; U.A.E. SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
main68948-42030iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
68949SEAL, BACK DOOR STAY BRACKET
main68949-42010×2iMXAA52..GCC,GEN;AXAH5#..(G,P)..GEN;AXAA52,AXAL5#..M,X;MXAA54..GCC,GEN,SA;AXAH54..LHD..M..EUR;AXAA54..(M,V,X)..GCC;AXAH52..LHD..(M,X)..EUR;AXAA54,AXAH54..V..(GEN,SA);AXAA54..(G,M,X)..(ARL,GEN);AXAH5#..(M,X)..(ARL,GCC,GEN);MXAA5#..JPP..(M,X)..(ARL,RUS)202310
68950CSTAY ASSY, BACK DOOR, RH
main68950-0R060iAXAH54..M,X;AXAH54..V..SA;MXAA54..GEN,SA;AXAH52..(G,M,P)..GEN;MXAA5#..JPP..(M,X)..(ARL,RUS);AXAH52,AXAL5#..(M,X)..(ARL,EUR);AXAA54,AXAH54,MXAA52..(G,M,V,X)..GEN; AXAH54..P..GEN202210-202310
BRAZIL SPEC; OTHER LATIN-NCAP COUNTRY
main68950-0WF10supersedes 68950-0R060iAXAH52..(G,M)..GEN; AXAH54..(M,X)..GCC; AXAH54..LHD..(M,X)..EUR; MXAA5#..GCC;AXAH54..P..GEN;AXAH52..X..(GCC,GEN); MXAA54..LHD..V;AXAH52..(G,M,P)..GEN;AXAH54,MXAA52..LHD..CVT..(G,X)..GEN202210-202310
EXCEPT WVTA COUNTRY&IRAN SPEC; JORDAN SPEC; LEBANON SPEC; PHILIPPINES SPEC; QATAR SPEC; SAUDI ARABIA SPEC; TAIWAN SPEC; U.A.E. SPEC
JORDAN SPEC; LEBANON SPEC; QATAR SPEC; SAUDI ARABIA SPEC; U.A.E. SPEC
68960STAY ASSY, BACK DOOR, LH
main68960-0WF00supersedes 68960-0R060iAXAH52..(G,P)..GEN;MXAA54..LHD..V..GEN;AXAH54,MXAA52..LHD..CVT..(G,X)..GEN; AXAH52..LHD..(G,M)..GEN; AXAH54..(M,X)..GCC; MXAA52..CVT..X..EUR;AXAH54..LHD..(M,X)..EUR; MXAA52..GCC;AXAH54..P..GEN;MXAA52..RHD..M..EUR;AXAH52..X..(GCC,GEN)202008-202210
IRAN SPEC; JORDAN SPEC; LEBANON SPEC; PHILIPPINES SPEC; QATAR SPEC; SAUDI ARABIA SPEC; TAIWAN SPEC; U.A.E. SPEC
JORDAN SPEC; LEBANON SPEC; QATAR SPEC; U.A.E. SPEC
68984STOPPER, BACK DOOR STAY
main68984-42030×2iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-42080supersedes 69350-42090iAXAH5#,AXAL5#,MXAA5#..M..EUR;AXAA5#,AXAH5#,MXAA5#..(G,V)..GEN; AXAH5#,MXAA54..G..(GCC,GEN);AXAA5#,MXAA52..(G,M,V)..(GCC,GEN);AXAA54,AXAL5#,MXAA52..M..(ARL,EUR);AXAH5#,MXAA54..(M,V)..(ARL,EUR,GCC,GEN); MXAA54..G..EUR;AXAA54,AXAH5#,AXAL5#,MXAA52..(G,V)..(ARL,EUR,SA)202008-202009
POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK
main69350-42090iMXAA52..GCC,GEN;AXAH5#..(G,P)..GEN;MXAA54..GCC,GEN,SA;AXAA54..(M,V,X)..GCC;AXAA52,AXAH5#,AXAL5#..M,X;AXAA54,AXAH54..V..(GEN,SA);AXAA54..(G,M,X)..(ARL,GEN);MXAA5#..JPP..(M,X)..(ARL,RUS)202210-202310
KEY PLATE-SMART ENTRY(PUSH START)2
main69350-42101iAXAA52..RHD;AXAA54..RHD..V..GEN; AXAA54,AXAL5#..G..ARL; AXAL5#..M..ARL;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAH54..RHD..M..GEN;AXAA54..RHD..V..GEN;AXAA52,AXAH52..RHD..GEN202010-202111
POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK
main69350-42110iAXAA54,AXAH54..V..(ARL,EUR);AXAL54,MXAA54..(G,P,V)..EUR;AXAA5#,AXAL52..(G,P)..(EUR,GCC,SA);AXAH5#,MXAA52..(G,P)..(ARL,EUR,GCC,SA); AXAH54..(G,P)..GEN;AXAA54..LHD..V..GEN;AXAA52..LHD..G..GEN;AXAH54..LHD..M..GEN;MXAA52..LHD..M..EUR;MXAA54..JPP..LHD..6F..M;AXAA54,MXAA52..(G,M)..GEN;MXAA54..CVT..(G,M,V)..GEN;AXAH52..LHD..(G,M,P)..GEN;AXAA54,AXAH52..(M,V)..(EUR,GCC);AXAA52,AXAL5#..M..(EUR,GCC,GEN);AXAH54,MXAA54..CVT..M..(EUR,GCC); MXAA54..(G,V)..GEN;MXAA52..LHD..M..EUR;AXAA54..LHD..V..GEN;AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA52,AXAH52..LHD..(G,P)..GEN;AXAA54,AXAH54,MXAA52..(G,P)..GEN202206-202208
POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK
main69350-42111iAXAA54,AXAH54..V..(ARL,EUR);AXAL54,MXAA54..(G,P,V)..EUR;AXAA5#,AXAL52..(G,P)..(EUR,GCC,SA);AXAH5#,MXAA52..(G,P)..(ARL,EUR,GCC,SA); AXAH54..(G,P)..GEN;AXAA54..LHD..V..GEN;AXAA52..LHD..G..GEN;AXAH54..LHD..M..GEN;MXAA52..LHD..M..EUR;MXAA54..JPP..LHD..6F..M;AXAA54,MXAA52..(G,M)..GEN;MXAA54..CVT..(G,M,V)..GEN;AXAH52..LHD..(G,M,P)..GEN;AXAA54,AXAH52..(M,V)..(EUR,GCC);AXAA52,AXAL5#..M..(EUR,GCC,GEN);AXAH54,MXAA54..CVT..M..(EUR,GCC); MXAA54..(G,V)..GEN;MXAA52..LHD..M..EUR;AXAA54..LHD..V..GEN;AXAH5#,AXAL5#,MXAA54..M..EUR;AXAA52,AXAH52..LHD..(G,P)..GEN;AXAA54,AXAH54,MXAA52..(G,P)..GEN202209-202210
POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD); POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-48030iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
8401SWITCH & RELAY & COMPUTER
9010506325
main90105-06325
9011906897
main90119-06897
90119W0223
main90119-W0223
9014880066
main90148-80066
90148W0004
main90148-W0004
9017908096
main90179-08096
9155110816
main91551-10816
21 parts on this diagram · 2 diagrams in section
