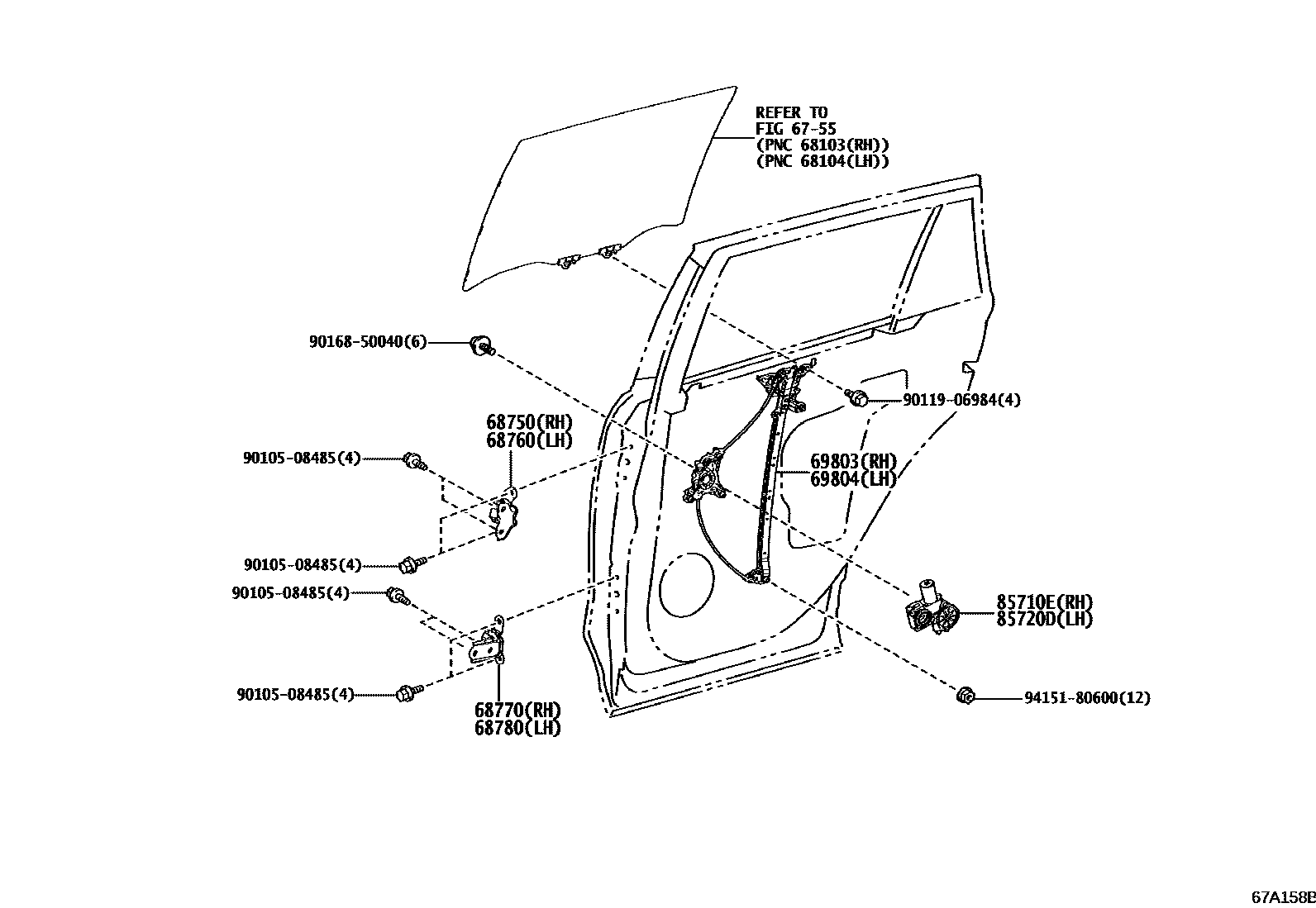

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42060iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

main69803-42061iAXAH52..M,X;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;AXAH54,AXAL5#,MXAA5#..JPP202003-202007

main69803-42062iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

main69830-0R080iAXAA54,MXAA5#..RUS201910-202009

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42060iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

main69804-42061iAXAA54..EUR;AXAH52..RHD..G..GEN202003-202004

main69804-42062iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310

main69840-0R080iAXAA54,MXAA5#..RUS202010-202203

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12540iAXAA54,MXAA5#..RUS202112-202203

main85710-42150iAXAA54,MXAA5#..RUS202008-202112

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12530iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310

main85720-42140iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
