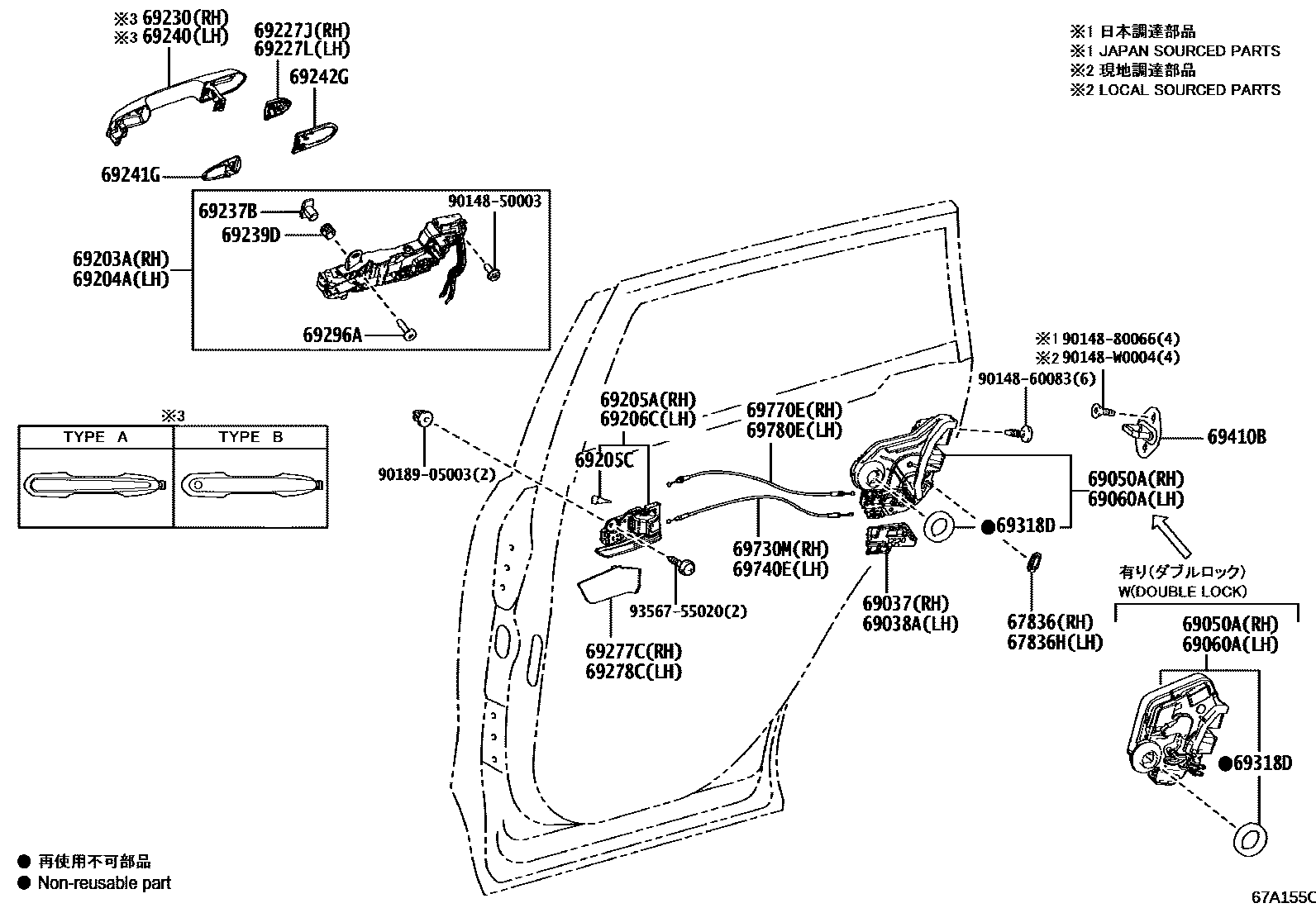

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-42060iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(ARL,GCC,GEN,RUS,SA)202310
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-42060iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-15010-C1iAXAA5#,AXAH5#,MXAA5#..X..(GCC,GEN); AXAH54,MXAA52..X..ARL;AXAH52,AXAL5#..X..(ARL,EUR)202310
BLACK,TRIM2#; BLACK,TRIM2#,4#
main69205-33140-C0iAXAA54,AXAH54,MXAA54..V..(ARL,GCC,GEN,SA); AXAH54..G;AXAH54..M..(ARL,GCC);AXAH52,AXAL5#..G..EUR;AXAA5#,AXAH52,MXAA5#..(G,M)..(ARL,GCC,GEN,SA); AXAH54..P..ARL;MXAA54..JPP..RUS;AXAH52..P..(ARL,GEN);AXAH54..(M,P,V)..(EUR,GEN);AXAH52,AXAL5#..(M,P,V)..EUR202210-202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-15010-C1iAXAA52,AXAH5#..X;MXAA54..JPP..LHD..X;MXAA52..X..(ARL,EUR);AXAA54,AXAL5#..X..(ARL,GCC);AXAA54,MXAA52..LHD..(6F,8FC)..X..GEN201811-202007
BLACK,TRIM2#,4#
main69206-33150-C0iAXAH52,AXAL5#..G;AXAH54..LHD..G..EUR;AXAH5#,MXAA52..M..(GCC,GEN);AXAH54,MXAA52..G..(ARL,GCC,GEN);AXAA5#,MXAA54..(G,M)..(GCC,GEN); AXAH54..V..ARL;AXAA54..(G,V)..(ARL,SA);AXAH54,MXAA52..(G,V)..SA;AXAA54,MXAA54..V..(GCC,GEN,SA); AXAL5#..M,P,V;MXAA54..JPP..RUS;AXAH52..LHD..M..EUR;AXAH52..P..(EUR,GEN);AXAH54..(M,P)..(ARL,GEN);AXAH54..LHD..(M,P,V)..EUR;AXAA54,AXAH52,MXAA52..(M,P)..ARL202310
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69227-30130iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69227-30130iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202210
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69210-42130-A0iAXAA54..G..ARL;MXAA54..G..GCC;AXAA52,AXAL5#..RHD..G..(ARL,GEN); MXAA54..RHD..6F;AXAH5#..RHD..M..GEN202008-202111
DOOR OUTSIDE HANDLE-PLATING,SUPER WHITE 2,040,TYPE A; SUPER WHITE 2,040,TYPE A
main69210-42130-A1iAXAA5#,AXAH5#,MXAA5#..M..GEN; MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA54..G..(ARL,GCC,GEN,SA);AXAA52,AXAH54,AXAL5#,MXAA5#..(ATM,CVT)..G..(ARL,EUR,GCC,GEN,SA)201811-202007
DOOR OUTSIDE HANDLE-PLATING,WHITE PEARL CS.,070,TYPE A; WHITE PEARL CS.,070,TYPE A
main69210-42130-A3iAXAA5#,AXAH5#,MXAA5#..JPP..G..(ARL,GCC,GEN,RUS,SA); AXAA54,AXAH52,MXAA5#..M..GEN; AXAH5#..P..GEN202310
DOOR OUTSIDE HANDLE-PLATING,PLATINUM WHITE PEARL MC.,089 ,2PS,TYPE A; DOOR OUTSIDE HANDLE-PLATING,PLATINUM WHITE PEARL MC.,089,TYPE A; PLATINUM WHITE PEARL MC.,089,TYPE A
main69210-42130-B0iAXAA5#,AXAH5#,MXAA5#..JPP..G..(ARL,GCC,GEN,RUS,SA); AXAA54,AXAH52,MXAA5#..M..GEN; AXAH5#..P..GEN202310
DOOR OUTSIDE HANDLE-PLATING,SILVER ME.,1D6 ,2QY,TYPE A; DOOR OUTSIDE HANDLE-PLATING,SILVER ME.,1D6,TYPE A; SILVER ME.,1D6,TYPE A
main69210-42130-B1iAXAA5#,AXAH5#,MXAA5#..M..GEN; MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA54..G..(ARL,GCC,GEN,SA);AXAA52,AXAH54,AXAL5#,MXAA5#..(ATM,CVT)..G..(ARL,EUR,GCC,GEN,SA)201811-202007
DOOR OUTSIDE HANDLE-PLATING,GRAY ME.,1G3,TYPE A; GRAY ME.,1G3,TYPE A
main69210-42130-C0iAXAA52..LHD..G;MXAA54..G..(EUR,GEN);AXAH5#,MXAA52..JPP..G;AXAA54,AXAL5#..G..(EUR,GCC,GEN,SA); AXAH5#..LHD..M..GEN;MXAA54..CVT..M..GEN;AXAA5#,MXAA52..M..GEN;MXAA54..LHD..6F..M..GEN202008-202210
ATTITUDE BLACK MC.,218,TYPE A; DOOR OUTSIDE HANDLE-PLATING,ATTITUDE BLACK MC.,218,TYPE A
main69210-42130-D0iAXAA5#,AXAH5#,MXAA5#..M..GEN; MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA54..G..(ARL,GCC,GEN,SA);AXAA52,AXAH54,AXAL5#,MXAA5#..(ATM,CVT)..G..(ARL,EUR,GCC,GEN,SA)201811-202007
DOOR OUTSIDE HANDLE-PLATING,RED MC.,3T3,TYPE A; RED MC.,3T3,TYPE A
main69210-42130-G0iAXAA52..LHD..G;MXAA54..G..(EUR,GEN);AXAH5#,MXAA52..JPP..G;AXAA54,AXAL5#..G..(EUR,GCC,GEN,SA); AXAH5#..LHD..M..GEN;MXAA54..CVT..M..GEN;AXAA5#,MXAA52..M..GEN;MXAA54..LHD..6F..M..GEN202008-202210
DOOR OUTSIDE HANDLE-PLATING,URBAN KHAKI,6X3,TYPE A; URBAN KHAKI,6X3,TYPE A
main69210-42130-J0iAXAA52..LHD..G;MXAA54..G..(EUR,GEN);AXAH5#,MXAA52..JPP..G;AXAA54,AXAL5#..G..(EUR,GCC,GEN,SA); AXAH5#..LHD..M..GEN;MXAA54..CVT..M..GEN;AXAA5#,MXAA52..M..GEN;MXAA54..LHD..6F..M..GEN202008-202112
CYAN METALLIC,8W9,TYPE A; DOOR OUTSIDE HANDLE-PLATING,CYAN METALLIC,8W9,TYPE A
main69210-42130-J1iAXAA5#,AXAH5#,AXAL5#..JPP..G;MXAA5#..JPP..G..(ARL,GEN,RUS,SA); AXAA54,AXAH52,MXAA5#..M..GEN202210-202310
DK. BLUE MC.,8X8,TYPE A; DOOR OUTSIDE HANDLE-PLATING,DK. BLUE MC.,8X8,TYPE A
main69210-42130-J5iAXAA5#,AXAH5#,MXAA5#..G..(ARL,GCC,GEN,SA); AXAA54,AXAH52,MXAA5#..M..GEN; AXAH5#..P..GEN202310
DOOR OUTSIDE HANDLE-PLATING,GRAYISH BLUE,2VV ,8W2,TYPE A; DOOR OUTSIDE HANDLE-PLATING,GRAYISH BLUE,8W2,TYPE A; GRAYISH BLUE,8W2,TYPE A
WHITE PEARL CS.,070,TYPE A
SUPER WHITE 2,040,TYPE A
PLATINUM WHITE PEARL MC.,089,TYPE A
SILVER ME.,1D6,TYPE A
GRAY ME.,1G3,TYPE A
SILVER ME.,1F7,TYPE A
ATTITUDE BLACK MC.,218,TYPE A
BLACKISH AGEHA GF.,221,TYPE A
RED MC.,3T3,TYPE A
GRAPHITE ME.,4X7,TYPE A
URBAN KHAKI,6X3,TYPE A
DK. BLUE MC.,8X8,TYPE A
CYAN METALLIC,8W9,TYPE A
SUPER WHITE 2,040,TYPE B
main69211-42080-A1iAXAH54..P;AXAH54..M..EUR;AXAH52..P..(ARL,GEN);AXAH52,AXAL5#..(M,P)..EUR; MXAA52..LHD..6F..GEN;AXAH52..LHD..(M,X)..GEN;AXAH5#,AXAL5#..LHD..X..EUR;AXAA52,AXAH54..LHD..M..GEN;MXAA52..(M,X)..(EUR,GCC,SA);MXAA54..JPP..LHD..6F..(M,X);MXAA52..CVT..(M,X)..(ARL,GEN);AXAA52,AXAH5#..(M,X)..(ARL,GCC);AXAA54,MXAA54..JPP..(ATM,CVT)..(M,X)202008-202210
WHITE PEARL CS.,070 ,2QJ,TYPE B; WHITE PEARL CS.,070,TYPE B
main69211-42080-A3supersedes 69210-42160-A2iAXAA54,MXAA5#..G..RUS; AXAA54,MXAA54..(ATM,CVT)..M..RUS; MXAA54..X..RUS;MXAA54..6F..RUS;MXAA52..(M,X)..RUS202010-202203
ACTIVE SAFETY PACKAGE-WITHOUT,PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS
main69211-42080-B0iAXAH52,AXAL5#..P;AXAH54..LHD..P..EUR;AXAH54..P..(ARL,GEN); AXAL5#..G,M,X;AXAH52..(G,X)..EUR;AXAH52..LHD..M..EUR;AXAH54..LHD..(G,M)..EUR;AXAA5#,AXAH5#,MXAA5#..JPP..(M,X)..(ARL,GCC,GEN,RUS)202310
SILVER ME.,1D6 ,2QY,TYPE B; SILVER ME.,1D6,TYPE B
main69211-42080-B1iAXAH52,AXAL5#..P;AXAH54..LHD..P..EUR;AXAH54..P..(ARL,GEN); AXAH54..LHD..V;AXAH54..V..(ARL,SA);AXAA54,AXAL54,MXAA54..V..(ARL,EUR,SA); AXAL5#..G,M,X;AXAA54..LHD..V;AXAH52..(G,X)..EUR;AXAH52..LHD..M..EUR;AXAH54..LHD..(G,M)..EUR;MXAA54..JPP..(M,V,X)..(GCC,GEN,RUS);AXAA5#,AXAH5#,MXAA52..(M,X)..(ARL,GCC,GEN)202310
GRAY ME.,1G3 ,2QX,TYPE B; GRAY ME.,1G3 ,2QZ,TYPE B; GRAY ME.,1G3,TYPE B
main69211-42080-B2supersedes 69210-42160-B2iAXAA54,MXAA5#..(M,X)..RUS; AXAA54,MXAA5#..G..RUS202010-202203
ACTIVE SAFETY PACKAGE-WITHOUT,SILVER ME.,1F7; SILVER ME.,1F7
main69211-42080-C0supersedes 69210-42160-C0iAXAA54,AXAH54,AXAL54,MXAA54..V..(ARL,EUR,SA); AXAH5#..M,X;AXAA54..LHD..V;AXAH5#..P..EUR;AXAA5#,AXAL5#..JPP..(M,P,X);MXAA5#..JPP..(M,V,X)..(ARL,GCC,GEN,RUS)202210-202310
ATTITUDE BLACK MC.,218 ,2QW,TYPE B; ATTITUDE BLACK MC.,218,TYPE B
BLACKISH AGEHA GF.,221,TYPE B
main69211-42080-D0iAXAA52..X..GEN;MXAA54..V..GCC;AXAL5#..(M,X)..ARL;AXAA54..RHD..V..GEN;AXAH5#..RHD..M..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
RED MC.,3T3,TYPE B
EMOTIONAL RED 2,2SC ,3U5,TYPE B
main69211-42080-D5supersedes 69210-42160-D1iAXAA54,MXAA5#..G..RUS; AXAA54,MXAA54..(ATM,CVT)..M..RUS; MXAA54..X..RUS;MXAA54..6F..RUS;MXAA52..(M,X)..RUS202104-202203
ACTIVE SAFETY PACKAGE-WITHOUT,RED M.M.,3R3; RED M.M.,2QL ,3R3; RED M.M.,3R3
GRAPHITE ME.,4X7,TYPE B
main69211-42080-G0iAXAH54..RHD..V..EUR; AXAH54..X..EUR;AXAH52..RHD..M..EUR;AXAH54..RHD..(G,M)..EUR202310-202410
URBAN KHAKI,2QU ,6X3,TYPE B; URBAN KHAKI,6X3,TYPE B
main69211-42080-J0supersedes 69210-42160-J1iAXAA54..LHD..V..GEN; AXAA54..V..GCC;AXAA54..RHD..(M,V,X);AXAA54..LHD..(M,X)..(GCC,GEN);AXAA52,AXAH5#,AXAL5#,MXAA5#..(M,V,X)..(ARL,EUR,GCC,GEN,SA)201811-202007
CYAN METALLIC,2QV ,8W9,TYPE B; CYAN METALLIC,8W9,TYPE B
main69211-42080-J1iAXAA5#,AXAH5#,AXAL5#..JPP..(M,X);MXAA5#..JPP..(M,X)..(ARL,GCC,GEN,RUS); AXAH5#,AXAL5#..P..EUR202210-202310
DK. BLUE MC.,2RA ,8X8,TYPE B; DK. BLUE MC.,8X8,TYPE B
main69211-42080-J3supersedes 69210-42160-J2iAXAA54,MXAA5#..(M,X)..RUS; AXAA54,MXAA5#..G..RUS202010-202203
ACTIVE SAFETY PACKAGE-WITHOUT,DK.BLUE M.M.,8W7; DK.BLUE M.M.,8W7
main69211-42080-J5iAXAA54..LHD..V..GEN;MXAA54..V..(GEN,SA);AXAA54,AXAH54..V..(ARL,GCC,SA); AXAH5#..P..(ARL,GEN); MXAA52..X..(GCC,SA);MXAA5#..LHD..6F..GEN;AXAH52..LHD..(M,X)..GEN;AXAA52,AXAH54..LHD..M..GEN;MXAA52..CVT..(M,X)..(ARL,GEN);AXAA52,AXAH5#..(M,X)..(ARL,GCC);AXAA54,MXAA54..(ATM,CVT)..(M,X)..(ARL,GCC,GEN)202112-202210
GRAYISH BLUE,2TU ,8W2,TYPE B; GRAYISH BLUE,2VV ,8W2,TYPE B; GRAYISH BLUE,8W2,TYPE B
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
main69239-47010×2iMXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA54..JPP..CVT..G;AXAH52..G..(ARL,EUR);AXAA5#..ARL,GCC,GEN,SA;MXAA52..JPP..6F..(M,X);AXAH52,MXAA54..JPP..(M,V,X);AXAH54,AXAL5#,MXAA52..CVT..(ARL,EUR,GCC,GEN,SA)201811-202007
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69210-42130-A0iAXAA54..G..ARL;MXAA54..G..GCC;AXAA52,AXAL5#..RHD..G..(ARL,GEN); MXAA54..RHD..6F;AXAH5#..RHD..M..GEN202008-202111
DOOR OUTSIDE HANDLE-PLATING,SUPER WHITE 2,040,TYPE A; SUPER WHITE 2,040,TYPE A
main69210-42130-A1iAXAA5#,AXAH5#,MXAA5#..M..GEN; MXAA5#..6F..G..EUR;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAA54..G..(ARL,GCC,GEN,SA);AXAA52,AXAH54,AXAL5#,MXAA5#..(ATM,CVT)..G..(ARL,EUR,GCC,GEN,SA)201811-202007
DOOR OUTSIDE HANDLE-PLATING,WHITE PEARL CS.,070,TYPE A; WHITE PEARL CS.,070,TYPE A
main69210-42130-A3iAXAA5#,AXAH5#,AXAL5#..JPP..G;MXAA5#..JPP..G..(ARL,GEN,RUS,SA); AXAA54,AXAH52,MXAA5#..M..GEN; AXAH5#..P..GEN202210-202310
DOOR OUTSIDE HANDLE-PLATING,PLATINUM WHITE PEARL MC.,089 ,2PS,TYPE A; DOOR OUTSIDE HANDLE-PLATING,PLATINUM WHITE PEARL MC.,089,TYPE A; PLATINUM WHITE PEARL MC.,089,TYPE A
main69210-42130-B0iAXAA52..LHD..G;MXAA54..G..(EUR,GEN);AXAH5#,MXAA52..JPP..G;AXAA54,AXAL5#..G..(EUR,GCC,GEN,SA); AXAH5#..LHD..M..GEN;MXAA54..CVT..M..GEN;AXAA5#,MXAA52..M..GEN;MXAA54..LHD..6F..M..GEN202008-202210
DOOR OUTSIDE HANDLE-PLATING,SILVER ME.,1D6,TYPE A; SILVER ME.,1D6,TYPE A
main69210-42130-B1iAXAA5#,AXAH5#,AXAL5#..JPP..G;MXAA5#..JPP..G..(ARL,GEN,RUS,SA); AXAA54,AXAH52,MXAA5#..M..GEN; AXAH5#..P..GEN202210-202310
DOOR OUTSIDE HANDLE-PLATING,GRAY ME.,1G3 ,2QZ,TYPE A; DOOR OUTSIDE HANDLE-PLATING,GRAY ME.,1G3,TYPE A; GRAY ME.,1G3,TYPE A
ATTITUDE BLACK MC.,218,TYPE A
RED MC.,3T3,TYPE A
URBAN KHAKI,6X3,TYPE A
CYAN METALLIC,8W9,TYPE A
DK. BLUE MC.,8X8,TYPE A
main69210-42130-J5iAXAA5#,AXAH5#,MXAA5#..G..(ARL,GCC,GEN,SA); AXAA54,AXAH52,MXAA5#..M..GEN; AXAH5#..P..GEN202310
DOOR OUTSIDE HANDLE-PLATING,GRAYISH BLUE,2VV ,8W2,TYPE A; DOOR OUTSIDE HANDLE-PLATING,GRAYISH BLUE,8W2,TYPE A; GRAYISH BLUE,8W2,TYPE A
WHITE PEARL CS.,070,TYPE A
SUPER WHITE 2,040,TYPE A
PLATINUM WHITE PEARL MC.,089,TYPE A
SILVER ME.,1D6,TYPE A
GRAY ME.,1G3,TYPE A
SILVER ME.,1F7,TYPE A
ATTITUDE BLACK MC.,218,TYPE A
BLACKISH AGEHA GF.,221,TYPE A
RED MC.,3T3,TYPE A
GRAPHITE ME.,4X7,TYPE A
URBAN KHAKI,6X3,TYPE A
DK. BLUE MC.,8X8,TYPE A
CYAN METALLIC,8W9,TYPE A
SUPER WHITE 2,040,TYPE B
main69211-42080-A1iAXAA52..X..GEN;AXAL5#..(M,X)..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR;MXAA5#..RHD..6F..(ARL,GEN)202008-202111
WHITE PEARL CS.,070,TYPE B
main69211-42080-A3supersedes 69210-42160-A2iAXAA54,MXAA5#..G..RUS; AXAA54,MXAA54..(ATM,CVT)..M..RUS; MXAA54..X..RUS;MXAA54..6F..RUS;MXAA52..(M,X)..RUS202010-202203
ACTIVE SAFETY PACKAGE-WITHOUT,PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS
main69211-42080-B0iAXAA5#,AXAH5#,AXAL5#..JPP..(M,X);MXAA5#..JPP..(M,X)..(ARL,GCC,GEN,RUS); AXAH5#,AXAL5#..P202210-202310
SILVER ME.,1D6 ,2QY,TYPE B; SILVER ME.,1D6,TYPE B
main69211-42080-B1iAXAH54..RHD..P..EUR; AXAH54..RHD..V..EUR; AXAH54..X..EUR;AXAH52..RHD..M..EUR;AXAH54..RHD..(G,M)..EUR202310-202410
GRAY ME.,1G3 ,2QX,TYPE B; GRAY ME.,1G3 ,2QZ,TYPE B; GRAY ME.,1G3,TYPE B
main69211-42080-B2supersedes 69210-42160-B2iAXAA54,MXAA5#..(M,X)..RUS; AXAA54,MXAA5#..G..RUS202010-202203
ACTIVE SAFETY PACKAGE-WITHOUT,SILVER ME.,1F7; SILVER ME.,1F7
main69211-42080-C0supersedes 69210-42160-C0iAXAA54..LHD..V..GEN; AXAA54..V..GCC;AXAA54..RHD..(M,V,X);AXAA54..LHD..(M,X)..(GCC,GEN);AXAA52,AXAH5#,AXAL5#,MXAA5#..(M,V,X)..(ARL,EUR,GCC,GEN,SA)201811-202007
ATTITUDE BLACK MC.,218 ,2QW,TYPE B; ATTITUDE BLACK MC.,218,TYPE B
BLACKISH AGEHA GF.,221,TYPE B
RED MC.,3T3,TYPE B
EMOTIONAL RED 2,2SC ,3U5,TYPE B
main69211-42080-D5supersedes 69210-42160-D1iAXAA54,MXAA5#..G..RUS; AXAA54,MXAA54..(ATM,CVT)..M..RUS; MXAA54..X..RUS;MXAA54..6F..RUS;MXAA52..(M,X)..RUS202104-202203
ACTIVE SAFETY PACKAGE-WITHOUT,RED M.M.,3R3; RED M.M.,2QL ,3R3; RED M.M.,3R3
GRAPHITE ME.,4X7,TYPE B
main69211-42080-G0iAXAA54,AXAH54,AXAL54,MXAA54..V..(ARL,EUR,SA); AXAA54..LHD..V;AXAA5#,AXAH5#,AXAL5#..JPP..(M,X);MXAA5#..JPP..(M,V,X)..(ARL,GCC,GEN,RUS)202210-202310
URBAN KHAKI,2QU ,6X3,TYPE B; URBAN KHAKI,6X3,TYPE B
main69211-42080-J0supersedes 69210-42160-J1iAXAA54..LHD..V..GEN; AXAA54..V..GCC;AXAA54..RHD..(M,V,X);AXAA54..LHD..(M,X)..(GCC,GEN);AXAA52,AXAH5#,AXAL5#,MXAA5#..(M,V,X)..(ARL,EUR,GCC,GEN,SA)201811-202007
CYAN METALLIC,2QV ,8W9,TYPE B; CYAN METALLIC,8W9,TYPE B
main69211-42080-J1iAXAA52..X..GEN;AXAL5#..(M,X)..ARL;AXAH5#..RHD..M..GEN;AXAH5#,AXAL5#..RHD..X..EUR;MXAA5#..RHD..6F..(ARL,GEN)202008-202111
DK. BLUE MC.,8X8,TYPE B
main69211-42080-J3supersedes 69210-42160-J2iAXAA54,MXAA5#..(M,X)..RUS; AXAA54,MXAA5#..G..RUS202010-202203
ACTIVE SAFETY PACKAGE-WITHOUT,DK.BLUE M.M.,8W7; DK.BLUE M.M.,8W7
main69211-42080-J5iAXAA54,AXAH54,MXAA54..V..(ARL,SA); AXAA54..LHD..V;MXAA54..JPP..(M,V,X)..(GCC,GEN,RUS);AXAA5#,AXAH5#,MXAA52..(M,X)..(ARL,GCC,GEN); AXAH5#..P..(ARL,GEN)202210-202310
GRAYISH BLUE,2TU ,8W2,TYPE B; GRAYISH BLUE,2VV ,8W2,TYPE B; GRAYISH BLUE,8W2,TYPE B
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
main69277-42010-C0iMXAA52..X..(ARL,GCC,GEN);AXAA5#,AXAH5#,AXAL5#..JPP;MXAA52..(G,M)..(ARL,GEN,SA);MXAA54..JPP..(GCC,GEN,RUS,SA)202210-202310
BLACK
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
main69278-42010-C0iAXAH54..X..GCC;AXAH5#,MXAA52..RHD..X;MXAA52..LHD..6F..X..GEN;AXAA5#,MXAA54..(V,X)..(ARL,GCC,GEN); MXAA52..6F..EUR;MXAA52..6F..M..GEN;MXAA54..6F..G..EUR;MXAA54..JPP..CVT..G;AXAH52..LHD..G..GEN;AXAH52..G..(ARL,EUR);AXAH52,MXAA54..JPP..M;AXAA5#..(G,M)..(ARL,GCC,GEN,SA);AXAH5#,MXAA52..LHD..CVT..X..(EUR,GEN);AXAH54,MXAA52..CVT..(G,M)..(ARL,EUR,GCC,GEN,SA)201811-202007
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#
69296ASCREW, DOOR INSIDE HANDLE
main69296-30010×2iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202008-202202
main90148-50006×2iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH5#..X..(ARL,GCC,GEN);AXAH5#,AXAL5#..LHD..X..EUR;MXAA54..(G,V)..(EUR,GEN,SA);MXAA54..JPP..LHD..6F..(M,X);AXAA54..(G,M,X)..(GCC,GEN,SA);AXAA52,AXAH52..LHD..(G,M,P)..GEN;AXAH5#..(G,M,P,V)..(ARL,EUR,GCC,SA);AXAA52,MXAA52..(6F,8FC)..(EUR,GCC,SA)202203-202210
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
main69730-42050iAXAH52..X;AXAL5#..LHD;MXAA52..X..ARL;AXAH54..X..(ARL,EUR);AXAH52..LHD..(G,M,P);AXAH54..LHD..(G,M,P,V)..EUR;AXAA5#,AXAH54,MXAA5#..JPP..(GCC,GEN,RUS)202210-202310
main69730-42060iAXAA54,AXAH54,MXAA52..RHD..G..GEN; AXAH5#,AXAL5#..LHD..(G,M,P,V)..EUR; MXAA52..(G,M)..(ARL,SA);AXAA54,AXAH5#,AXAL5#,MXAA54..RHD..(G,M,P,V)..(ARL,EUR,SA)202210-202310
ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO)); ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
main69730-42060iAXAA54,AXAH54,MXAA52..RHD..G..GEN; AXAA54..(M,V)..ARL;MXAA52..RHD..(G,M)..(ARL,EUR);AXAH5#..RHD..(G,M,P,V)..(ARL,EUR,SA);AXAA54,AXAL5#,MXAA54..RHD..(G,M,P,V)..(EUR,SA); AXAH5#,AXAL5#,MXAA5#..LHD..(G,M,P,V)..EUR202008-202210
ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO)); ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
main69770-42110iAXAH52..X;AXAL5#..LHD;AXAH52..LHD..(G,M,P);AXAH54,MXAA52..X..ARL;AXAH54..LHD..(G,M,P,V)..EUR;AXAA5#,AXAH54,MXAA5#..JPP..(GCC,GEN,RUS)202310
main69770-42120iAXAA54..G..ARL;AXAL5#..(G,M)..ARL;AXAH5#,AXAL5#..RHD..X..EUR; AXAH54..RHD..M..GEN;AXAA52,MXAA54..RHD..(6F,8FC)202008-202111
ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
90148W0004
main90148-W0004
9018905003
main90189-05003
9356755020
main93567-55020
34 parts on this diagram · 1 diagram in section
