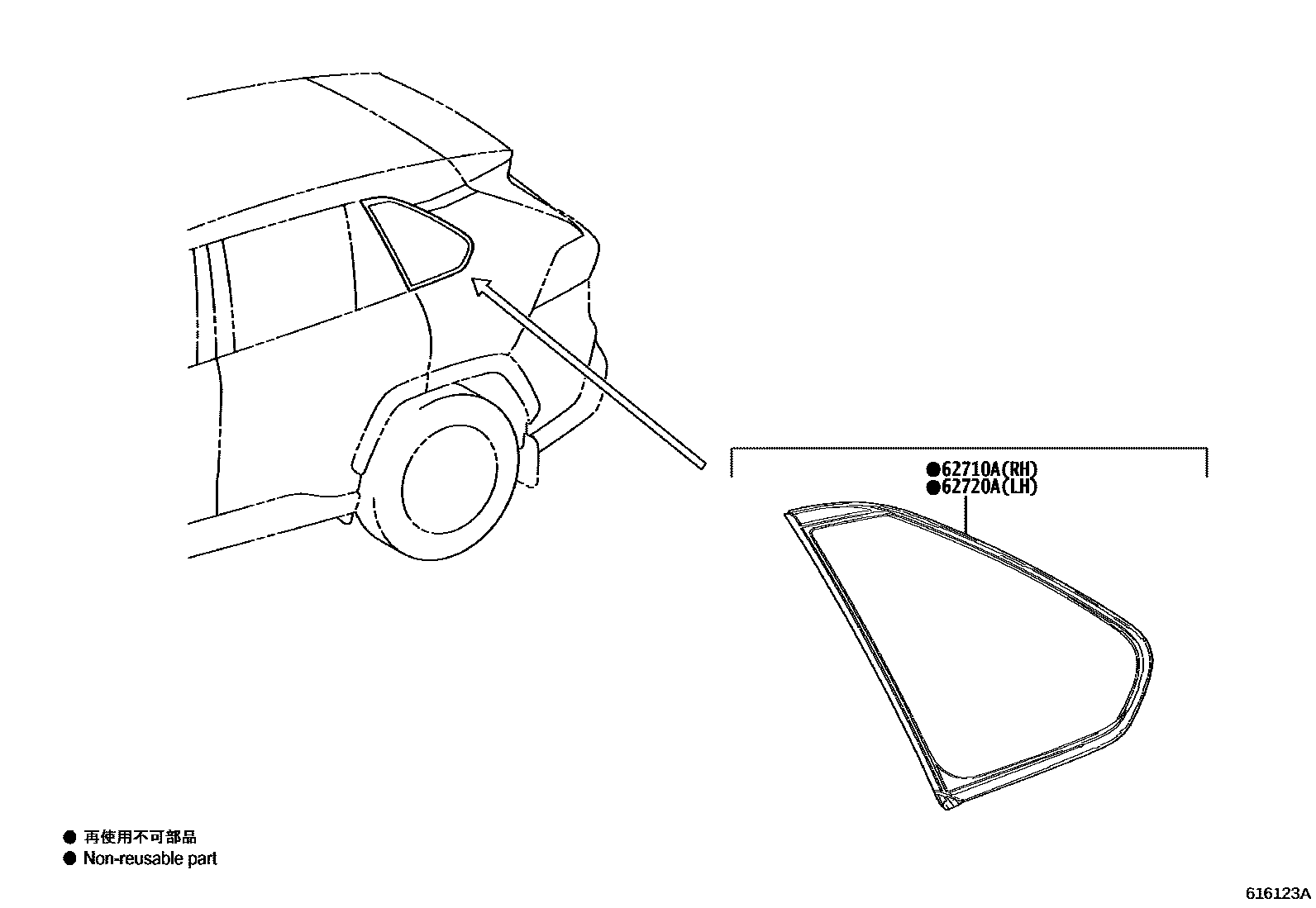

SIDE WINDOW
62710AWINDOW ASSY, QUARTER, RH
main62710-42350supersedes 62710-42360iAXAA52..RHD; AXAA52..X..GEN;AXAL5#..(M,X)..ARL;MXAA54..(G,V)..GCC;AXAH5#..RHD..M..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5#..RHD..X..EUR202008-202111
REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)
BRAZIL SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & HORN&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)
main62710-42430iAXAA5#..LHD..G..GEN; MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN201811-202007
ECUADOR SPEC; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)
ECUADOR SPEC&REAR SIDE GLASS-REINFORCED(GRAY)
62720AWINDOW ASSY, QUARTER, LH
main62720-42380supersedes 62720-42390iMXAA54..6F..G..EUR;AXAH52..LHD..G..GEN;MXAA52..LHD..G..EUR;AXAA54..LHD..V..GEN;AXAH54..G..(EUR,GEN);AXAA5#,MXAA52..G..GEN;AXAH52,AXAL5#..G..EUR;MXAA54..LHD..CVT..(G,V)..(EUR,GEN); MXAA54..G..GCC;MXAA54..(M,X)..GEN;AXAA5#,AXAH54..(G,V)..GCC;MXAA54..(M,V,X)..(EUR,GCC);AXAA54..(M,X)..(ARL,GCC,GEN);AXAA52,AXAH5#,AXAL5#,MXAA52..(M,X)..(ARL,EUR,GCC,GEN,SA)201811-202007
REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)
main62720-42390supersedes 62720-42380iAXAH52..(G,P)..(EUR,GEN);AXAA54,AXAH52..(G,M,P)..ARL;AXAH54,MXAA5#..JPP..M..(ARL,RUS);MXAA5#..JPP..(G,V)..(ARL,GEN,RUS,SA);AXAA54,AXAH54,AXAL5#..(G,P,V)..(ARL,EUR,GEN,SA); MXAA5#..M..GEN;AXAA54,AXAH5#,AXAL5#..M..(EUR,GEN)202210-202310
REAR SIDE GLASS-REINFORCED(GRAY)
BRAZIL SPEC&ANTI-THEFT SYSTEM-IMMOBILIZER & HORN&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)
main62720-42460iAXAA5#..LHD..G..GEN; MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN201811-202007
ECUADOR SPEC; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED UV-CUT(GREEN)
main62720-42470iAXAA5#..LHD..G..GEN; MXAA54..6F..X;MXAA52..LHD..X..GEN;AXAA5#..LHD..(M,X)..GEN201811-202007
ECUADOR SPEC; ECUADOR SPEC&REAR SIDE GLASS-REINFORCED(GRAY)
2 parts on this diagram · 1 diagram in section
